Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 46034031100 Shift lever col. 65 sx 2001 65 SX 2001	46034031100	US $63.77
2	2 46034020100 Shift rail 2001 2001	46034020100	US $8.72
3	3 46034002100 Shift fork countershaft r/s 2001	46034002100	US $71.01
4	4 46034019100 Shift rail 10x72mm 2001 2001	46034019100	US $20.21
5	5 46034001100 Shift fork main shaft 2001 2001	46034001100	—
6	6 46034012300 Shift roller 65 sx 2001 65 SX 2001	46034012300	US $100.57
7	7 46034019052 Spring shift rail 2001 2001	46034019052	US $0.71
8	8 46034005044 Shift shaft cpl. 2001	46034005044	US $112.98
9	9 50334018100 Shifting Roller 6X8X5,2 2001	50334018100	US $3.04
10	10 46034091100 Spacer washer-set 2001 2001	46034091100	US $2.38
11	11 46034015100 Shift drum locating 60/65 2000 2000	46034015100	US $99.67
12	12 0991060303 Flat head screw din7991-m 6x30 2000	0991060303	US $1.11
13	13 46034002200 Shift fork count. 2.3.gear 2000	46034002200	—
14	14 46034023100 Locking lever spring 2001 2001	46034023100	US $1.63
15	15 46034024100 Locking lever cpl. 65 sx 2002 65 SX 2002	46034024100	US $22.66
16	16 0471100010 Circlip 65 SX 2002	0471100010	US $1.16
17	17 0625618050 Ball bearing 61805 c3 65 SX 2002	0625618050	US $39.98
20	20 0760122050 Shaft seal ring 12x20x5 b 65 SX 2002	0760122050	US $7.16
22	22 46034027000 Needle bearing 12x18x12 2002 2002	46034027000	US $6.73
24	24 46034014000 Return spring 2002	46034014000	US $4.08
25	25 46034009000 Pressure spring slider plate 2002	46034009000	US $2.35
26	26 0015060203 Hh Collar Screw M 6X20 Ws=8 WS=8	0015060203	—
	replacement
26	26 0025060206 Hh collar screw m6x20 tx30 WS=8	0025060206	US $1.97
27	27 0797060003 Tooth Lock Wash. Din6797-A 6,4 WS=8	0797060003	US $0.29

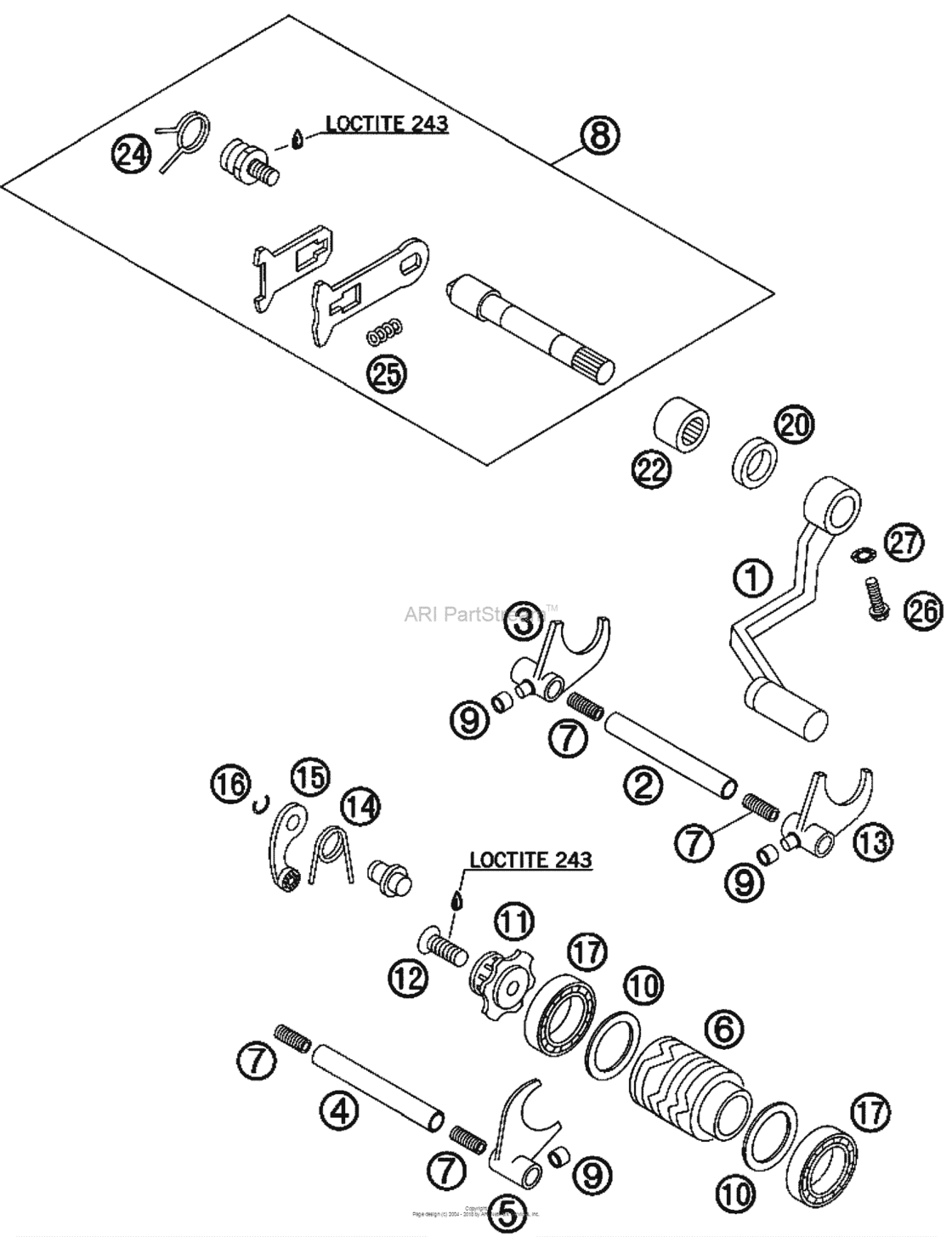

Shifting Mechanism Diagram KTM 65 65 SX US/EU 18105650-940657

Shifting Mechanism Diagram KTM 65 65 SX US/EU 18105650-940657
