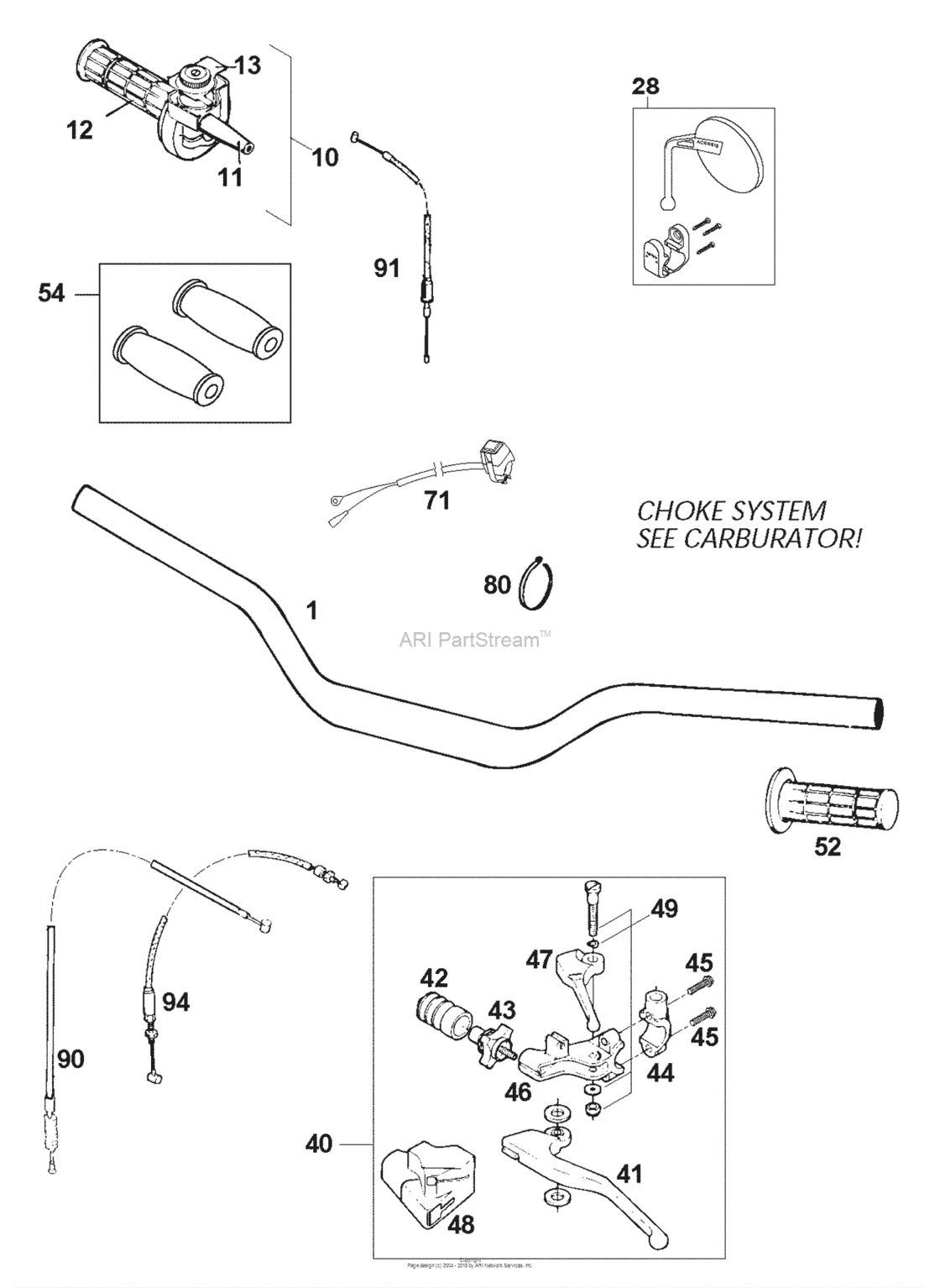

Handlebar, Controls Diagram KTM 660 660 LC4 Rallye
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 LC4 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58302001300 Alu-handlebar sx,sc,advent.'97LC4'94 |
58302001300 |
US $167.13 |
||
|
10
|
10
58002010000
Throttle Twist Grip Cpl.black
LC4'94 |
58002010000 |
— | ||
| replacement | |||||
|
10
|
10
56502010000 Throttle twist grip cpl.blackLC4'94 |
56502010000 |
US $115.41 |
||
|
11
|
11
54002016000 Protection capLC4'94 |
54002016000 |
US $10.71 |
||
|
12
|
12
56502003000
Twist Grip Cover Long Black
LC4'94 |
56502003000 |
— | ||
|
13
|
13
58002011000
Cover with knurled screw
LC4'94 |
58002011000 |
— | ||
|
28
|
28
5021204000030 Mirror l/s black acerbis '97LC4'94 |
5021204000030 |
US $27.08 |
||
|
40
|
40
58302040100 Clutch lever assy cpl.dominoLC4'94 |
58302040100 |
US $112.85 |
||
|
41
|
41
58402042000 Clutch lever loose silver '97LC4'94 |
58402042000 |
US $45.36 |
||
|
42
|
42
58302126000 Clutch lever boot '95LC4'94 |
58302126000 |
US $3.91 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m7LC4'94 |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,25LC4'94 |
58302044000 |
US $11.41 |
||
|
45
|
45
0015060253
Hh Collar Screw M6X25 Tx30
LC4'94 |
0015060253 |
— | ||
| replacement | |||||
|
45
|
45
0025060256 Hh collar screw m6x25 tx30LC4'94 |
0025060256 |
US $2.45 |
||
|
46
|
46
58302023000 Joint dominoLC4'94 |
58302023000 |
US $51.48 |
||
|
47
|
47
58302047000 Decompression lever looseLC4'94 |
58302047000 |
US $12.19 |
||
|
48
|
48
58302048000 Protecting coverLC4'94 |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.LC4'94 |
58302049000 |
US $6 |
||
|
52
|
52
56502052000
Grip
LC4'94 |
56502052000 |
— | ||
|
54
|
54
58502039044 Rubber grips per grip 96-05LC4'94 |
58502039044 |
US $25.28 |
||
|
71
|
71
50311089000
Short Circuit Button 02
LC4'94 |
50311089000 |
— | ||
| replacement | |||||
|
71
|
71
50311089200 Short Circuit Button 02LC4'94 |
50311089200 |
US $50.97 |
||
|
80
|
80
44011076200 Cable tie 200/3,6mm blackLC4'94 |
44011076200 |
US $0.39 |
||
|
80
|
80
44011076100 Cable tie 100/2,5mm blackLC4'94 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
80
|
80
44011076140 Cable tie 140/2,5mm blackLC4'94 |
44011076140 |
US $0.29 |
||
|
90
|
90
50202090200 Clutch CableLC4'94 |
50202090200 |
US $40.48 |
||
| replacement | |||||
|
90
|
90
58402090000 Clutch cable 4t l=1115mm '99LC4'94 |
58402090000 |
US $36.65 |
||
|
91
|
91
58002091100 Throttle cable magura/dellortoLC4'94 |
58002091100 |
US $29.14 |
||
|
94
|
94
58302094200 Decompr. cable l=693,5 lc4 '99LC4'94 |
58302094200 |
US $34.44 |
||
