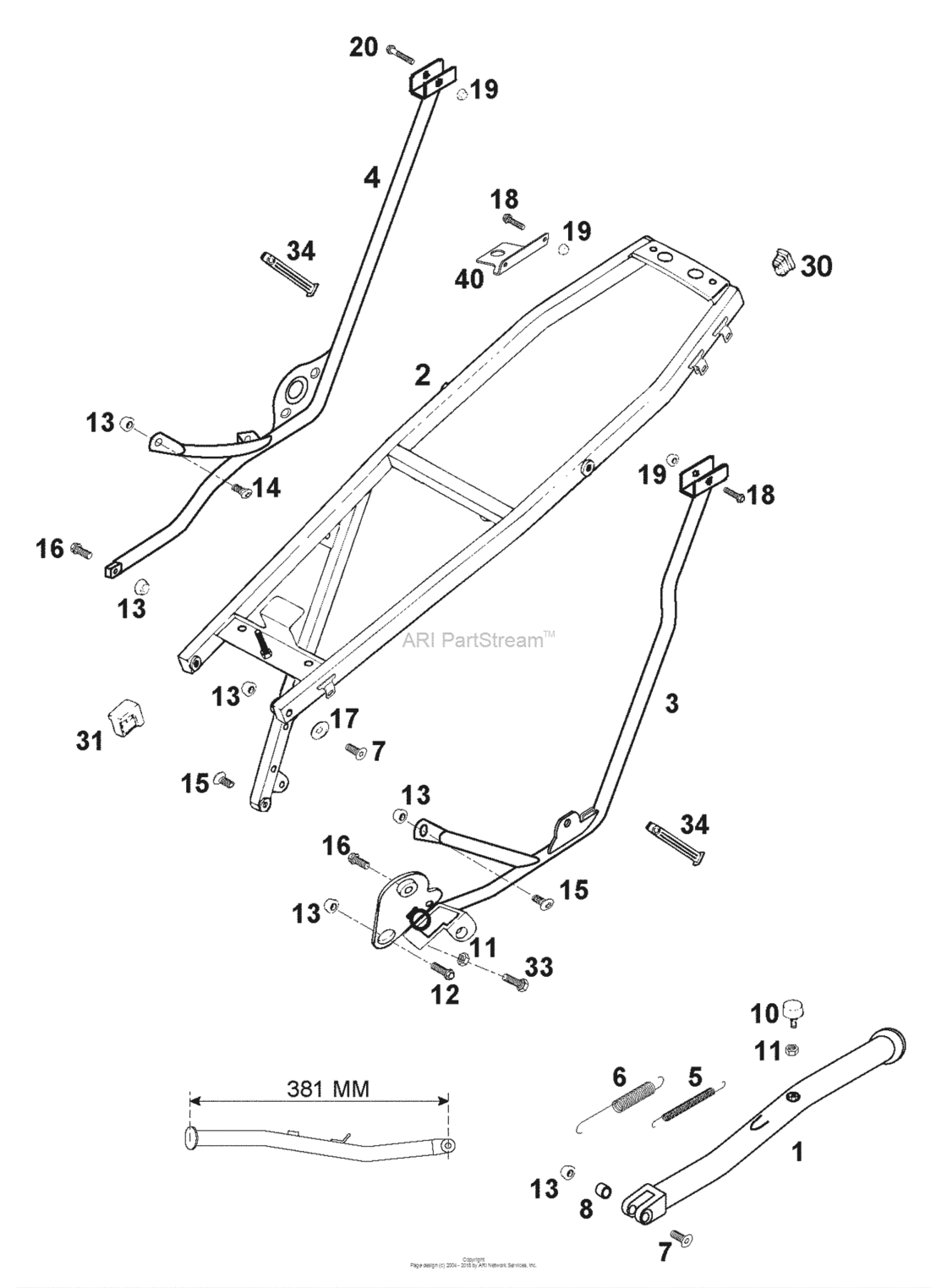

Sub Frame, Side Stand Diagram KTM 660 660 LC4 Rallye
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 LC4 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58503023000
Side Stand L=381Mm Rallye '98
LC4'94 |
58503023000 |
— | ||
|
2
|
2
58503002200
Sub Frame Steel Rallye '98
LC4'94 |
58503002200 |
— | ||
|
3
|
3
58512097000
Brace Subframe L/s Rallye '98
LC4'94 |
58512097000 |
— | ||
|
4
|
4
58512097180
Brace Sub Frame Rallye R/s '98
LC4'94 |
58512097180 |
— | ||
|
5
|
5
58403030000 Side stand spring d=7,7mm '97LC4'94 |
58403030000 |
US $4.56 |
||
|
6
|
6
51003021000 Sidestand spring longLC4'94 |
51003021000 |
US $5.87 |
||
|
7
|
7
0991080353 Flat head screw din7991-m 8x35LC4'94 |
0991080353 |
US $2.21 |
||
|
8
|
8
57103225000 Bushing 8,2 x 12 x 10LC4'94 |
57103225000 |
US $2.87 |
||
|
10
|
10
58303070000 Stop rubber m8LC4'94 |
58303070000 |
US $7.23 |
||
|
11
|
11
0934080003 Hexagon Nut Din0934-M 8LC4'94 |
0934080003 |
US $3.26 |
||
|
12
|
12
0015080253
H H Collar Screw
LC4'94 |
0015080253 |
— | ||
| replacement | |||||
|
12
|
12
0025080256 Hh Collar Screw M8X25 Tx40LC4'94 |
0025080256 |
US $4.10 |
||
|
13
|
13
54310086000
Self Locking Nut M8 10.9
LC4'94 |
54310086000 |
— | ||
| replacement | |||||
|
13
|
13
54310086200 Self Locking Nut M8 10.9LC4'94 |
54310086200 |
US $1.56 |
||
|
14
|
14
0107080203 Ah oval h.screw din0170-m 8x20LC4'94 |
0107080203 |
US $1.60 |
||
|
15
|
15
54610052000 Sprocket screw-ah m8x20 ws=6LC4'94 |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
15
|
15
0019080206 Counter-sunk screw isa45 m8x20LC4'94 |
0019080206 |
US $1.82 |
||
|
16
|
16
0015080203 Hh collar screw m 8x20 ws=10LC4'94 |
0015080203 |
US $1.68 |
||
|
17
|
17
58303061000 Special washer alu 8 x 24 mmLC4'94 |
58303061000 |
US $6.73 |
||
|
18
|
18
0015060253
Hh Collar Screw M6X25 Tx30
LC4'94 |
0015060253 |
— | ||
| replacement | |||||
|
18
|
18
0025060256 Hh collar screw m6x25 tx30LC4'94 |
0025060256 |
US $2.45 |
||
|
19
|
19
56509064000 Self Locking Nut M6 10.9LC4'94 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
19
|
19
56509064100 Self Locking Nut M6 10.9LC4'94 |
56509064100 |
US $1.04 |
||
|
20
|
20
0015060353
Hh collar screw m 6x35 ws=8
LC4'94 |
0015060353 |
— | ||
| replacement | |||||
|
20
|
20
0025060356 Hh collar screw m6x35 tx30LC4'94 |
0025060356 |
US $6.15 |
||
|
30
|
30
58303002090
Plug 12 x 17 mm
LC4'94 |
58303002090 |
— | ||
|
31
|
31
58307015000 Tank support '93LC4'94 |
58307015000 |
US $7.28 |
||
|
33
|
33
0933080253 Hh Screw Din0933-M 8X25LC4'94 |
0933080253 |
US $1.24 |
||
|
34
|
34
54611186000 Rubber BandLC4'94 |
54611186000 |
US $4.66 |
||
|
40
|
40
58503002251
Bracket For Reservoir '99
LC4'94 |
58503002251 |
— | ||
