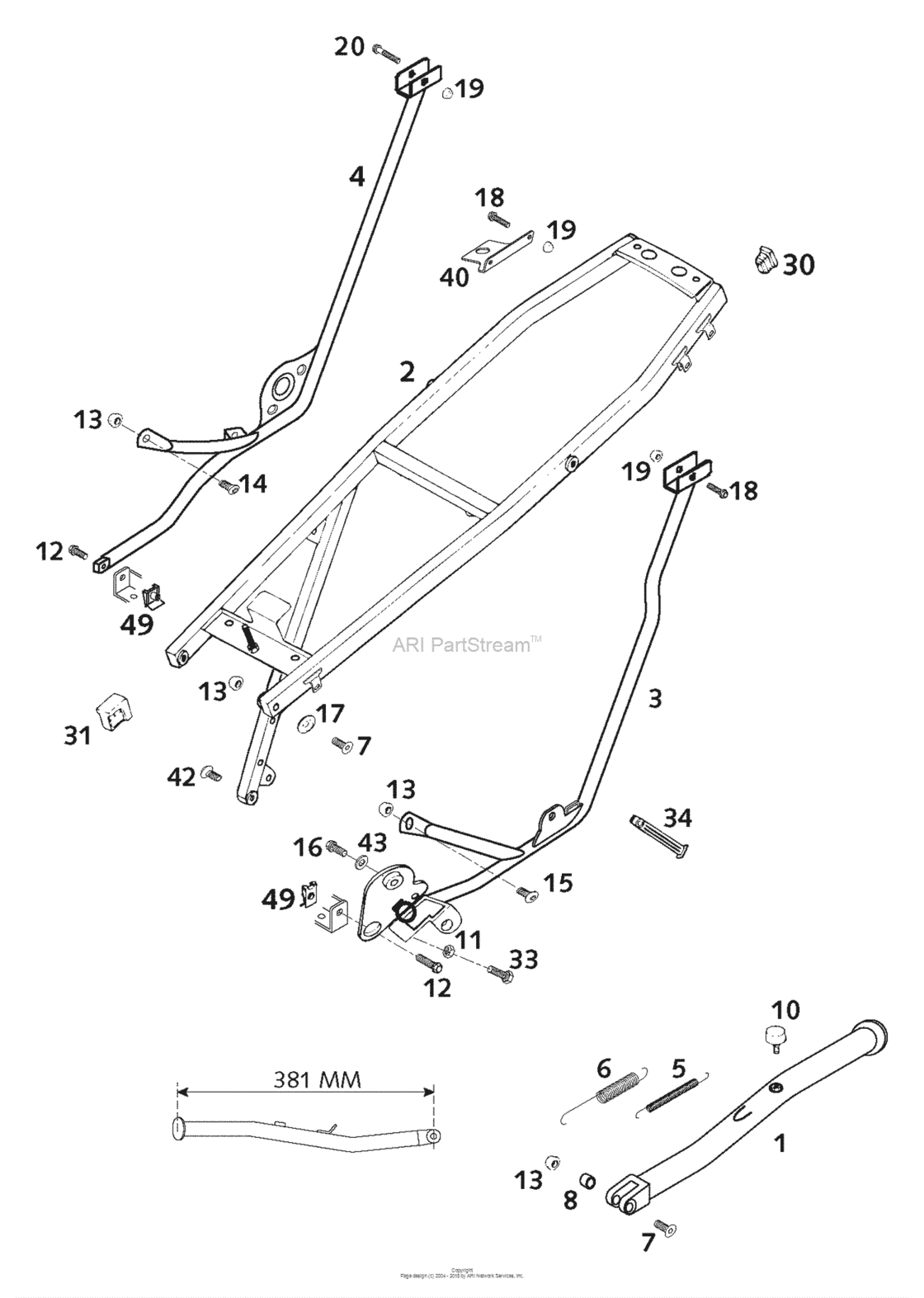

Sub Frame, Side Stand Diagram KTM 660 660 LC4 Rallye
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 LC4 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58503023000
Side Stand L=381Mm Rallye '98
FOR ADJUST. SCREW |
58503023000 |
— | ||
|
2
|
2
58503002200
Sub Frame Steel Rallye '98
FOR ADJUST. SCREW |
58503002200 |
— | ||
|
3
|
3
58512097000
Brace Subframe L/s Rallye '98
FOR ADJUST. SCREW |
58512097000 |
— | ||
|
4
|
4
58512097180
Brace Sub Frame Rallye R/s '98
FOR ADJUST. SCREW |
58512097180 |
— | ||
|
5
|
5
58403030000 Side stand spring d=7,7mm '97FOR ADJUST. SCREW |
58403030000 |
US $4.56 |
||
|
6
|
6
51003021000 Sidestand spring longFOR ADJUST. SCREW |
51003021000 |
US $5.87 |
||
|
7
|
7
0991080353 Flat head screw din7991-m 8x35FOR ADJUST. SCREW |
0991080353 |
US $2.21 |
||
|
8
|
8
57103225000 Bushing 8,2 x 12 x 10FOR ADJUST. SCREW |
57103225000 |
US $2.87 |
||
|
10
|
10
58303070000 Stop rubber m8FOR ADJUST. SCREW |
58303070000 |
US $7.23 |
||
|
11
|
11
0934080003 Hexagon Nut Din0934-M 8FOR ADJUST. SCREW |
0934080003 |
US $3.26 |
||
|
12
|
12
0015080303
Hh Collar Screw M8X30 Tx40
FOR ADJUST. SCREW |
0015080303 |
— | ||
| replacement | |||||
|
12
|
12
0025080306 Hh collar screw m8x30 tx40FOR ADJUST. SCREW |
0025080306 |
US $3.89 |
||
|
13
|
13
54310086200 Self Locking Nut M8 10.9FOR ADJUST. SCREW |
54310086200 |
US $1.56 |
||
|
14
|
14
0107080203 Ah oval h.screw din0170-m 8x20FOR ADJUST. SCREW |
0107080203 |
US $1.60 |
||
|
15
|
15
54610052000 Sprocket screw-ah m8x20 ws=6FOR ADJUST. SCREW |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
15
|
15
0019080206 Counter-sunk screw isa45 m8x20FOR ADJUST. SCREW |
0019080206 |
US $1.82 |
||
|
16
|
16
0015080203 Hh collar screw m 8x20 ws=10FOR ADJUST. SCREW |
0015080203 |
US $1.68 |
||
|
17
|
17
58303061000 Special washer alu 8 x 24 mmFOR ADJUST. SCREW |
58303061000 |
US $6.73 |
||
|
18
|
18
0015060253
Hh Collar Screw M6X25 Tx30
FOR ADJUST. SCREW |
0015060253 |
— | ||
| replacement | |||||
|
18
|
18
0025060256 Hh collar screw m6x25 tx30FOR ADJUST. SCREW |
0025060256 |
US $2.45 |
||
|
19
|
19
56509064100 Self Locking Nut M6 10.9FOR ADJUST. SCREW |
56509064100 |
US $1.04 |
||
|
20
|
20
0015060353
Hh collar screw m 6x35 ws=8
FOR ADJUST. SCREW |
0015060353 |
— | ||
| replacement | |||||
|
20
|
20
0025060356 Hh collar screw m6x35 tx30FOR ADJUST. SCREW |
0025060356 |
US $6.15 |
||
|
30
|
30
58303002090
Plug 12 x 17 mm
FOR ADJUST. SCREW |
58303002090 |
— | ||
|
31
|
31
58307015000 Tank support '93FOR ADJUST. SCREW |
58307015000 |
US $7.28 |
||
|
33
|
33
0933080253 Hh Screw Din0933-M 8X25FOR ADJUST. SCREW |
0933080253 |
US $1.24 |
||
|
34
|
34
54611186000 Rubber BandFOR ADJUST. SCREW |
54611186000 |
US $4.66 |
||
|
40
|
40
58503002251
Bracket For Reservoir '99
FOR ADJUST. SCREW |
58503002251 |
— | ||
|
42
|
42
54510052100
Counter-Sunk Screw Isa45 M8X26
FOR ADJUST. SCREW |
54510052100 |
— | ||
| replacement | |||||
|
42
|
42
0019080266S Counter-sunk screw isa45 m8x26FOR ADJUST. SCREW |
0019080266S |
US $2.23 |
||
|
43
|
43
0125080003 Washer din0125-a 8,4FOR ADJUST. SCREW |
0125080003 |
US $2.02 |
||
|
49
|
49
54603048000 Range Change Metal Nut M8FOR ADJUST. SCREW |
54603048000 |
US $3.35 |
||
