	Description	OEM Part #	Price
1	1 58536020100 Cylinderhead Cpl. In.6Din. 660Lc4 A=84,8Mm FOR STARTRELAY	58536020100	—
2	2 49030090000 Dowel 9,8 x 7 x 10 FOR STARTRELAY	49030090000	US $5.54
	replacement
2	2 49030090100 Dowel 9,8 X7X10 FOR STARTRELAY	49030090100	US $2.60
3	3 58036065100 Cu-seal ring 6 x 10 x 2 FOR STARTRELAY	58036065100	US $0.90
4	4 58036152500 Valve Cover Front FOR STARTRELAY	58036152500	US $43.49
	replacement
4	4 58036152600 Valve cover front '99 FOR STARTRELAY	58036152600	US $33.58
5	5 58036052000 Valve Cover Rear FOR STARTRELAY	58036052000	US $43.76
	replacement
5	5 58036052200 Valve cover rear FOR STARTRELAY	58036052200	US $14.33
6	6 58036053000 Valve cover gasket FOR STARTRELAY	58036053000	US $4.71
7	7 58530036000 Cylinder head gasket 102,3mm FOR STARTRELAY	58530036000	US $64.04
8	8 0603061001 Cu-Seal Ring Din7603-6X10X1 FOR STARTRELAY	0603061001	US $2.64
9	9 0912060353 Ah Screw Din0912-M 6X35 FOR STARTRELAY	0912060353	US $2.09
11	11 0912060253 Ah Screw Din0912-M 6X25 FOR STARTRELAY	0912060253	US $1.79
12	12 49030028000 Collar nut m8 FOR STARTRELAY	49030028000	US $2.09
13	13 54330043000 Stud din0835-m 8x40 FOR STARTRELAY	54330043000	US $3.79
14	14 58036098000 Cu-seal ring 10 x 20 x 1 FOR STARTRELAY	58036098000	US $1.22
014	014 58036099100 Collar screw m10x80 ws=13 10.9 FOR STARTRELAY	58036099100	US $8.87
15	15 0910100003 Plug din0910-m 10x1 FOR STARTRELAY	0910100003	US $4.39
16	16 58038032010 Copper Gasket Din7603-10X14X1 FOR STARTRELAY	58038032010	US $1.77
	replacement
16	16 0603100141 Copper Gasket Din7603-10X14X1 FOR STARTRELAY	0603100141	US $2.24
018	018 0993012000 Circlip Din7993-Rw12 FOR STARTRELAY	0993012000	US $2.11
18	18 58036026600 Valve Guide Intake FOR STARTRELAY	58036026600	US $16.85
	replacement
18	18 58036026644 Valve guide intake cpl. FOR STARTRELAY	58036026644	US $14.43
19	19 58036126600 Valve Guide Exhaus FOR STARTRELAY	58036126600	US $16.46
	replacement
19	19 58036126644 Valve guide exhaust cpl. FOR STARTRELAY	58036126644	US $14.43
30	30 58036040000 Exhaust flange r/s FOR STARTRELAY	58036040000	US $37.88
31	31 58036140000 Exhaust flange l/s FOR STARTRELAY	58036140000	US $37.03
32	32 58036041000 Exhaust flange gasket FOR STARTRELAY	58036041000	US $4.71
34	34 58336024000 Plug sas bore FOR STARTRELAY	58336024000	US $2.92
35	35 58436054000 Cu-seal ring 12 x 16 x 2 FOR STARTRELAY	58436054000	US $1.19
39	39 58136042040 Intake flange d=40mm FOR STARTRELAY	58136042040	—
41	41 58136043000 Intake flange gasket FOR STARTRELAY	58136043000	US $3.30
42	42 58136044100 Intake boot d=38mm 400-660 lc4 FOR STARTRELAY	58136044100	US $36.07
45	45 56530061000 Clamp sm12/a60 FOR STARTRELAY	56530061000	—
49	49 0912060163 Ah Screw Din0912-M 6X16 FOR STARTRELAY	0912060163	US $1.29
50	50 0991060203 Flat Head Din7991-M 6X20 FOR STARTRELAY	0991060203	US $2.99
	replacement
50	50 0991060202 Flat head din7991-m 6x20 FOR STARTRELAY	0991060202	US $3.26
51	51 0912060203 Ah Screw Din0912-M 6X20 FOR STARTRELAY	0912060203	US $1.04
52	52 0912060253 Ah Screw Din0912-M 6X25 FOR STARTRELAY	0912060253	US $1.79
53	53 51005074000 Retaining plate FOR STARTRELAY	51005074000	US $2.11
54	54 0912060501 Ah screw din0912-m 6x50 12.9 FOR STARTRELAY	0912060501	US $1.45
55	55 0912060551 Ah screw din0912-m 6x55 12.9 FOR STARTRELAY	0912060551	US $1.73
56	56 0912060653 Ah Screw Din0912-M 6X65 FOR STARTRELAY	0912060653	US $1.84
57	57 0912060703 Ah screw din0912-m 6x70 FOR STARTRELAY	0912060703	US $1.79
60	60 0137060000 Spring Washer Din0137-B 6 FOR STARTRELAY	0137060000	—
	replacement
60	60 0137060003 Spring Washer Din0137-B 6 FOR STARTRELAY	0137060003	US $0.43

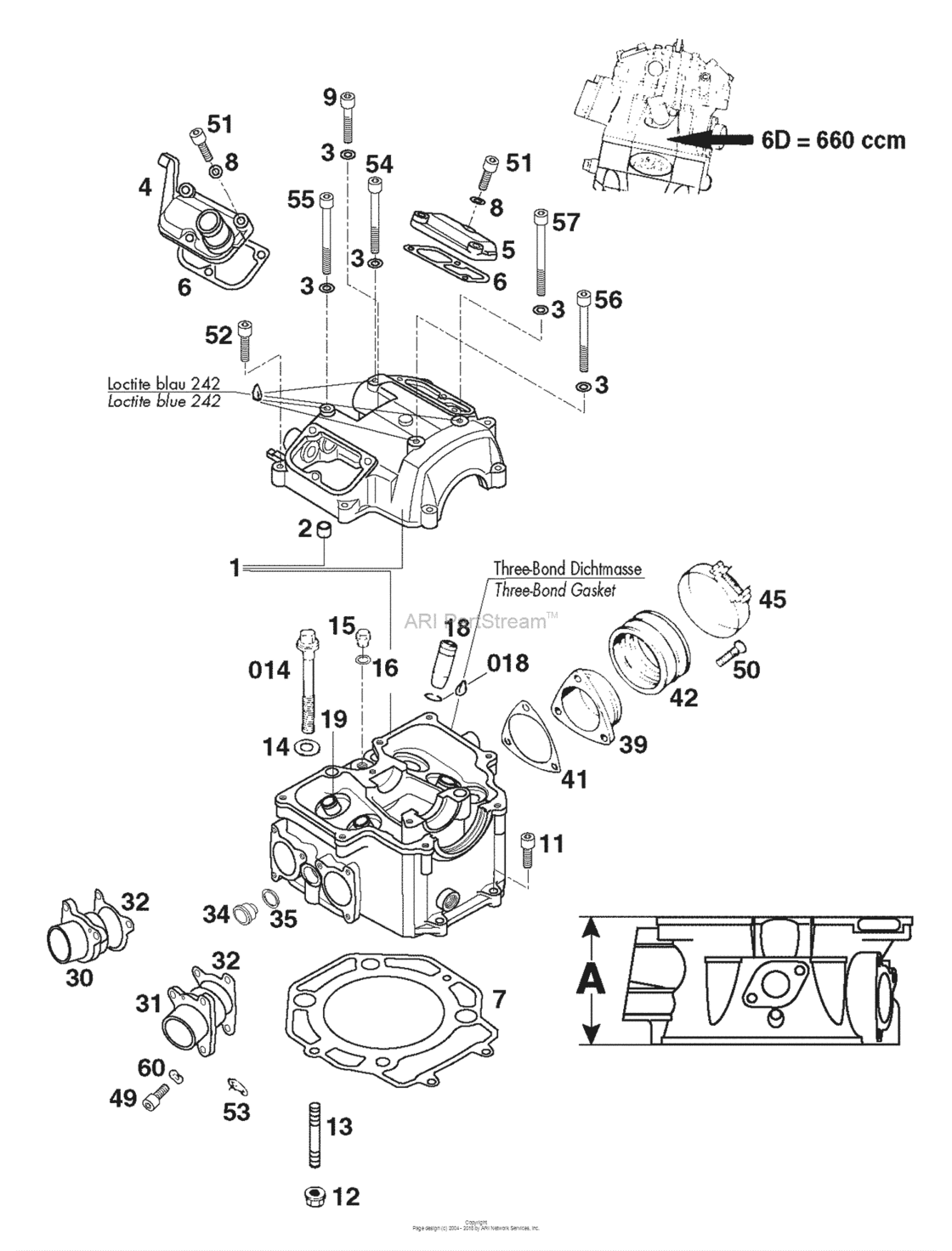

Cylinder Head Diagram KTM 660 660 LC4 Rallye US/EU 18105933-940675

Cylinder Head Diagram KTM 660 660 LC4 Rallye US/EU 18105933-940675
