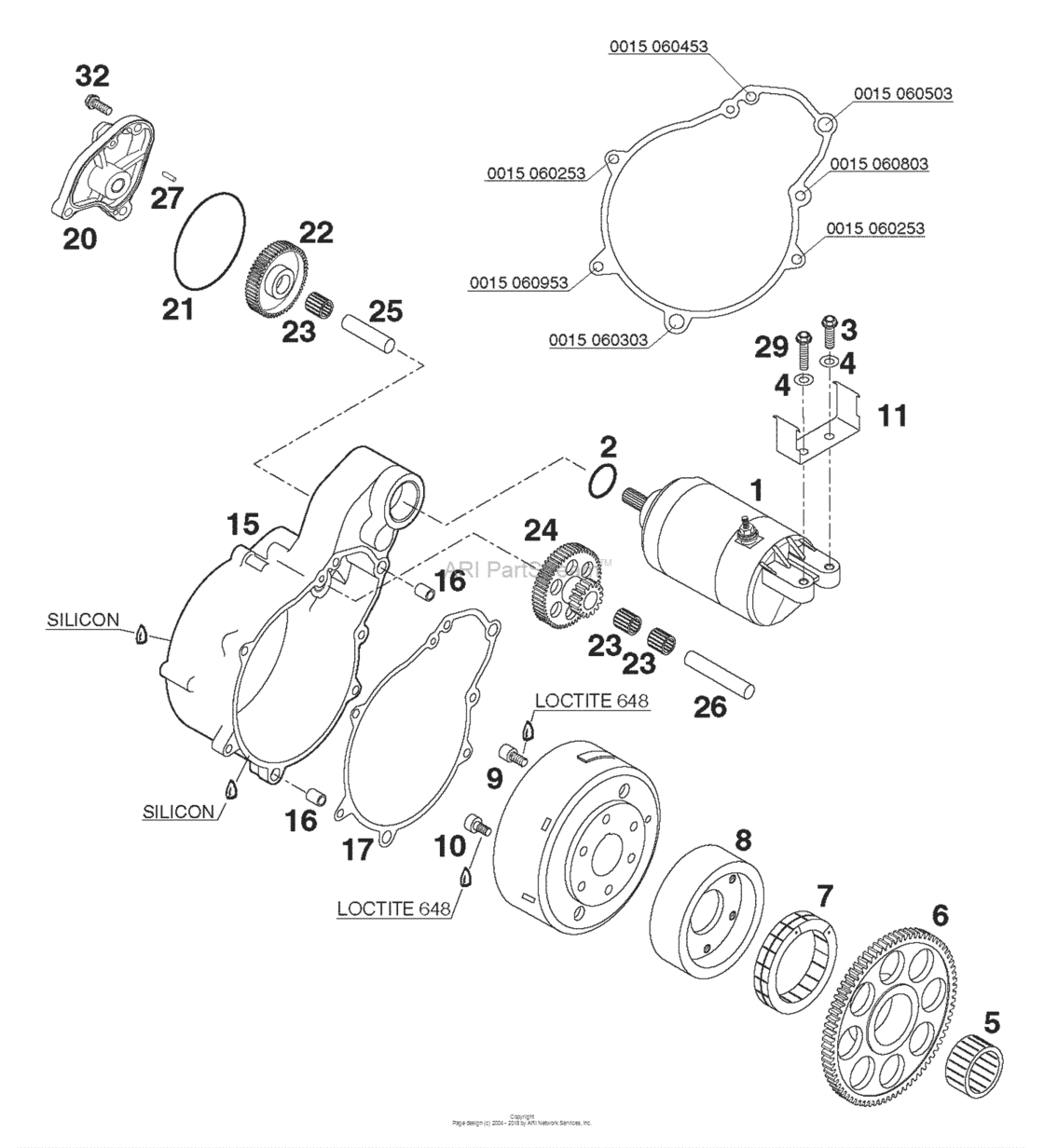

Electric Starter Diagram KTM 660 660 LC4 Rallye
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 LC4 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58440001000 E-starter engine cpl. lc4-eFOR STARTRELAY |
58440001000 |
US $383.30 |
||
|
2
|
2
0770250030 O-ring 25,00x3,00 nbr 70FOR STARTRELAY |
0770250030 |
US $4.35 |
||
|
3
|
3
0015060203
Hh Collar Screw M 6X20 Ws=8
FOR STARTRELAY |
0015060203 |
— | ||
| replacement | |||||
|
3
|
3
0025060206 Hh collar screw m6x20 tx30FOR STARTRELAY |
0025060206 |
US $1.97 |
||
|
4
|
4
0125060003 Washer Din0125-A 6,4FOR STARTRELAY |
0125060003 |
US $0.37 |
||
|
5
|
5
58440090100 Needle bearing k30 x 37 x 18 aFOR STARTRELAY |
58440090100 |
US $20.94 |
||
|
6
|
6
58440020079 Free-wheel-gear 79-tFOR STARTRELAY |
58440020079 |
US $179.89 |
||
|
7
|
7
58440026000 Free-wheel fwd 332008 blsFOR STARTRELAY |
58440026000 |
US $121.24 |
||
|
8
|
8
58440025000 Freewheel hubFOR STARTRELAY |
58440025000 |
US $97.92 |
||
|
9
|
9
0912060121 Ah screw din0912-m 6x12 12.9FOR STARTRELAY |
0912060121 |
US $0.82 |
||
|
10
|
10
58440098000 Ah centering screw m6x12,5FOR STARTRELAY |
58440098000 |
US $9.10 |
||
|
11
|
11
58511058050
Bracket For Startrelais '99
FOR STARTRELAY |
58511058050 |
— | ||
|
15
|
15
5844001010029 Starter flange grey '97FOR STARTRELAY |
5844001010029 |
US $139.74 |
||
|
16
|
16
49030090000 Dowel 9,8 x 7 x 10FOR STARTRELAY |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
16
|
16
49030090100 Dowel 9,8 X7X10FOR STARTRELAY |
49030090100 |
US $2.60 |
||
|
17
|
17
58440042000 Starter flange gasketFOR STARTRELAY |
58440042000 |
US $8.89 |
||
|
20
|
20
5844001110029 Starter cover grey '97FOR STARTRELAY |
5844001110029 |
US $57.09 |
||
|
21
|
21
0770072020
Form Ring F.startercover Nbr70
FOR STARTRELAY |
0770072020 |
— | ||
| replacement | |||||
|
21
|
21
58440011050
Form ring f.startercover nbr70
FOR STARTRELAY |
58440011050 |
— | ||
|
22
|
22
58440022000
Intermediate gear 52-t
FOR STARTRELAY |
58440022000 |
— | ||
|
23
|
23
58440090000 Needle bearing k10 x 13 x 13tnFOR STARTRELAY |
58440090000 |
US $8.69 |
||
|
24
|
24
58440021018 Reduction gear 55-t/18-zFOR STARTRELAY |
58440021018 |
US $84.56 |
||
|
25
|
25
58440028000
Bearing bolt 10 x 38,4
FOR STARTRELAY |
58440028000 |
— | ||
|
26
|
26
58440029000 Bearing bolt 10 x 54FOR STARTRELAY |
58440029000 |
US $14.01 |
||
|
27
|
27
0402040780
Needleroll. din5402 nrb 4x 7,8
FOR STARTRELAY |
0402040780 |
— | ||
|
29
|
29
0015060253
Hh Collar Screw M6X25 Tx30
FOR STARTRELAY |
0015060253 |
— | ||
| replacement | |||||
|
29
|
29
0025060256 Hh collar screw m6x25 tx30FOR STARTRELAY |
0025060256 |
US $2.45 |
||
|
32
|
32
0015060163 Hh Collar Screw M 6X16 Ws=8FOR STARTRELAY |
0015060163 |
US $2.23 |
||
