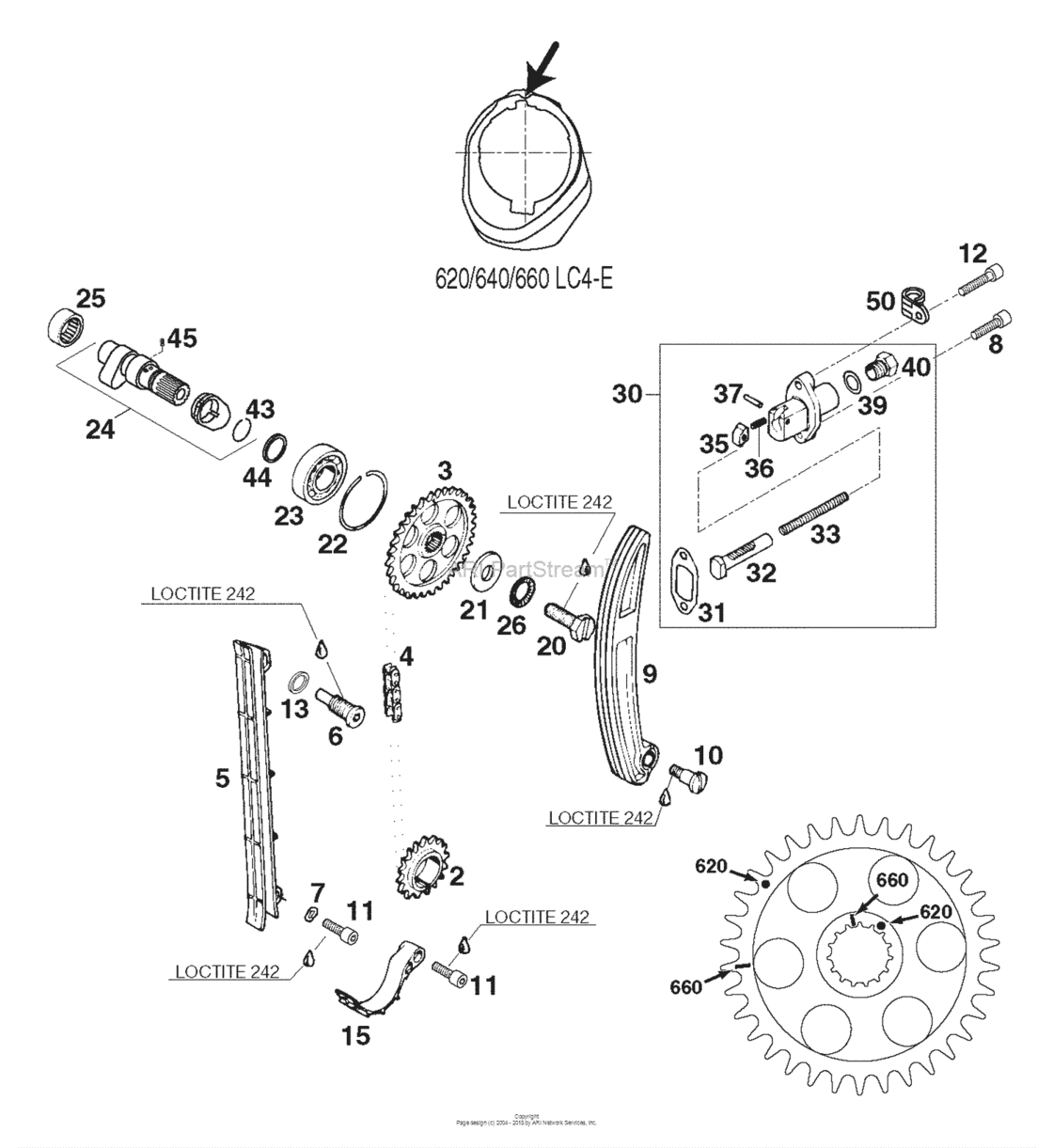

Timing Drive Diagram KTM 660 660 LC4 Rallye
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 LC4 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
58036014000 Timing gear 17-tFOR STARTRELAY |
58036014000 |
US $69.12 |
||
|
3
|
3
58536011000
Timing Gear 660 Lc4
FOR STARTRELAY |
58536011000 |
— | ||
|
4
|
4
58036013000 Timing chain c107c / 100 linksFOR STARTRELAY |
58036013000 |
US $309.38 |
||
|
5
|
5
58036001000
Timing chain guide
FOR STARTRELAY |
58036001000 |
— | ||
|
6
|
6
58036009000
Chain guide screw
FOR STARTRELAY |
58036009000 |
— | ||
|
7
|
7
0137060000
Spring Washer Din0137-B 6
FOR STARTRELAY |
0137060000 |
— | ||
| replacement | |||||
|
7
|
7
0137060003 Spring Washer Din0137-B 6FOR STARTRELAY |
0137060003 |
US $0.43 |
||
|
8
|
8
0912060253 Ah Screw Din0912-M 6X25FOR STARTRELAY |
0912060253 |
US $1.79 |
||
|
9
|
9
58536002000
Chain Tensioner Rallye
FOR STARTRELAY |
58536002000 |
— | ||
|
10
|
10
0923080120
Flat head scr. m 8x12
FOR STARTRELAY |
0923080120 |
— | ||
|
11
|
11
0912060208 Ah screw din0912-m 6x20 ssFOR STARTRELAY |
0912060208 |
US $4.10 |
||
|
12
|
12
0912060303 Ah screw din0912-m 6x30FOR STARTRELAY |
0912060303 |
US $1.60 |
||
|
13
|
13
58038022100 Cu-seal ring 12 x 16 x 2FOR STARTRELAY |
58038022100 |
US $2.09 |
||
|
15
|
15
58336018000
Securing guide
FOR STARTRELAY |
58336018000 |
— | ||
|
20
|
20
58336112000 Driving screw m10x25FOR STARTRELAY |
58336112000 |
US $12.75 |
||
|
21
|
21
58036012000 Steel washer 10 x 28 x 3FOR STARTRELAY |
58036012000 |
US $4.61 |
||
|
22
|
22
58036096000 Circlip sb 42FOR STARTRELAY |
58036096000 |
US $1.79 |
||
|
23
|
23
0625060040
Grooved ball bearing tmb004
FOR STARTRELAY |
0625060040 |
— | ||
|
24
|
24
58336110044 Camshaft cpl. 249/1 lc4-eFOR STARTRELAY |
58336110044 |
US $285.74 |
||
|
25
|
25
58036097000 Needle bearing bk 2012FOR STARTRELAY |
58036097000 |
US $18.45 |
||
|
26
|
26
36003014200 Locking washer 10mmFOR STARTRELAY |
36003014200 |
US $0.48 |
||
|
30
|
30
58036003144 Autom.tensioner cpl. '88FOR STARTRELAY |
58036003144 |
US $265.27 |
||
|
31
|
31
58036005100 Tensioner gasket 1,5 mmFOR STARTRELAY |
58036005100 |
US $2.58 |
||
|
32
|
32
58036004100
Pressure bolt
FOR STARTRELAY |
58036004100 |
— | ||
|
33
|
33
58036006100 Pressure spring 0,9mmFOR STARTRELAY |
58036006100 |
US $1.39 |
||
|
35
|
35
58036007100
Ratcheting pawl
FOR STARTRELAY |
58036007100 |
— | ||
|
36
|
36
58036007050 Pres.spring f.ratcheting pawlFOR STARTRELAY |
58036007050 |
US $0.77 |
||
|
37
|
37
0402031780 Needle rol.din5402 nrb 3x17,8FOR STARTRELAY |
0402031780 |
US $1.29 |
||
|
39
|
39
58038022000 Cu-Seal Ring Din7603-12X18X1,5FOR STARTRELAY |
58038022000 |
US $1.97 |
||
|
40
|
40
58036008100 Plug m12x1,5FOR STARTRELAY |
58036008100 |
US $4.64 |
||
|
43
|
43
0417200120 Circlip ws20FOR STARTRELAY |
0417200120 |
US $1.19 |
||
|
44
|
44
58336015000 Stepped ringFOR STARTRELAY |
58336015000 |
US $6.04 |
||
|
45
|
45
58336016052
Spring for auto-decompr. '95
FOR STARTRELAY |
58336016052 |
— | ||
|
50
|
50
54211052000 Clamp rsgu 24/15FOR STARTRELAY |
54211052000 |
US $11.68 |
||
