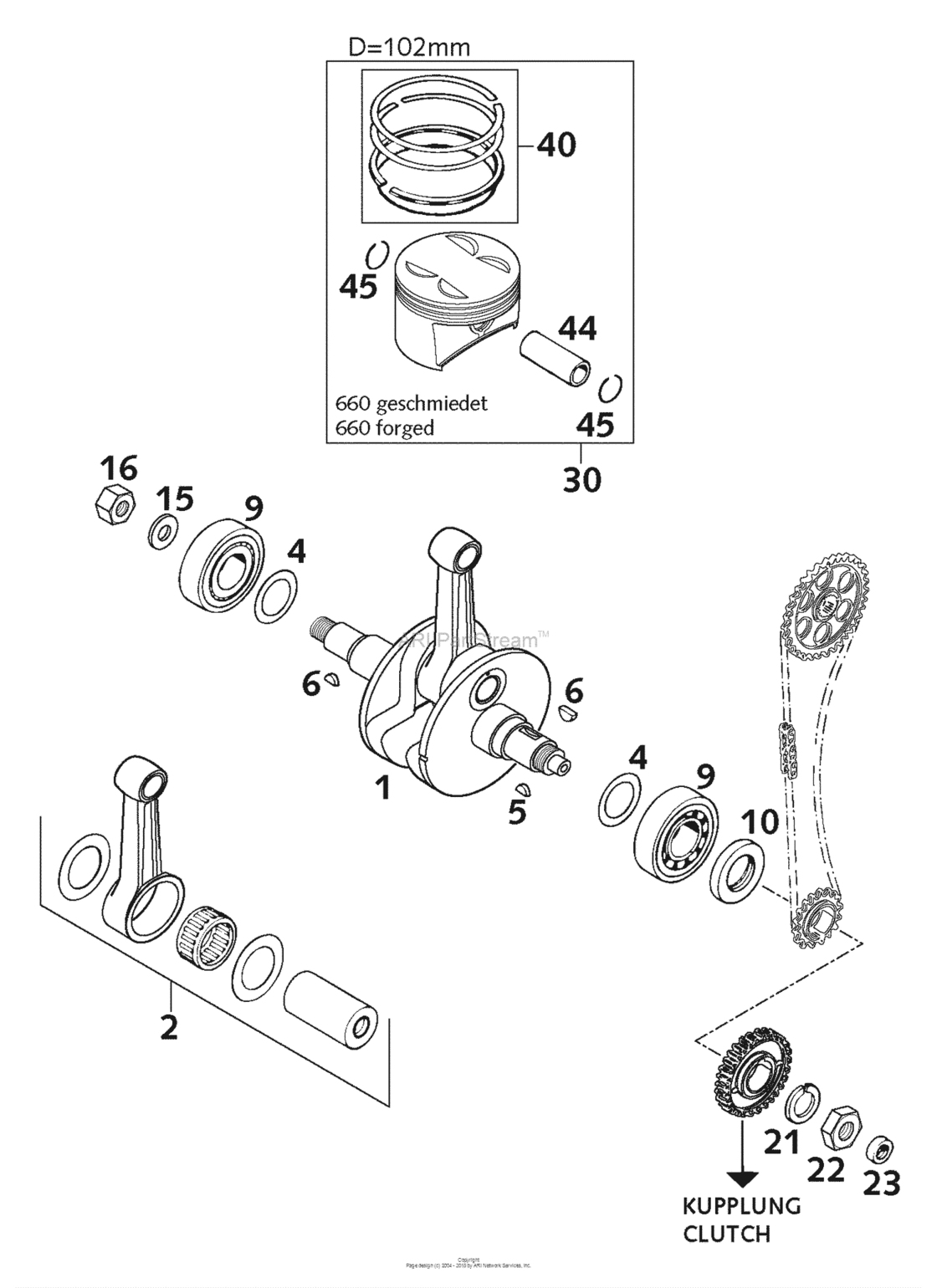

Crankshaft, Piston Diagram KTM 660 660 LC4 Rallye
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 LC4 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58530018100
Crankshaft Cpl. 660 Lc4 '99 Hub 80Mm
FOR STARTRELAY |
58530018100 |
— | ||
|
2
|
2
58530015044
Connecting Rod Repair Set Lc4 640/660 Ccm L=141,5Mm
FOR STARTRELAY |
58530015044 |
— | ||
|
4
|
4
56530081000 Shim washer 36x48x0,10FOR STARTRELAY |
56530081000 |
US $4.10 |
||
|
4
|
4
56530081100 Shim washer 36x48x0,15FOR STARTRELAY |
56530081100 |
US $1.28 |
||
|
4
|
4
56530081300 Shim washer 36x48x0,30FOR STARTRELAY |
56530081300 |
US $1.28 |
||
|
5
|
5
0888030050 Woodruff Key Din6888-3X5X13FOR STARTRELAY |
0888030050 |
US $2.60 |
||
|
6
|
6
6946005 Woodruff Key 5X6,5 HardedFOR STARTRELAY |
6946005 |
US $0.92 |
||
|
9
|
9
56530123100
Cylind.rol.bear. Nj207Et2Xcs42
FOR STARTRELAY |
56530123100 |
— | ||
| replacement | |||||
|
9
|
9
56530123200 Cylind.rol.bear. nj207et2xcs42FOR STARTRELAY |
56530123200 |
US $114.95 |
||
|
10
|
10
0760304071
Shaft Seal Ring 30X40X7 Bsl
FOR STARTRELAY |
0760304071 |
— | ||
|
15
|
15
58330095000 Steel washer 16 x 30 x 3FOR STARTRELAY |
58330095000 |
US $3.67 |
||
|
16
|
16
58430028000
Hex nut m16x1,25 l/s
FOR STARTRELAY |
58430028000 |
— | ||
|
21
|
21
58030019000 Locking ring vsk 20FOR STARTRELAY |
58030019000 |
US $1.70 |
||
|
22
|
22
0936200155 Hexagon nut din0936-m20x1,5FOR STARTRELAY |
0936200155 |
US $8.52 |
||
|
23
|
23
0760122270 Shaft Seal Ring 12 X 22 X 7 BFOR STARTRELAY |
0760122270 |
US $15.86 |
||
|
30
|
30
58530007100I
Piston I Cpl.102Mm Forged 2000
FOR STARTRELAY |
58530007100I |
— | ||
|
30
|
30
58530007100II
Piston Ii 102Mm Forged 2000
FOR STARTRELAY |
58530007100II |
— | ||
|
40
|
40
58530031044
Pistonringset 102 Cpl
FOR STARTRELAY |
58530031044 |
— | ||
|
44
|
44
57630033100 Piston bolt 22 x 13 x 56,3FOR STARTRELAY |
57630033100 |
US $48.40 |
||
|
45
|
45
58430074000 Circlip 22 x 1,6FOR STARTRELAY |
58430074000 |
US $9.45 |
||
