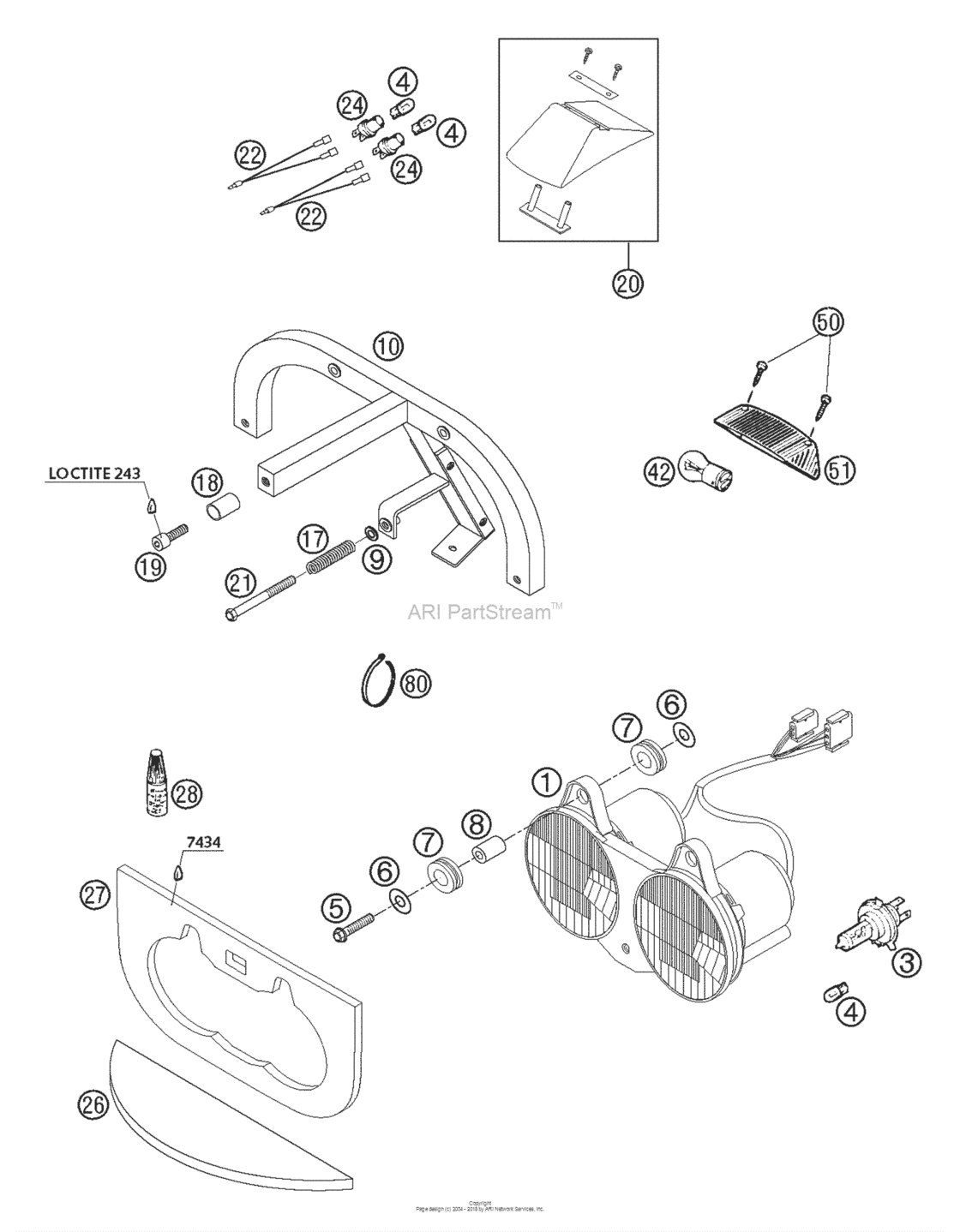

Head Light, Lights Diagram KTM 660 660 Rallye
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
44011076100 Cable tie 100/2,5mm blackCONSTRUCTION FOR KNEE PIECE |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
|
44011076140 Cable tie 140/2,5mm blackCONSTRUCTION FOR KNEE PIECE |
44011076140 |
US $0.29 |
||
|
1
|
1
58414001000 Head light triom cpl. '96CONSTRUCTION FOR KNEE PIECE |
58414001000 |
US $171.12 |
||
|
3
|
3
54611038012 Bulb hs1 12v 35/35w whiteCONSTRUCTION FOR KNEE PIECE |
54611038012 |
US $33.52 |
||
|
4
|
4
49011435000 Bulb 12V 5W (W2,1X9,5D) PhilCONSTRUCTION FOR KNEE PIECE |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
4
|
4
49011435100 Bulb 12V 5W (W2,1X9,5D) PhilCONSTRUCTION FOR KNEE PIECE |
49011435100 |
US $3.81 |
||
|
5
|
5
0015060303
Hh Collar Screw M6X30 Tx30
CONSTRUCTION FOR KNEE PIECE |
0015060303 |
— | ||
| replacement | |||||
|
5
|
5
0025060306 Hh collar screw m6x30 tx30CONSTRUCTION FOR KNEE PIECE |
0025060306 |
US $3.96 |
||
|
6
|
6
0021060003 Washer Din9021-A 6,4CONSTRUCTION FOR KNEE PIECE |
0021060003 |
US $3.26 |
||
|
7
|
7
41001052000 Rubber Sleeve D=12MmCONSTRUCTION FOR KNEE PIECE |
41001052000 |
US $5.46 |
||
|
8
|
8
56530060050 Spacer bushing 6x12x20 aluCONSTRUCTION FOR KNEE PIECE |
56530060050 |
US $5.22 |
||
|
9
|
9
0021050003 Washer din9021-a 5,3CONSTRUCTION FOR KNEE PIECE |
0021050003 |
US $1.29 |
||
|
10
|
10
58512091200 Carrier for triom head l. 2001CONSTRUCTION FOR KNEE PIECE |
58512091200 |
US $191.17 |
||
|
17
|
17
58311049007 Tensioning spring 1 x 12 x 35CONSTRUCTION FOR KNEE PIECE |
58311049007 |
US $2.30 |
||
|
18
|
18
58512006000
Bearing Sleeve Cover Front 01
CONSTRUCTION FOR KNEE PIECE |
58512006000 |
— | ||
|
19
|
19
0912060203 Ah Screw Din0912-M 6X20CONSTRUCTION FOR KNEE PIECE |
0912060203 |
US $1.04 |
||
|
20
|
20
58511099244
Extra Rear Light Lens '97
CONSTRUCTION FOR KNEE PIECE |
58511099244 |
— | ||
|
21
|
21
0931050603 Hh screw din931 m5x60CONSTRUCTION FOR KNEE PIECE |
0931050603 |
US $0.73 |
||
|
22
|
22
58511099200
Wiring Harness Rear Light '99
CONSTRUCTION FOR KNEE PIECE |
58511099200 |
— | ||
|
24
|
24
49011439000
Socket
CONSTRUCTION FOR KNEE PIECE |
49011439000 |
— | ||
|
26
|
26
58512091251
Flashbackprotection Horiz. 01
CONSTRUCTION FOR KNEE PIECE |
58512091251 |
— | ||
|
27
|
27
58512091250
Flashbackprotection Verti.2001
CONSTRUCTION FOR KNEE PIECE |
58512091250 |
— | ||
|
28
|
28
6899792
Glue Cyanacrylat 7434
CONSTRUCTION FOR KNEE PIECE |
6899792 |
— | ||
|
28
|
28
6899785 Loctite 243 Blue 6CcmCONSTRUCTION FOR KNEE PIECE |
6899785 |
US $40.61 |
||
|
42
|
42
58414042000 Bulb 12V 21/5W (Bay15S)ReinfoCONSTRUCTION FOR KNEE PIECE |
58414042000 |
US $12.56 |
||
|
50
|
50
0981290193
Sheet Met.scr.din7981 2,9X19
CONSTRUCTION FOR KNEE PIECE |
0981290193 |
— | ||
|
51
|
51
58311241000
Rear light lens acerbis '93
CONSTRUCTION FOR KNEE PIECE |
58311241000 |
— | ||
|
80
|
80
44011076200 Cable tie 200/3,6mm blackCONSTRUCTION FOR KNEE PIECE |
44011076200 |
US $0.39 |
||
