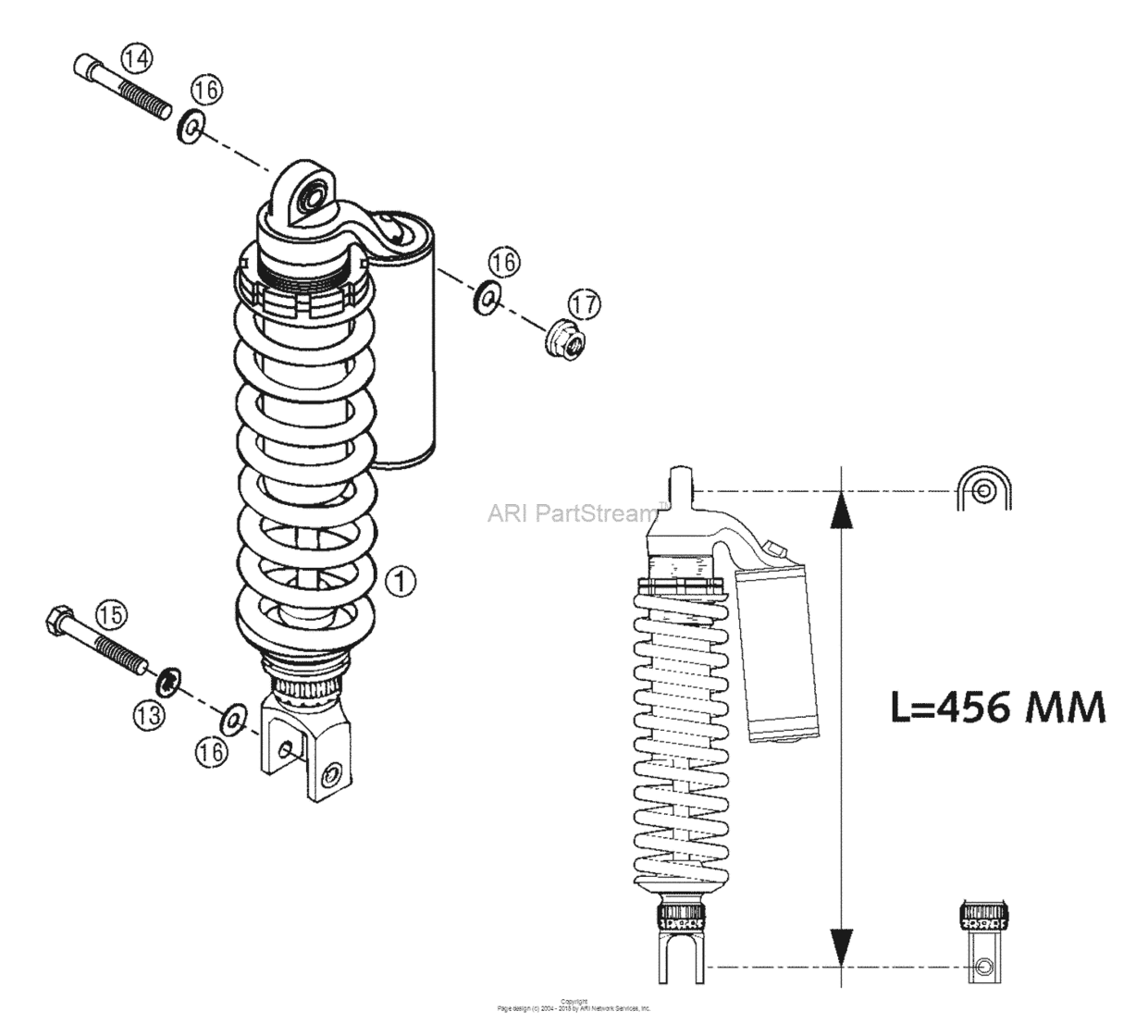

Shock Absorber Wp Diagram KTM 660 660 Rallye
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0118W718
Monoshock Pds Rallye 02
DID |
0118W718 |
— | ||
|
13
|
13
0797100003 Lock washer din6797-j10,5 ziDID |
0797100003 |
US $0.65 |
||
|
14
|
14
58503086000
Ah Screw Din0912-M10X55 10.9
DID |
58503086000 |
— | ||
|
15
|
15
56503093000 Special screw m10x55 ws=17DID |
56503093000 |
US $5.27 |
||
|
16
|
16
58503087000
Washer F. Screw F.monoshock 01
DID |
58503087000 |
— | ||
|
17
|
17
54630044000 Collar nut m10 ws=13DID |
54630044000 |
US $2.16 |
||
|
18
|
18
0125100003 Washer Din0125-A10,5DID |
0125100003 |
US $1.19 |
