	Description	OEM Part #	Price
1	1 58503023100 Side Stand Rally 01 DID	58503023100	—
2	2 58503002300 Sub Frame Steel Rally 2001 DID	58503002300	—
5	5 58403030000 Side stand spring d=7,7mm '97 DID	58403030000	US $4.56
6	6 51003021000 Sidestand spring long DID	51003021000	US $5.87
9	9 58503002340 Sub Frame Extension 2001 DID	58503002340	—
10	10 0984100456 Ah screw din6912 m10x45 DID	0984100456	US $8.72
12	12 54610052000 Sprocket screw-ah m8x20 ws=6 DID	54610052000	US $2.35
	replacement
12	12 0019080206 Counter-sunk screw isa45 m8x20 DID	0019080206	US $1.82
13	13 0985100003 Self locking nut din0985-m10 DID	0985100003	US $1.22
14	14 58303061000 Special washer alu 8 x 24 mm DID	58303061000	US $6.73
20	20 0014060103 Hh Collar Screw M6X10 Tx30 DID	0014060103	—
	replacement
20	20 0024060106 Hh collar screw m6x10 tx30 DID	0024060106	US $4.35
21	21 0014060153 Hh Collar Screw M6X15 Tx30 DID	0014060153	—
	replacement
21	21 0024060156 Hh collar screw m6x15 tx30 DID	0024060156	US $3.96
22	22 58503023060 Stand Screw Rally 2001 DID	58503023060	—
26	26 58503026050 Side Standing Bracket Cpl DID	58503026050	—
27	27 36003014000 Lock washer 8mm DID	36003014000	US $0.46
28	28 58503002001 Hh Collar Screw S.frame Ral.01 DIN0931-M 8X35 SEAT 20 MM	58503002001	—
30	30 0991060153 Flat Head Screw Din7991 M6X15 DIN0931-M 8X35 SEAT 20 MM	0991060153	—
31	31 58011039000 Spacer bushing 6,5 x 8 x 7 DIN0931-M 8X35 SEAT 20 MM	58011039000	US $1.79
57	57 54611186000 Rubber Band DIN0931-M 8X35 SEAT 20 MM	54611186000	US $4.66
58	58 58503023170 Side Stand Rubber-Ret.panel 01 DIN0931-M 8X35 SEAT 20 MM	58503023170	—

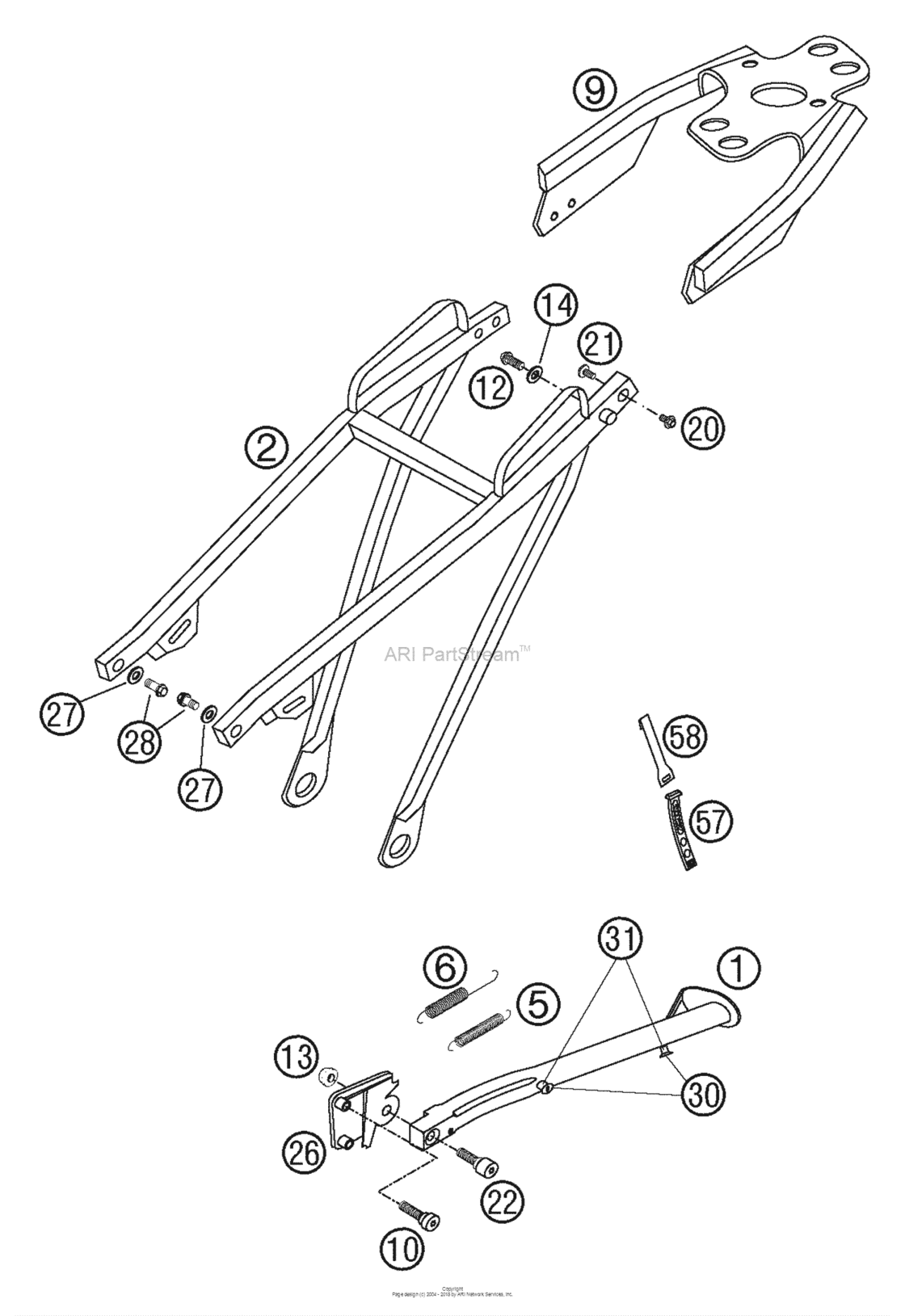

Sub Frame, Side Stand Diagram KTM 660 660 Rallye US/EU 18105999-940678

Sub Frame, Side Stand Diagram KTM 660 660 Rallye US/EU 18105999-940678
