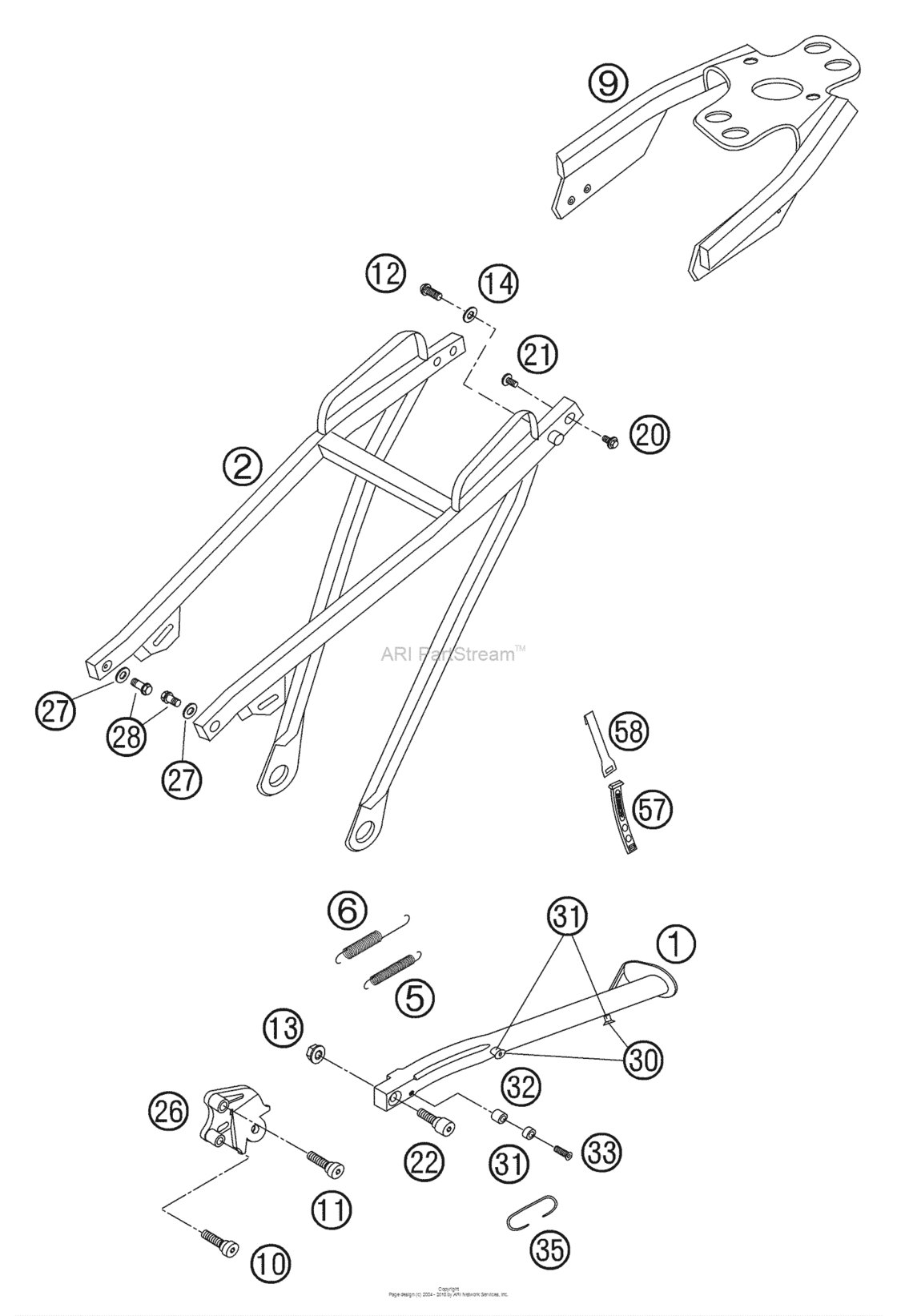

Sub Frame, Side Stand Diagram KTM 660 660 Rallye
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58503023200
Side Stand Rallye L=430 01
REGINA |
58503023200 |
— | ||
|
2
|
2
58503002300
Sub Frame Steel Rally 2001
REGINA |
58503002300 |
— | ||
|
5
|
5
58403030000 Side stand spring d=7,7mm '97REGINA |
58403030000 |
US $4.56 |
||
|
6
|
6
51003021000 Sidestand spring longREGINA |
51003021000 |
US $5.87 |
||
|
9
|
9
58503002340
Sub Frame Extension 2001
REGINA |
58503002340 |
— | ||
|
10
|
10
0984100356
Ah Screw Din7984 M10X35
REGINA |
0984100356 |
— | ||
|
11
|
11
0984100456 Ah screw din6912 m10x45REGINA |
0984100456 |
US $8.72 |
||
|
12
|
12
54610052000 Sprocket screw-ah m8x20 ws=6REGINA |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
12
|
12
0019080206 Counter-sunk screw isa45 m8x20REGINA |
0019080206 |
US $1.82 |
||
|
13
|
13
0985100003 Self locking nut din0985-m10REGINA |
0985100003 |
US $1.22 |
||
|
14
|
14
58303061000 Special washer alu 8 x 24 mmREGINA |
58303061000 |
US $6.73 |
||
|
20
|
20
0014060103
Hh Collar Screw M6X10 Tx30
REGINA |
0014060103 |
— | ||
| replacement | |||||
|
20
|
20
0024060106 Hh collar screw m6x10 tx30REGINA |
0024060106 |
US $4.35 |
||
|
21
|
21
0014060153
Hh Collar Screw M6X15 Tx30
REGINA |
0014060153 |
— | ||
| replacement | |||||
|
21
|
21
0024060156 Hh collar screw m6x15 tx30REGINA |
0024060156 |
US $3.96 |
||
|
22
|
22
58503023060
Stand Screw Rally 2001
REGINA |
58503023060 |
— | ||
|
26
|
26
58503026250
Side Standing Bracket Cpl. 05
REGINA |
58503026250 |
— | ||
|
27
|
27
36003014000 Lock washer 8mmREGINA |
36003014000 |
US $0.46 |
||
|
28
|
28
58503002001
Hh Collar Screw S.frame Ral.01
DIN0931-M 8X35 SEAT 20 MM |
58503002001 |
— | ||
|
30
|
30
0991060153
Flat Head Screw Din7991 M6X15
DIN0931-M 8X35 SEAT 20 MM |
0991060153 |
— | ||
|
31
|
31
58011039000 Spacer bushing 6,5 x 8 x 7DIN0931-M 8X35 SEAT 20 MM |
58011039000 |
US $1.79 |
||
|
32
|
32
54613038150 Bushing 6,5x8x11DIN0931-M 8X35 SEAT 20 MM |
54613038150 |
US $3.11 |
||
|
33
|
33
0991060253 Flat head screw din7991-m 6x25DIN0931-M 8X35 SEAT 20 MM |
0991060253 |
US $0.65 |
||
|
35
|
35
58503031000 Spring clip side stand 05DIN0931-M 8X35 SEAT 20 MM |
58503031000 |
US $11.12 |
||
|
57
|
57
54611186000 Rubber BandDIN0931-M 8X35 SEAT 20 MM |
54611186000 |
US $4.66 |
||
|
58
|
58
58503023170
Side Stand Rubber-Ret.panel 01
DIN0931-M 8X35 SEAT 20 MM |
58503023170 |
— | ||
