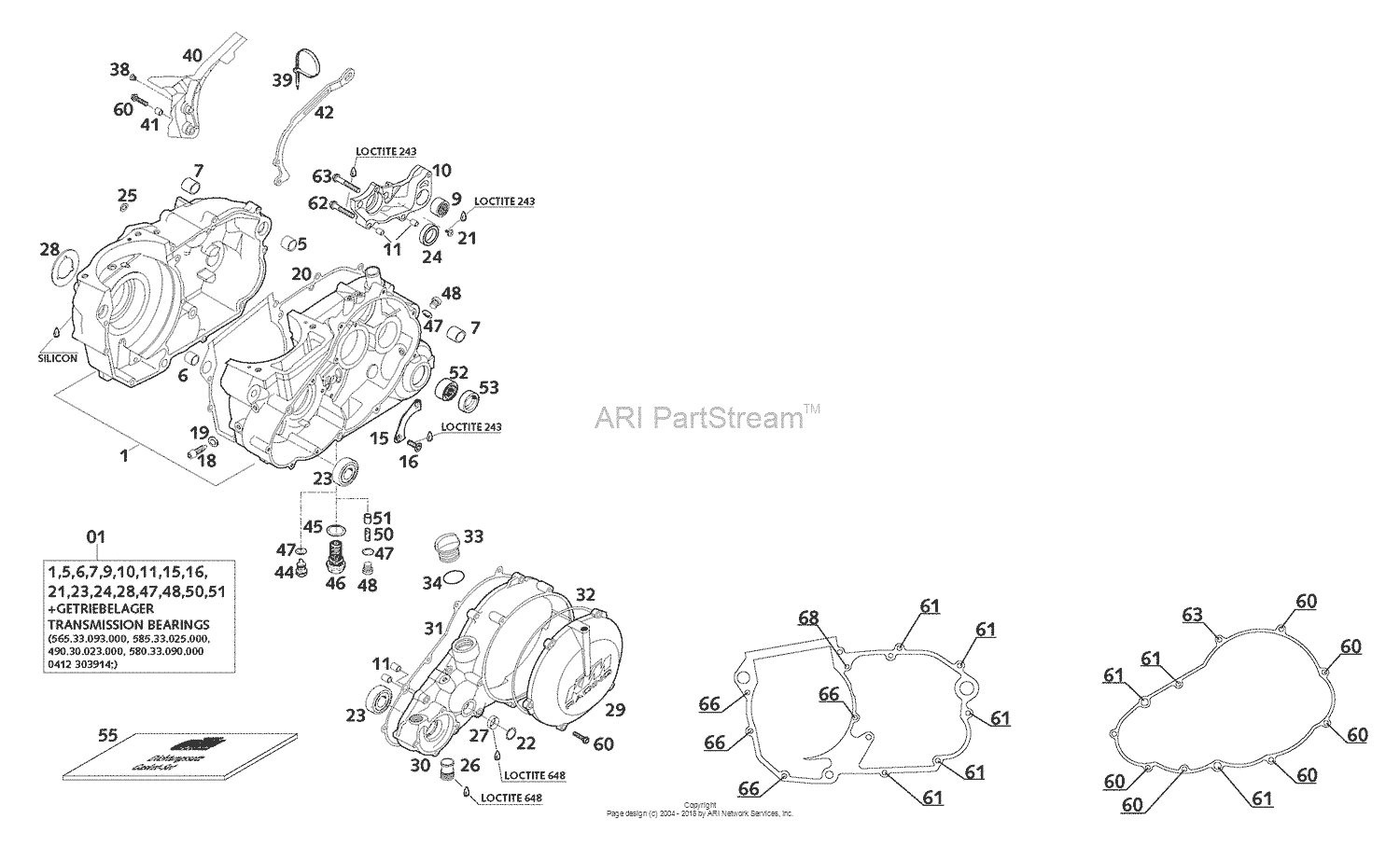

Engine Case Diagram KTM 660 660 Rallye Customer Bike
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
58530000544
Engine Case Cpl.w.tr.bear.2001
FOR STARTRELAIS '99 |
58530000544 |
— | ||
|
5
|
5
50130027000 Dowel 19 x15,1x12FOR STARTRELAIS '99 |
50130027000 |
US $7.09 |
||
|
6
|
6
51030026100 Dowel 17 x 13 x 12FOR STARTRELAIS '99 |
51030026100 |
US $5.66 |
||
|
7
|
7
58530010000
Crank Shaft Bush Rallye 2001
FOR STARTRELAIS '99 |
58530010000 |
— | ||
|
9
|
9
58033097000 Needle bearing hk 2216FOR STARTRELAIS '99 |
58033097000 |
US $13.94 |
||
|
10
|
10
58330011000 Shift mechanism support lc4'94FOR STARTRELAIS '99 |
58330011000 |
US $116.16 |
||
|
11
|
11
49030090000 Dowel 9,8 x 7 x 10FOR STARTRELAIS '99 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
11
|
11
49030090100 Dowel 9,8 X7X10FOR STARTRELAIS '99 |
49030090100 |
US $2.60 |
||
|
15
|
15
56530017000 Retaining plateFOR STARTRELAIS '99 |
56530017000 |
US $16.12 |
||
|
16
|
16
0991060163 Flat head scr. din7991-m 6x16FOR STARTRELAIS '99 |
0991060163 |
US $1.46 |
||
|
18
|
18
58530080000
Locating Screw
FOR STARTRELAIS '99 |
58530080000 |
— | ||
|
19
|
19
58030081000 Cu-seal ring 8 x 14 x 3FOR STARTRELAIS '99 |
58030081000 |
US $1.22 |
||
|
20
|
20
58530039000
Engine Case 2001
FOR STARTRELAIS '99 |
58530039000 |
— | ||
|
21
|
21
0985050103 Oval head scr. din7985-m 5x10FOR STARTRELAIS '99 |
0985050103 |
US $2.18 |
||
|
22
|
22
0472200010
Lockring Din 472 20X1Mm
FOR STARTRELAIS '99 |
0472200010 |
— | ||
|
23
|
23
0412174012 Cylind.roll.nj 203 ecp/c3 2001FOR STARTRELAIS '99 |
0412174012 |
US $64.77 |
||
|
24
|
24
0625618050 Ball bearing 61805 c3FOR STARTRELAIS '99 |
0625618050 |
US $39.98 |
||
|
25
|
25
0603061001 Cu-Seal Ring Din7603-6X10X1FOR STARTRELAIS '99 |
0603061001 |
US $2.64 |
||
|
26
|
26
58030010000
Screw In Nozzle M20X1,5
FOR STARTRELAIS '99 |
58030010000 |
— | ||
| replacement | |||||
|
26
|
26
58030010200 Screw In Nozzle M20X1,5FOR STARTRELAIS '99 |
58030010200 |
US $8.82 |
||
|
27
|
27
58430095000
Inspection glass gw 20-7
FOR STARTRELAIS '99 |
58430095000 |
— | ||
| replacement | |||||
|
27
|
27
58430095100 Inspect.glass Gw 20-7 MineralFOR STARTRELAIS '99 |
58430095100 |
US $25.21 |
||
|
28
|
28
58440091000 Stop disk 33 x 58 x 1,5FOR STARTRELAIS '99 |
58440091000 |
US $4.78 |
||
|
29
|
29
58530026000
Clutch Cover Outside Cpl. 2001
FOR STARTRELAIS '99 |
58530026000 |
— | ||
|
30
|
30
58530001000
Clutch Cover 2001
FOR STARTRELAIS '99 |
58530001000 |
— | ||
|
31
|
31
58530025000 Clutch cover gasket 2001FOR STARTRELAIS '99 |
58530025000 |
US $18.89 |
||
|
32
|
32
0770165024
O-Ring 165X2,4 2001
FOR STARTRELAIS '99 |
0770165024 |
— | ||
|
33
|
33
58030020000 Plug Cpl. M24X3FOR STARTRELAIS '99 |
58030020000 |
US $7.06 |
||
| replacement | |||||
|
33
|
33
58030020100 Plug Cpl. M24X3FOR STARTRELAIS '99 |
58030020100 |
US $6.73 |
||
|
34
|
34
0770160030 O-ring 16,00x3,00 nbr 70FOR STARTRELAIS '99 |
0770160030 |
US $2.09 |
||
|
38
|
38
54403135000 Plastic cap sfl10FOR STARTRELAIS '99 |
54403135000 |
US $1.31 |
||
|
39
|
39
44011076305 Cable tie 300/4,8mm blackFOR STARTRELAIS '99 |
44011076305 |
US $0.36 |
||
|
40
|
40
58530060000
Sprocket Cover Rallye 2001
FOR STARTRELAIS '99 |
58530060000 |
— | ||
|
41
|
41
54613038150 Bushing 6,5x8x11FOR STARTRELAIS '99 |
54613038150 |
US $3.11 |
||
|
42
|
42
58430047000 Chain dampersheet 17t lc4-eFOR STARTRELAIS '99 |
58430047000 |
US $40.97 |
||
|
42
|
42
58430047100
Superseded By 58430047000
FOR STARTRELAIS '99 |
58430047100 |
— | ||
|
44
|
44
58030021000
Oildrain Plug With Magnet
FOR STARTRELAIS '99 |
58030021000 |
— | ||
| replacement | |||||
|
44
|
44
58030021100 Oildrain Plug With MagnetFOR STARTRELAIS '99 |
58030021100 |
US $12.02 |
||
|
45
|
45
58038017100 Cu-seal ring din7603-22x27x2FOR STARTRELAIS '99 |
58038017100 |
US $3.89 |
||
|
46
|
46
58038019100
Oil drain plug m22x1,5
FOR STARTRELAIS '99 |
58038019100 |
— | ||
|
47
|
47
58038022000 Cu-Seal Ring Din7603-12X18X1,5FOR STARTRELAIS '99 |
58038022000 |
US $1.97 |
||
|
48
|
48
0908120153 Plug din0908-m12x1,5FOR STARTRELAIS '99 |
0908120153 |
US $3.81 |
||
|
50
|
50
58538023000 Oil pres.spring 5 bar red 2001FOR STARTRELAIS '99 |
58538023000 |
US $7.99 |
||
|
51
|
51
58038028000 Valve piston d=10mmFOR STARTRELAIS '99 |
58038028000 |
US $38.76 |
||
|
52
|
52
58033090000 Needle bearing rna 4903FOR STARTRELAIS '99 |
58033090000 |
US $33.07 |
||
|
53
|
53
0760223270 Shaft seal ring 22x32x7 bslFOR STARTRELAIS '99 |
0760223270 |
US $9.61 |
||
|
55
|
55
58530399000 Gasket set 660 rallye 2001FOR STARTRELAIS '99 |
58530399000 |
US $579.11 |
||
|
60
|
60
0015060253
Hh Collar Screw M6X25 Tx30
FOR STARTRELAIS '99 |
0015060253 |
— | ||
| replacement | |||||
|
60
|
60
0025060256 Hh collar screw m6x25 tx30FOR STARTRELAIS '99 |
0025060256 |
US $2.45 |
||
|
61
|
61
0015060303
Hh Collar Screw M6X30 Tx30
FOR STARTRELAIS '99 |
0015060303 |
— | ||
| replacement | |||||
|
61
|
61
0025060306 Hh collar screw m6x30 tx30FOR STARTRELAIS '99 |
0025060306 |
US $3.96 |
||
|
62
|
62
0015060353
Hh collar screw m 6x35 ws=8
FOR STARTRELAIS '99 |
0015060353 |
— | ||
| replacement | |||||
|
62
|
62
0025060356 Hh collar screw m6x35 tx30FOR STARTRELAIS '99 |
0025060356 |
US $6.15 |
||
|
63
|
63
0015060403
Hh Collar Screw M6X40 Tx30
FOR STARTRELAIS '99 |
0015060403 |
— | ||
| replacement | |||||
|
63
|
63
0025060406 Hh collar screw m6x40 tx30FOR STARTRELAIS '99 |
0025060406 |
US $2.23 |
||
|
66
|
66
0015060553 Hh collar screw m 6x55 ws=8FOR STARTRELAIS '99 |
0015060553 |
US $2.09 |
||
|
68
|
68
0015060653 Hh collar screw m 6x65 ws=8FOR STARTRELAIS '99 |
0015060653 |
US $1.12 |
||
