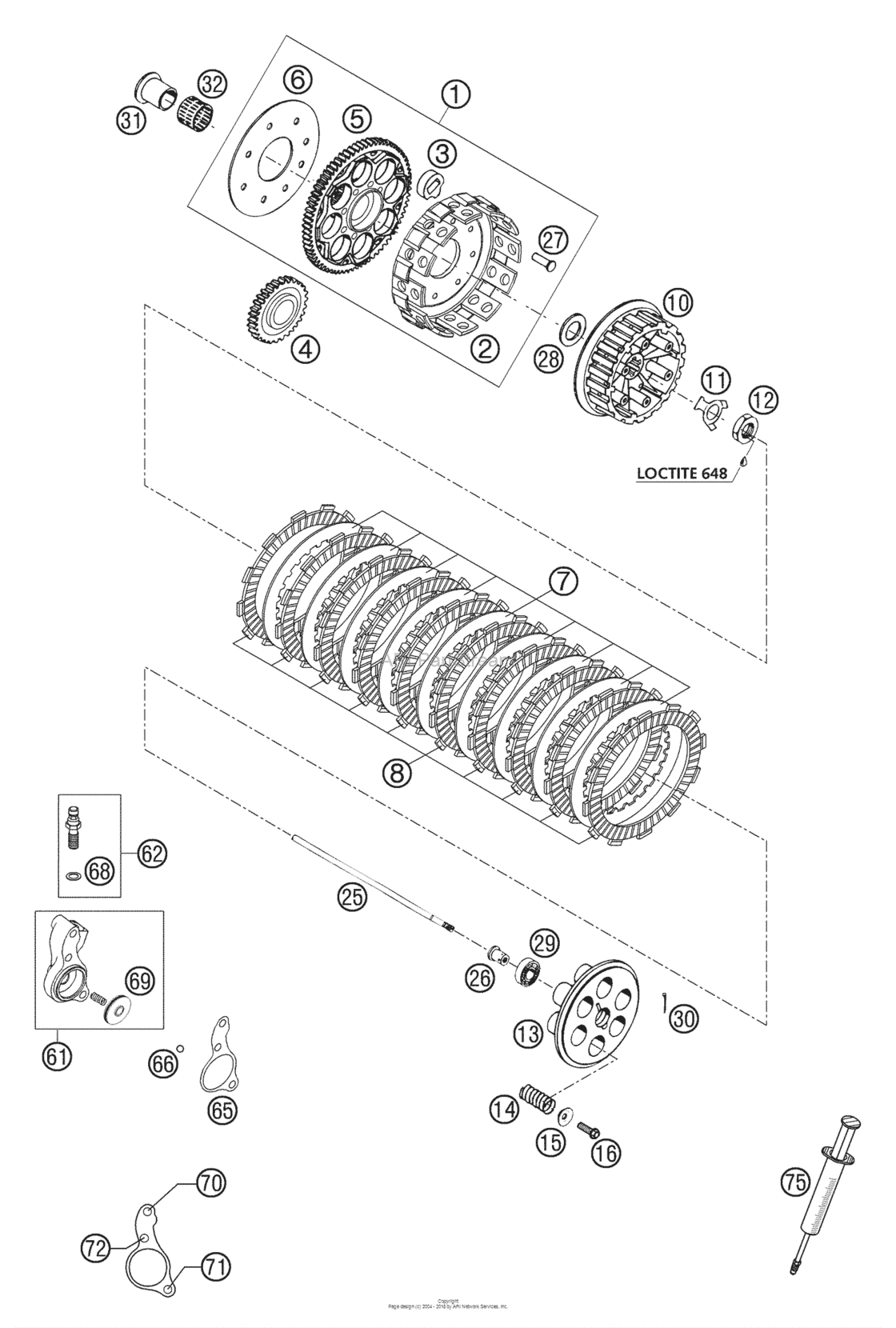

Clutch Diagram KTM 660 660 Rallye
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58532001144
Outer clut. hub cpl. rallye 01
94 |
58532001144 |
— | ||
|
2
|
2
58532001100
Outer Clutch Hub Milled 2001
94 |
58532001100 |
— | ||
|
3
|
3
58332026000 Damping element '9494 |
58332026000 |
US $12.14 |
||
|
4
|
4
58532000131 Primary gear wheel 31-t 200194 |
58532000131 |
US $90.08 |
||
|
5
|
5
58532000079 Clutch wheel 79-t 200194 |
58532000079 |
US $507.45 |
||
|
6
|
6
58332028000 Bracket 57 x 132 x 1,5 '9494 |
58332028000 |
US $7.48 |
||
|
7
|
7
58332112000 Steel disk 1,5 mm lc4'9494 |
58332112000 |
US $12.12 |
||
|
8
|
8
58332011300 Lining disk 2,7mm fcc 0294 |
58332011300 |
US $26.47 |
||
|
10
|
10
58532002000
Inner Clutch Hub Rallye 2001
94 |
58532002000 |
— | ||
|
11
|
11
58332018000
Lock washer '94
94 |
58332018000 |
— | ||
|
12
|
12
0936181505 Hexagon Nut Din0936-M18X1,5 R94 |
0936181505 |
US $7.60 |
||
|
13
|
13
58332003200 Pressure Cap Lc4/lc4-E 0494 |
58332003200 |
US $86.55 |
||
| replacement | |||||
|
13
|
13
58332003300 Pressure cap lc4/lc4-e 0494 |
58332003300 |
US $49.91 |
||
|
14
|
14
58332080000 Clutch spring 2,8 x 3794 |
58332080000 |
US $7.38 |
||
|
15
|
15
58132081000 Spring retainer 6,2 x 20 x 3,294 |
58132081000 |
US $1.79 |
||
|
16
|
16
0015060203
Hh Collar Screw M 6X20 Ws=8
94 |
0015060203 |
— | ||
| replacement | |||||
|
16
|
16
0025060206 Hh collar screw m6x20 tx3094 |
0025060206 |
US $1.97 |
||
|
25
|
25
58532017000
Push Rod Rallye 222Mm With Groove 2001
94 |
58532017000 |
— | ||
|
26
|
26
58332032000 Pressure bolt lc4'9494 |
58332032000 |
US $19.91 |
||
|
27
|
27
58332007000 Rivet 6 x 23 x 11,294 |
58332007000 |
US $3.03 |
||
|
28
|
28
57532013000 Supportwasher 22,2x35x3 harde.94 |
57532013000 |
US $22.51 |
||
|
29
|
29
0625060016 Groov.ball bear. 6001.2rsr c394 |
0625060016 |
US $23.89 |
||
|
30
|
30
0094020163 Pin din0094-2,0x1694 |
0094020163 |
US $1.31 |
||
|
31
|
31
50332070000 Inner ring with collar94 |
50332070000 |
US $47.52 |
||
|
32
|
32
56532095000 Needle bearing k26x30x22zw.kse94 |
56532095000 |
US $21.51 |
||
|
61
|
61
58532061044
Cylinder D=25Mm Cpl. Rallye 01
94 |
58532061044 |
— | ||
|
62
|
62
50332062000 Hollow screw cpl. m 10x1 '9894 |
50332062000 |
US $35.33 |
||
|
65
|
65
50332065053 Clutch release gasket 0,75mm94 |
50332065053 |
US $2.87 |
||
|
66
|
66
0401070003 Ball din5401-794 |
0401070003 |
US $0.66 |
||
|
68
|
68
42013226000 Cu-Seal Ring Din7603-10X16X194 |
42013226000 |
US $4.10 |
||
|
69
|
69
58532066000
Piston With O-Ring D=25Mm 2001
94 |
58532066000 |
— | ||
|
70
|
70
0912060303 Ah screw din0912-m 6x3094 |
0912060303 |
US $1.60 |
||
|
71
|
71
0984060163 Ah Screw Din6912-M 6X1694 |
0984060163 |
US $1.24 |
||
|
72
|
72
0912060253 Ah Screw Din0912-M 6X2594 |
0912060253 |
US $1.79 |
||
|
75
|
75
50329050000 Vent Injektion Hydr. Clutch94 |
50329050000 |
US $50.78 |
||
