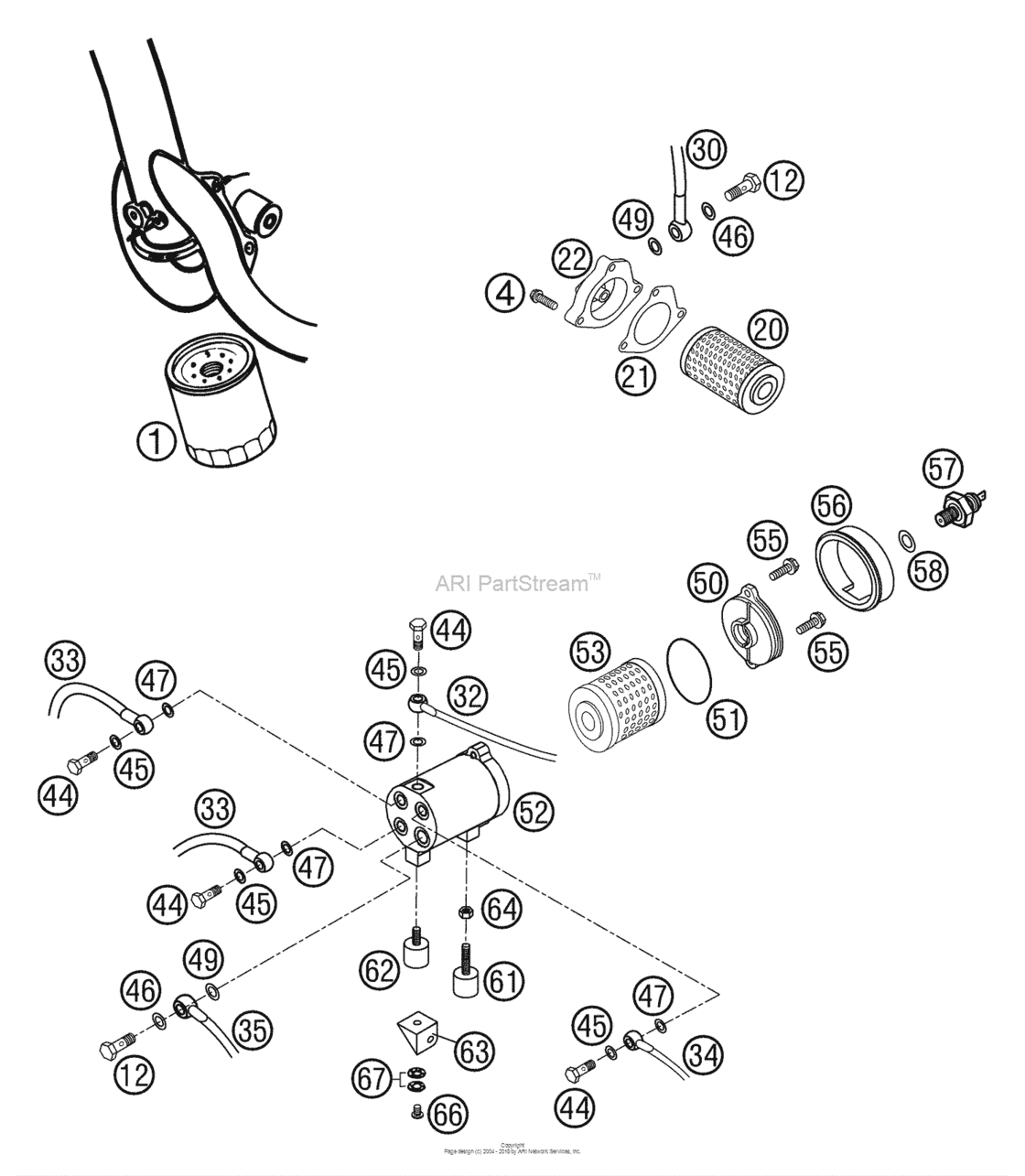

Oil Filter Diagram KTM 660 660 Rallye
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58338045000 Microfilter94 |
58338045000 |
US $28.99 |
||
| replacement | |||||
|
1
|
1
58338045100 Screw type filter94 |
58338045100 |
US $27.23 |
||
|
4
|
4
0015060253
Hh Collar Screw M6X25 Tx30
94 |
0015060253 |
— | ||
| replacement | |||||
|
4
|
4
0025060256 Hh collar screw m6x25 tx3094 |
0025060256 |
US $2.45 |
||
|
12
|
12
54313025000 Hollow screw m10 x 194 |
54313025000 |
US $6.48 |
||
|
20
|
20
58038005000 Oil Filter Long94 |
58038005000 |
US $14.45 |
||
| replacement | |||||
|
20
|
20
58038005100 Oil Filter Long94 |
58038005100 |
US $20.93 |
||
|
21
|
21
58530041000 Oil filter cover gasket 200194 |
58530041000 |
US $8.06 |
||
|
22
|
22
58030008700 Oil filter cover 200194 |
58030008700 |
US $42.82 |
||
|
30
|
30
58538052044
Oil L.oil Fil.-Oil Cool.1110Mm
94 |
58538052044 |
— | ||
|
32
|
32
58538046044
Oil L. Junc.b.-Crank Sh. 300Mm
94 |
58538046044 |
— | ||
|
33
|
33
58538044044
Oil L. Junc.b.-Engi.case 260Mm
94 |
58538044044 |
— | ||
|
34
|
34
58538045044
Oil L. Junc.b-Clutch C. 465Mm
94 |
58538045044 |
— | ||
|
35
|
35
58538054044
Oil L. Frame-Junc.box 91Mm 01
94 |
58538054044 |
— | ||
|
44
|
44
58038030000
Banjo Bolt M8X1
94 |
58038030000 |
— | ||
| replacement | |||||
|
44
|
44
58038029000 Banjo bolt m8x194 |
58038029000 |
US $3.72 |
||
|
45
|
45
0603082131 Copper gask.din7603- 8,2x13x194 |
0603082131 |
US $1.09 |
||
|
46
|
46
0603100141 Copper Gasket Din7603-10X14X194 |
0603100141 |
US $2.24 |
||
|
47
|
47
0603821220 Copper gasket 8,2x12x2 mm 200194 |
0603821220 |
US $1.12 |
||
|
49
|
49
0603101420 Copper gasket 10,2x14x2 mm 0194 |
0603101420 |
US $2.09 |
||
|
50
|
50
58538041000
Oil Filt.cover M10X1 Rallye 01
94 |
58538041000 |
— | ||
|
51
|
51
0770400025 O-ring 40,00x2,50 nbr 7094 |
0770400025 |
US $2.60 |
||
|
52
|
52
58538043000
Micro Filter Housing Rallye 01
94 |
58538043000 |
— | ||
|
53
|
53
59038046000 Oil Filter Short With Gasket94 |
59038046000 |
US $16.44 |
||
| replacement | |||||
|
53
|
53
59038046144 Oil filter short with gasket94 |
59038046144 |
US $16.44 |
||
|
55
|
55
0015050123
Hh collar screw m 5x12 ws=8
94 |
0015050123 |
— | ||
| replacement | |||||
|
55
|
55
0025050126 Hh collar screw m5x12 tx3094 |
0025050126 |
US $3.38 |
||
|
56
|
56
58538043010
Rubber Ring 45/52/16
94 |
58538043010 |
— | ||
|
57
|
57
58338091000 Oilpressure switch hella duke94 |
58338091000 |
US $35.82 |
||
|
58
|
58
0603100141 Copper Gasket Din7603-10X14X194 |
0603100141 |
US $2.24 |
||
|
61
|
61
58538010000
Rubber Grommet 20X11/m6X18 01
94 |
58538010000 |
— | ||
|
62
|
62
43205062100 Rubber grommet 20x15-m6x10 (1)94 |
43205062100 |
US $24.07 |
||
|
63
|
63
58538050000
Bracket For Micro Filter 2001
94 |
58538050000 |
— | ||
|
64
|
64
0934060003 Hexagon Nut Din0934-M 694 |
0934060003 |
US $0.43 |
||
|
66
|
66
0902060083 Ah oval screw iso 7380 m 6x894 |
0902060083 |
US $0.66 |
||
|
67
|
67
50233041000 Pair of washers m 6 nordlock94 |
50233041000 |
US $3.25 |
||
