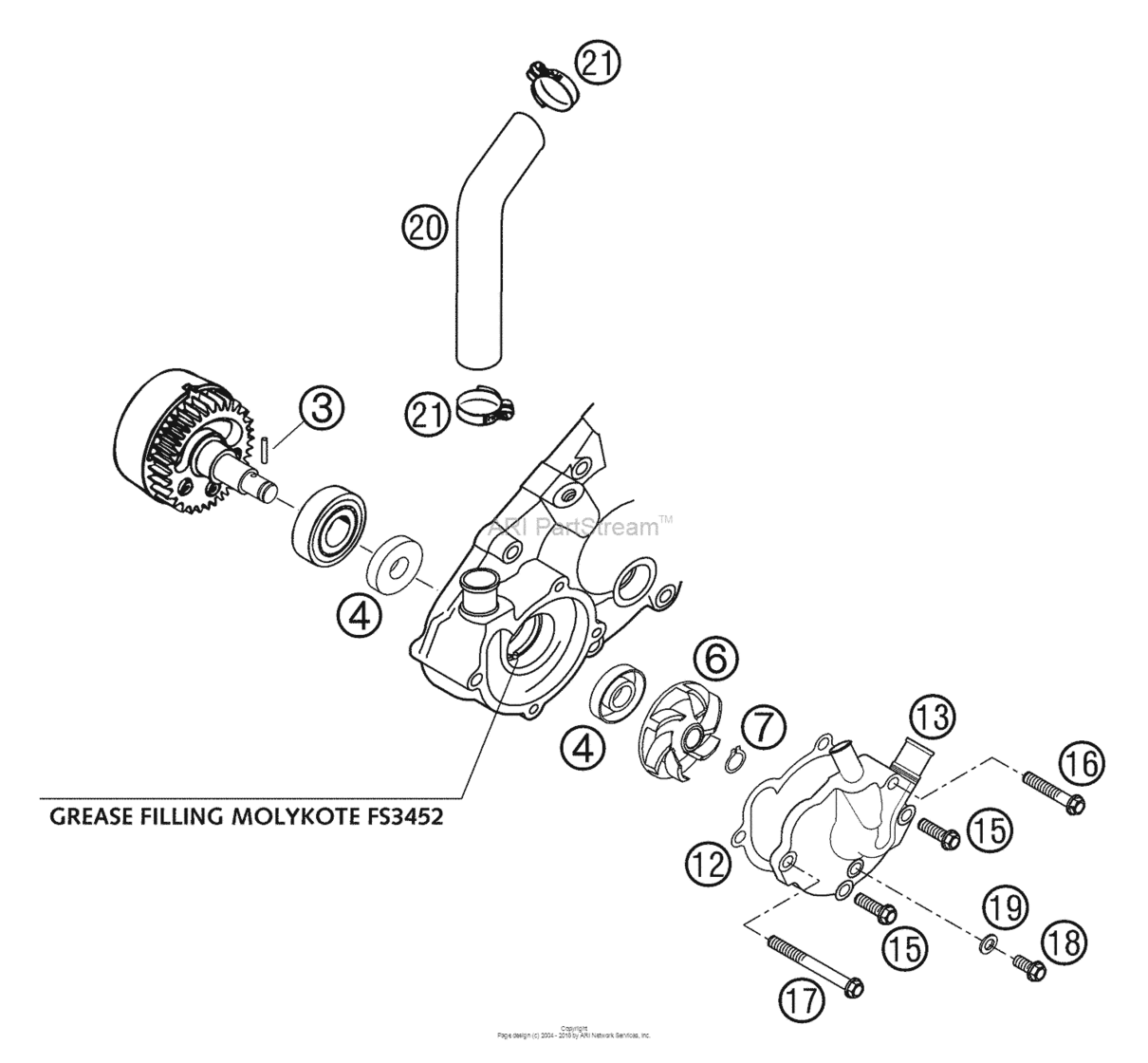

Water Pump Diagram KTM 660 660 Rallye
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
0402031780 Needle rol.din5402 nrb 3x17,8DEAERATE FOR FRONT PIPE |
0402031780 |
US $1.29 |
||
|
4
|
4
0760123070
Shaft Seal Ring 12X30X7 2001
DEAERATE FOR FRONT PIPE |
0760123070 |
— | ||
|
6
|
6
58535055000
Water Pump Wheel 2001
DEAERATE FOR FRONT PIPE |
58535055000 |
— | ||
|
7
|
7
0471100010 CirclipDEAERATE FOR FRONT PIPE |
0471100010 |
US $1.16 |
||
|
12
|
12
58535053000 Water pump cover gasket 2001DEAERATE FOR FRONT PIPE |
58535053000 |
US $3.71 |
||
|
13
|
13
58535052044
Water Pump Cover Cpl.etl 2001
DEAERATE FOR FRONT PIPE |
58535052044 |
— | ||
|
15
|
15
0015060203
Hh Collar Screw M 6X20 Ws=8
DEAERATE FOR FRONT PIPE |
0015060203 |
— | ||
| replacement | |||||
|
15
|
15
0025060206 Hh collar screw m6x20 tx30DEAERATE FOR FRONT PIPE |
0025060206 |
US $1.97 |
||
|
16
|
16
0015060353
Hh collar screw m 6x35 ws=8
DEAERATE FOR FRONT PIPE |
0015060353 |
— | ||
| replacement | |||||
|
16
|
16
0025060356 Hh collar screw m6x35 tx30DEAERATE FOR FRONT PIPE |
0025060356 |
US $6.15 |
||
|
17
|
17
0015060603
Hh collar screw m 6x60 ws=8
DEAERATE FOR FRONT PIPE |
0015060603 |
— | ||
| replacement | |||||
|
17
|
17
0025060606 Hh collar screw m6x60 tx30DEAERATE FOR FRONT PIPE |
0025060606 |
US $1.73 |
||
|
18
|
18
0015060103
Hh collar screw m 6x10 ws=8
DEAERATE FOR FRONT PIPE |
0015060103 |
— | ||
| replacement | |||||
|
18
|
18
0025060106 Hh collar screw m6x10 tx30DEAERATE FOR FRONT PIPE |
0025060106 |
US $1.58 |
||
|
19
|
19
0603061001 Cu-Seal Ring Din7603-6X10X1DEAERATE FOR FRONT PIPE |
0603061001 |
US $2.64 |
||
|
20
|
20
58535020001
Preformed H. 18X25 Wapu-Cyl.01
DEAERATE FOR FRONT PIPE |
58535020001 |
— | ||
|
21
|
21
10001020000 Hose Clamp 18-29DEAERATE FOR FRONT PIPE |
10001020000 |
US $4.71 |
||
