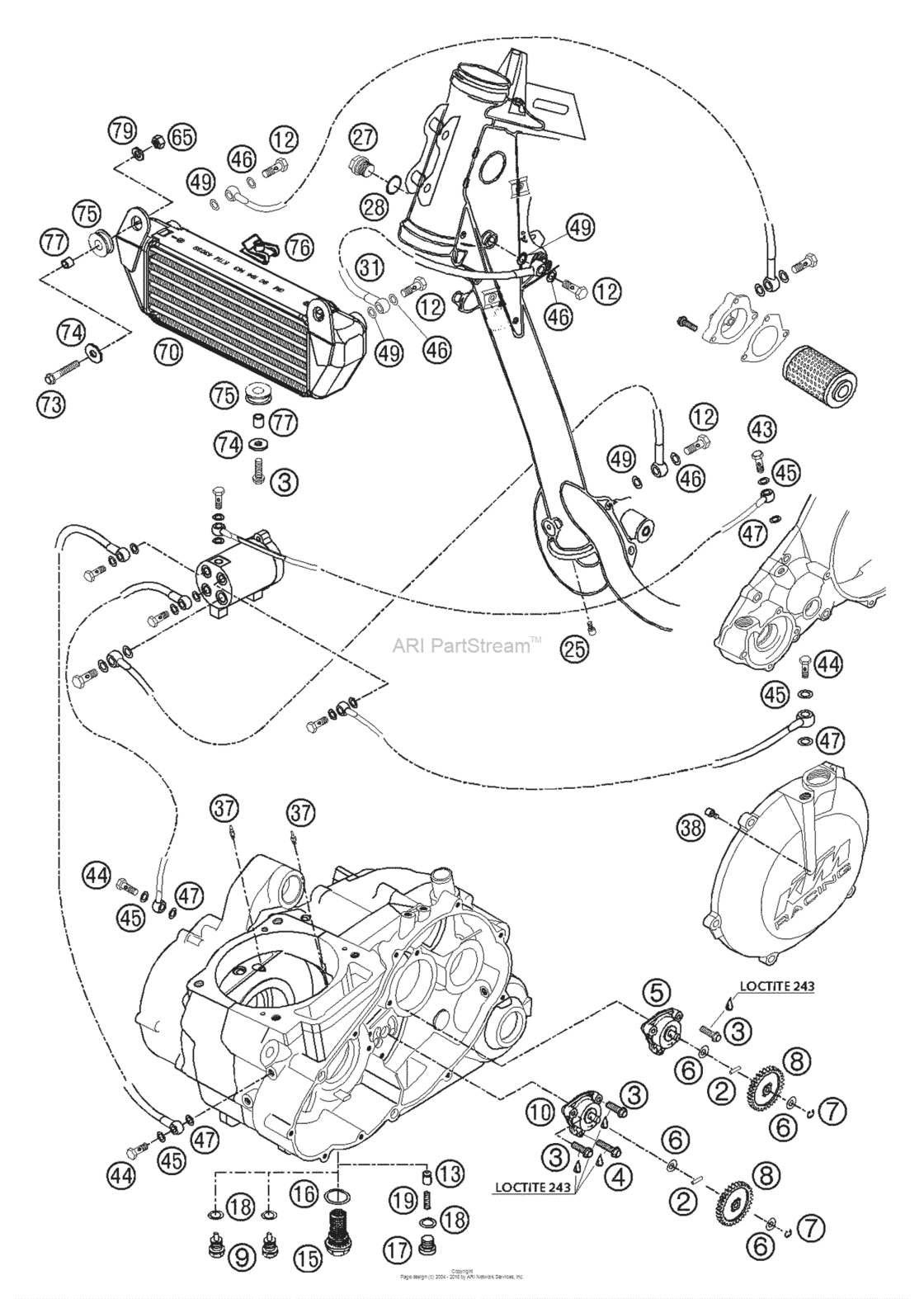

Lubricating System Diagram KTM 660 660 Rallye Factory
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
0402251980 Needlerol.din5402 Nra 2,5X19,8600/612/620/640/660 LC4 |
0402251980 |
US $2.02 |
||
|
3
|
3
0015060203
Hh Collar Screw M 6X20 Ws=8
600/612/620/640/660 LC4 |
0015060203 |
— | ||
| replacement | |||||
|
3
|
3
0025060206 Hh collar screw m6x20 tx30600/612/620/640/660 LC4 |
0025060206 |
US $1.97 |
||
|
4
|
4
0015060253
Hh Collar Screw M6X25 Tx30
600/612/620/640/660 LC4 |
0015060253 |
— | ||
| replacement | |||||
|
4
|
4
0025060256 Hh collar screw m6x25 tx30600/612/620/640/660 LC4 |
0025060256 |
US $2.45 |
||
|
5
|
5
58038007700 Oil pump mikuni g-73-10600/612/620/640/660 LC4 |
58038007700 |
US $85.97 |
||
|
6
|
6
58038007755 Stop Disk 8,1 X 15 X 0,5600/612/620/640/660 LC4 |
58038007755 |
US $1.04 |
||
|
7
|
7
0799060000 Tab washer din6799-rs 6,0600/612/620/640/660 LC4 |
0799060000 |
US $0.66 |
||
|
8
|
8
58438001000 Oil pump gear 26-t600/612/620/640/660 LC4 |
58438001000 |
US $15.15 |
||
|
9
|
9
58030021000
Oildrain Plug With Magnet
600/612/620/640/660 LC4 |
58030021000 |
— | ||
| replacement | |||||
|
9
|
9
58030021100 Oildrain Plug With Magnet600/612/620/640/660 LC4 |
58030021100 |
US $12.02 |
||
|
10
|
10
58538007000
Oil Pump Mikuni G-185 660 99
600/612/620/640/660 LC4 |
58538007000 |
— | ||
|
12
|
12
54313025000 Hollow screw m10 x 1600/612/620/640/660 LC4 |
54313025000 |
US $6.48 |
||
|
13
|
13
58038028000 Valve piston d=10mm600/612/620/640/660 LC4 |
58038028000 |
US $38.76 |
||
|
15
|
15
58038019100
Oil drain plug m22x1,5
600/612/620/640/660 LC4 |
58038019100 |
— | ||
|
16
|
16
58038017100 Cu-seal ring din7603-22x27x2600/612/620/640/660 LC4 |
58038017100 |
US $3.89 |
||
|
17
|
17
0908120153 Plug din0908-m12x1,5600/612/620/640/660 LC4 |
0908120153 |
US $3.81 |
||
|
18
|
18
58038022000 Cu-Seal Ring Din7603-12X18X1,5600/612/620/640/660 LC4 |
58038022000 |
US $1.97 |
||
|
19
|
19
58538023000 Oil pres.spring 5 bar red 2001600/612/620/640/660 LC4 |
58538023000 |
US $7.99 |
||
|
25
|
25
0984060103 Ah screw din7984-m 6x10600/612/620/640/660 LC4 |
0984060103 |
US $0.65 |
||
|
27
|
27
0910160153 Plug din0910-m16x1,5600/612/620/640/660 LC4 |
0910160153 |
US $6.83 |
||
|
28
|
28
0603162220 Cu-seal ring 16x22x2600/612/620/640/660 LC4 |
0603162220 |
US $1.65 |
||
|
31
|
31
58538053044
Oil L. Oil Cooler-Frame 295Mm
600/612/620/640/660 LC4 |
58538053044 |
— | ||
|
37
|
37
60030064090
Oil Jet 90 M6X0,75 Ws8 03
600/612/620/640/660 LC4 |
60030064090 |
— | ||
|
38
|
38
56331145075
Starting Jet
600/612/620/640/660 LC4 |
56331145075 |
— | ||
|
43
|
43
59038029000 Jet screw "100" m8x1 ws=12600/612/620/640/660 LC4 |
59038029000 |
US $7.51 |
||
|
44
|
44
58038030000
Banjo Bolt M8X1
600/612/620/640/660 LC4 |
58038030000 |
— | ||
| replacement | |||||
|
44
|
44
58038029000 Banjo bolt m8x1600/612/620/640/660 LC4 |
58038029000 |
US $3.72 |
||
|
45
|
45
0603082131 Copper gask.din7603- 8,2x13x1600/612/620/640/660 LC4 |
0603082131 |
US $1.09 |
||
|
46
|
46
0603100141 Copper Gasket Din7603-10X14X1600/612/620/640/660 LC4 |
0603100141 |
US $2.24 |
||
|
47
|
47
0603821220 Copper gasket 8,2x12x2 mm 2001600/612/620/640/660 LC4 |
0603821220 |
US $1.12 |
||
|
49
|
49
0603101420 Copper gasket 10,2x14x2 mm 01600/612/620/640/660 LC4 |
0603101420 |
US $2.09 |
||
|
65
|
65
0985060003 Self Lock. Nut Din0985-M 6600/612/620/640/660 LC4 |
0985060003 |
US $2.60 |
||
|
70
|
70
58538052000
Oil Cooler Rallye 2001
600/612/620/640/660 LC4 |
58538052000 |
— | ||
|
73
|
73
0015060353
Hh collar screw m 6x35 ws=8
600/612/620/640/660 LC4 |
0015060353 |
— | ||
| replacement | |||||
|
73
|
73
0025060356 Hh collar screw m6x35 tx30600/612/620/640/660 LC4 |
0025060356 |
US $6.15 |
||
|
74
|
74
0021060003 Washer Din9021-A 6,4600/612/620/640/660 LC4 |
0021060003 |
US $3.26 |
||
|
75
|
75
31008060000 Rubber Sleeve D=8Mm Open600/612/620/640/660 LC4 |
31008060000 |
US $1.09 |
||
|
76
|
76
50235033300
Snap-nut holder m6 kp142
600/612/620/640/660 LC4 |
50235033300 |
— | ||
| replacement | |||||
|
76
|
76
54603048100 Range Change Metal Nut M6600/612/620/640/660 LC4 |
54603048100 |
US $5.27 |
||
|
77
|
77
54431032050 Spacer bushing 6x8x8,5600/612/620/640/660 LC4 |
54431032050 |
US $1.60 |
||
|
79
|
79
0125060003 Washer Din0125-A 6,4600/612/620/640/660 LC4 |
0125060003 |
US $0.37 |
||
