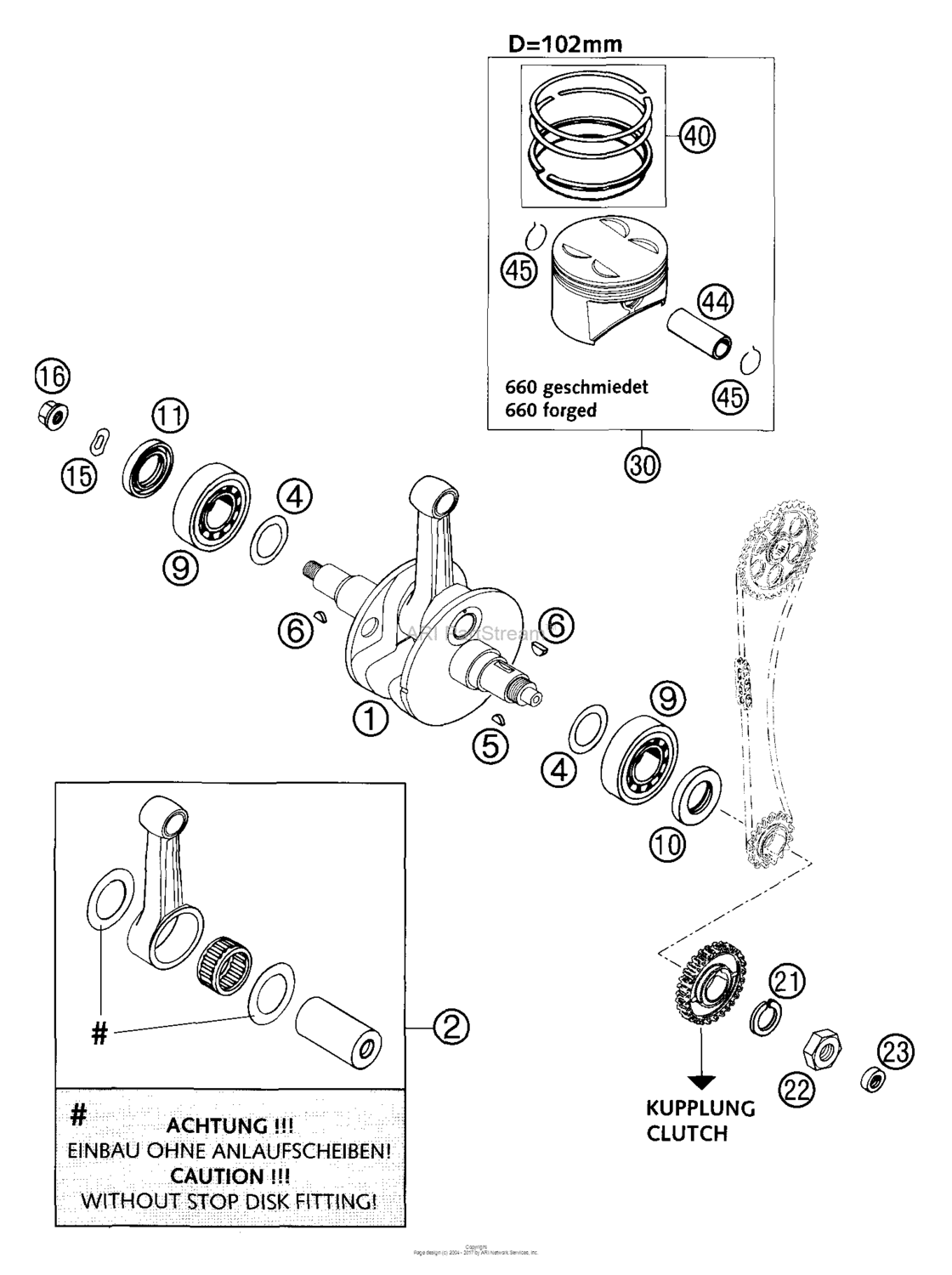

Crankshaft, Piston Diagram KTM 660 660 SMC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57330018000
Crankshaft 80Stroke Kickst. 02
FOR AUTO-DECOMPR. '95 |
57330018000 |
— | ||
|
2
|
2
58530015044
Connecting Rod Repair Set Lc4 640/660 Ccm L=141,5Mm
FOR AUTO-DECOMPR. '95 |
58530015044 |
— | ||
|
4
|
4
56530081000 Shim washer 36x48x0,10FOR AUTO-DECOMPR. '95 |
56530081000 |
US $4.10 |
||
|
4
|
4
56530081100 Shim washer 36x48x0,15FOR AUTO-DECOMPR. '95 |
56530081100 |
US $1.28 |
||
|
4
|
4
56530081300 Shim washer 36x48x0,30FOR AUTO-DECOMPR. '95 |
56530081300 |
US $1.28 |
||
|
5
|
5
0888030050 Woodruff Key Din6888-3X5X13FOR AUTO-DECOMPR. '95 |
0888030050 |
US $2.60 |
||
|
6
|
6
6946005 Woodruff Key 5X6,5 HardedFOR AUTO-DECOMPR. '95 |
6946005 |
US $0.92 |
||
|
9
|
9
56530123000 Cyl.roller bear. nj 207 ecp c3FOR AUTO-DECOMPR. '95 |
56530123000 |
US $92.29 |
||
|
10
|
10
0760304071
Shaft Seal Ring 30X40X7 Bsl
FOR AUTO-DECOMPR. '95 |
0760304071 |
— | ||
|
11
|
11
0760304772 Sh.seal Ring 30X47X7 Bsl VitonFOR AUTO-DECOMPR. '95 |
0760304772 |
US $26.23 |
||
|
15
|
15
0137120000 Spring washer din0137-b12FOR AUTO-DECOMPR. '95 |
0137120000 |
US $0.39 |
||
|
16
|
16
51030028100 Collar Nut M12X1 Left Ws=17FOR AUTO-DECOMPR. '95 |
51030028100 |
US $10.35 |
||
|
21
|
21
58030019000 Locking ring vsk 20FOR AUTO-DECOMPR. '95 |
58030019000 |
US $1.70 |
||
|
22
|
22
0936200155 Hexagon nut din0936-m20x1,5FOR AUTO-DECOMPR. '95 |
0936200155 |
US $8.52 |
||
|
23
|
23
0760122270 Shaft Seal Ring 12 X 22 X 7 BFOR AUTO-DECOMPR. '95 |
0760122270 |
US $15.86 |
||
|
30
|
30
58530007300I
Piston i cpl. d=102mm 03
FOR AUTO-DECOMPR. '95 |
58530007300I |
— | ||
|
30
|
30
58530007300II
Piston ii cpl. d=102mm 03
FOR AUTO-DECOMPR. '95 |
58530007300II |
— | ||
|
40
|
40
58530031144
Pistonring Set Elko 660 Rallye
FOR AUTO-DECOMPR. '95 |
58530031144 |
— | ||
|
44
|
44
58330833000 Piston pin 22 x 13 x 60FOR AUTO-DECOMPR. '95 |
58330833000 |
US $47.82 |
||
|
45
|
45
58430074000 Circlip 22 x 1,6FOR AUTO-DECOMPR. '95 |
58430074000 |
US $9.45 |
