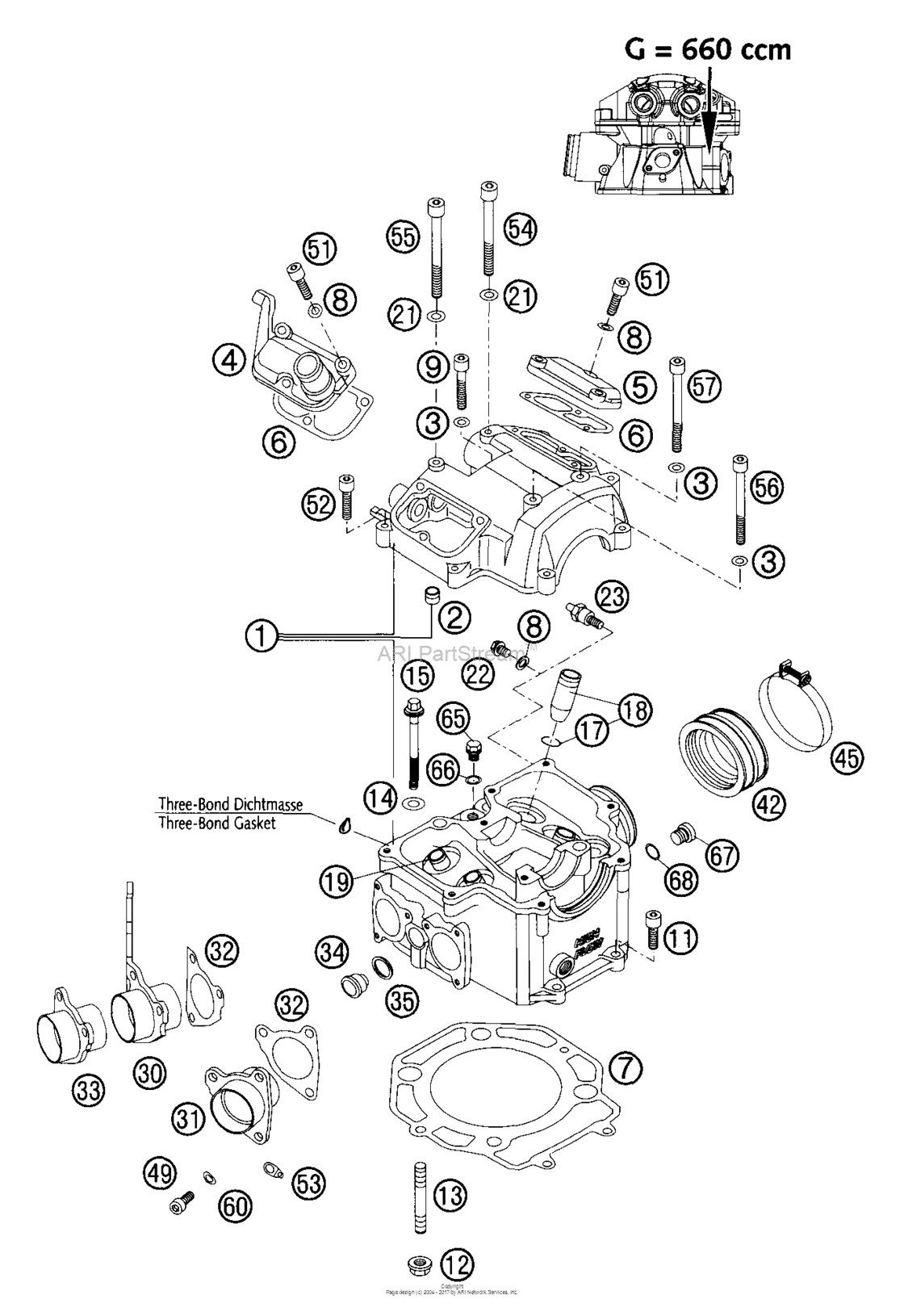

Cylinder Head Diagram KTM 660 660 SMC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5863602010023
Cylinder Head Cpl. Sm Sas 04
FOR AUTO-DECOMPR. '95 |
5863602010023 |
— | ||
|
2
|
2
58530090000 Dowel bushing 9,8x7,2x10FOR AUTO-DECOMPR. '95 |
58530090000 |
US $1.28 |
||
|
3
|
3
58036065100 Cu-seal ring 6 x 10 x 2FOR AUTO-DECOMPR. '95 |
58036065100 |
US $0.90 |
||
|
4
|
4
58036152600 Valve cover front '99FOR AUTO-DECOMPR. '95 |
58036152600 |
US $33.58 |
||
|
5
|
5
58036052000 Valve Cover RearFOR AUTO-DECOMPR. '95 |
58036052000 |
US $43.76 |
||
| replacement | |||||
|
5
|
5
58036052200 Valve cover rearFOR AUTO-DECOMPR. '95 |
58036052200 |
US $14.33 |
||
|
6
|
6
58036053000 Valve cover gasketFOR AUTO-DECOMPR. '95 |
58036053000 |
US $4.71 |
||
|
7
|
7
58530036000 Cylinder head gasket 102,3mmFOR AUTO-DECOMPR. '95 |
58530036000 |
US $64.04 |
||
|
8
|
8
0603061001 Cu-Seal Ring Din7603-6X10X1FOR AUTO-DECOMPR. '95 |
0603061001 |
US $2.64 |
||
|
9
|
9
0912060353 Ah Screw Din0912-M 6X35FOR AUTO-DECOMPR. '95 |
0912060353 |
US $2.09 |
||
|
11
|
11
0912060253 Ah Screw Din0912-M 6X25FOR AUTO-DECOMPR. '95 |
0912060253 |
US $1.79 |
||
|
12
|
12
49030028000 Collar nut m8FOR AUTO-DECOMPR. '95 |
49030028000 |
US $2.09 |
||
|
13
|
13
54330043000 Stud din0835-m 8x40(600/612/620/625/640/660 LC4) |
54330043000 |
US $3.79 |
||
|
14
|
14
58036098000 Cu-seal ring 10 x 20 x 1(600/612/620/625/640/660 LC4) |
58036098000 |
US $1.22 |
||
|
15
|
15
58036099100 Collar screw m10x80 ws=13 10.9(600/612/620/625/640/660 LC4) |
58036099100 |
US $8.87 |
||
|
17
|
17
0993012000 Circlip Din7993-Rw12(600/612/620/625/640/660 LC4) |
0993012000 |
US $2.11 |
||
|
18
|
18
58036026644 Valve guide intake cpl.(600/612/620/625/640/660 LC4) |
58036026644 |
US $14.43 |
||
|
19
|
19
58036126644 Valve guide exhaust cpl.(600/612/620/625/640/660 LC4) |
58036126644 |
US $14.43 |
||
|
21
|
21
0603070122 Cu-seal ring din7603- 7x12x2(600/612/620/625/640/660 LC4) |
0603070122 |
US $1.21 |
||
|
22
|
22
0015060083
Hh collar screw m 6x8 ws=8
(600/612/620/625/640/660 LC4) |
0015060083 |
— | ||
| replacement | |||||
|
22
|
22
0025060086 Hh collar screw m6x8 tx30(600/612/620/625/640/660 LC4) |
0025060086 |
US $1.39 |
||
|
23
|
23
58336020190 Vacuum conection m6/3mm '97(600/612/620/625/640/660 LC4) |
58336020190 |
US $3.88 |
||
|
30
|
30
58436039100 Exhaust flange cpl. r/s sas 04(600/612/620/625/640/660 LC4) |
58436039100 |
US $43.79 |
||
|
31
|
31
58036140100 Exhaust flange l/s(600/612/620/625/640/660 LC4) |
58036140100 |
US $24.09 |
||
|
32
|
32
58036041000 Exhaust flange gasket(600/612/620/625/640/660 LC4) |
58036041000 |
US $4.71 |
||
|
33
|
33
58036040100 Exhaust flange r/s 04(600/612/620/625/640/660 LC4) |
58036040100 |
US $27.71 |
||
|
34
|
34
58336024000 Plug sas bore(600/612/620/625/640/660 LC4) |
58336024000 |
US $2.92 |
||
|
35
|
35
58436054000 Cu-seal ring 12 x 16 x 2(600/612/620/625/640/660 LC4) |
58436054000 |
US $1.19 |
||
|
42
|
42
58536044000 Intake boot rallye 2001(600/612/620/625/640/660 LC4) |
58536044000 |
US $42.67 |
||
|
45
|
45
59030061000 Clamp d=56mm b=9mm m4x25(600/612/620/625/640/660 LC4) |
59030061000 |
US $4.45 |
||
|
49
|
49
0912060163 Ah Screw Din0912-M 6X16(600/612/620/625/640/660 LC4) |
0912060163 |
US $1.29 |
||
|
51
|
51
0912060203 Ah Screw Din0912-M 6X20(600/612/620/625/640/660 LC4) |
0912060203 |
US $1.04 |
||
|
52
|
52
0912060253 Ah Screw Din0912-M 6X25(600/612/620/625/640/660 LC4) |
0912060253 |
US $1.79 |
||
|
53
|
53
51005074000 Retaining plate(600/612/620/625/640/660 LC4) |
51005074000 |
US $2.11 |
||
|
54
|
54
0912070553
Ah screw din0912-m 7x55 12.9
(600/612/620/625/640/660 LC4) |
0912070553 |
— | ||
|
55
|
55
0912070603 Ah screw din0912-m 7x60 12.9(600/612/620/625/640/660 LC4) |
0912070603 |
US $7.72 |
||
|
56
|
56
0912060653 Ah Screw Din0912-M 6X65(600/612/620/625/640/660 LC4) |
0912060653 |
US $1.84 |
||
|
57
|
57
0912060703 Ah screw din0912-m 6x70(600/612/620/625/640/660 LC4) |
0912060703 |
US $1.79 |
||
|
60
|
60
0137060003 Spring Washer Din0137-B 6(600/612/620/625/640/660 LC4) |
0137060003 |
US $0.43 |
||
|
65
|
65
0910100003 Plug din0910-m 10x1(600/612/620/625/640/660 LC4) |
0910100003 |
US $4.39 |
||
|
66
|
66
0603100141 Copper Gasket Din7603-10X14X1(600/612/620/625/640/660 LC4) |
0603100141 |
US $2.24 |
||
|
67
|
67
0908120153 Plug din0908-m12x1,5(600/612/620/625/640/660 LC4) |
0908120153 |
US $3.81 |
||
|
68
|
68
0770100020 O-ring 10,00x2,00 silcone(600/612/620/625/640/660 LC4) |
0770100020 |
US $2.02 |
||
