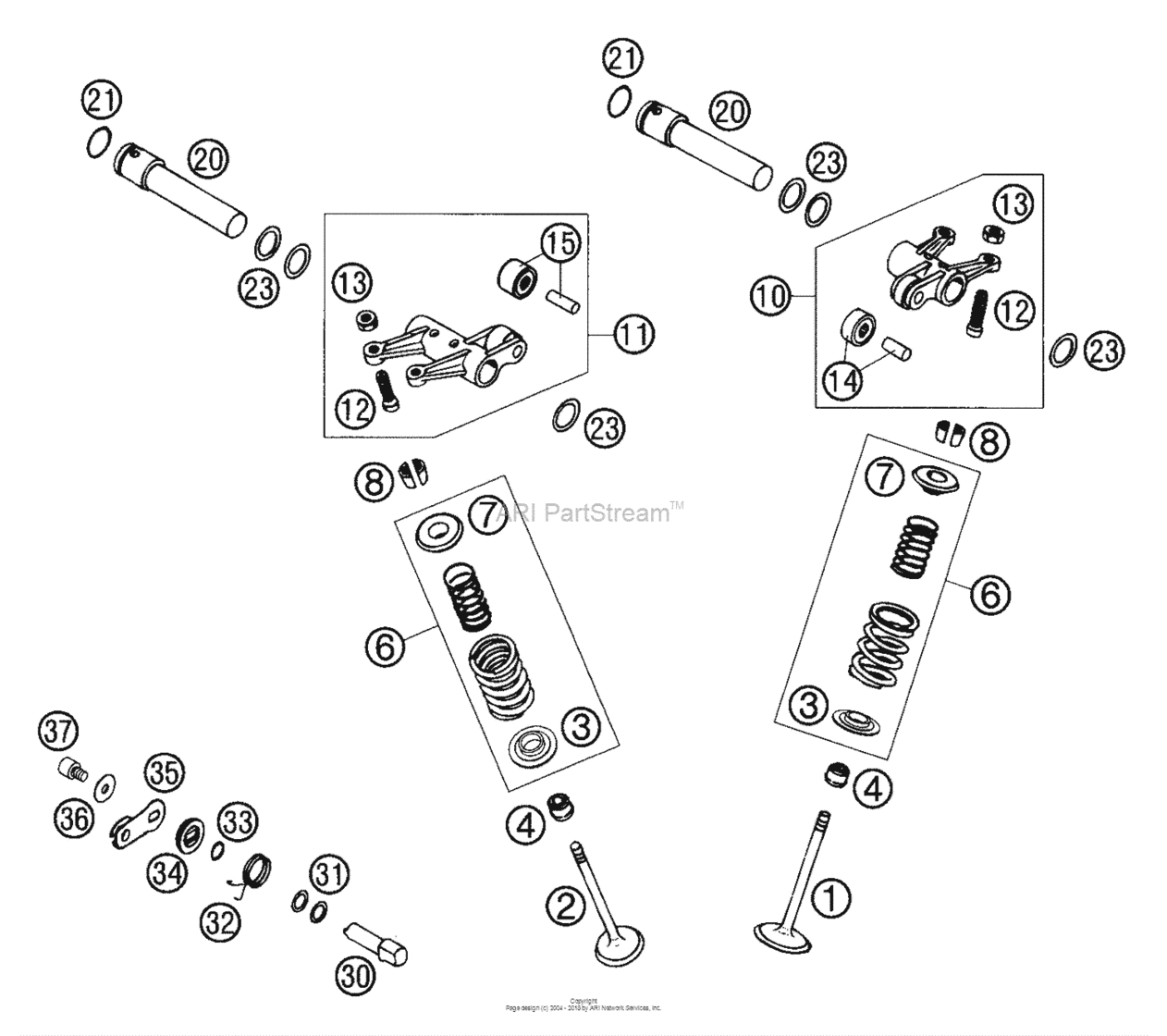

Valve Drive Diagram KTM 660 660 SMC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58036030000
Intake valve d=36 mm
(600/612/620/625/640/660 LC4) |
58036030000 |
— | ||
|
2
|
2
58536031000 Exhaust valve d=32 mm 2001(600/612/620/625/640/660 LC4) |
58536031000 |
US $63.19 |
||
|
3
|
3
57336036000 Valve spring holder graded(600/612/620/625/640/660 LC4) |
57336036000 |
US $25.38 |
||
|
4
|
4
58036028000 Valve-steam sealing(600/612/620/625/640/660 LC4) |
58036028000 |
US $9.45 |
||
|
6
|
6
58536029044
Valve spring kit rallye 2001
(600/612/620/625/640/660 LC4) |
58536029044 |
— | ||
|
7
|
7
58036032700 Valve-spring retainer alu '95(600/612/620/625/640/660 LC4) |
58036032700 |
US $8.60 |
||
|
8
|
8
58036033000 Valve collet mk7(600/612/620/625/640/660 LC4) |
58036033000 |
US $4.49 |
||
|
10
|
10
58536060044
Rocker Arm Intake Cpl. 2005
(600/612/620/625/640/660 LC4) |
58536060044 |
— | ||
| replacement | |||||
|
10
|
10
58536060144
Rocker arm intake cpl. 2005
(600/612/620/625/640/660 LC4) |
58536060144 |
— | ||
|
11
|
11
58536061044
Rocker Arm Exhaust Cpl. 2005
(600/612/620/625/640/660 LC4) |
58536061044 |
— | ||
| replacement | |||||
|
11
|
11
58536061144 Rocker arm exhaust cpl. 2005(600/612/620/625/640/660 LC4) |
58536061144 |
US $225.47 |
||
|
12
|
12
58036062600 Adjustment screw cpl. m 7x0,75(600/612/620/625/640/660 LC4) |
58036062600 |
US $25.25 |
||
|
13
|
13
0934070756 Hexagon nut din0934-m 7x0,75(600/612/620/625/640/660 LC4) |
0934070756 |
US $3.69 |
||
|
14
|
14
58036061090 Rocker arm roller cpl. intake(600/612/620/625/640/660 LC4) |
58036061090 |
US $41.46 |
||
|
15
|
15
58336061090 Rocker arm roller cpl. exhaust(600/612/620/625/640/660 LC4) |
58336061090 |
US $42.40 |
||
|
20
|
20
58536056100
Rocker arm shaft l=96mm 7,2mm
(600/612/620/625/640/660 LC4) |
58536056100 |
— | ||
|
21
|
21
58036095000 O-ring 15,08 x 2,62 nbr 70(600/612/620/625/640/660 LC4) |
58036095000 |
US $0.24 |
||
|
23
|
23
0988162202 Thrust wash.din0988-16x22x0,20(600/612/620/625/640/660 LC4) |
0988162202 |
US $0.85 |
||
|
23
|
23
0988162205 Thrust wash. din0988-16x22x0,5(600/612/620/625/640/660 LC4) |
0988162205 |
US $1.79 |
||
|
23
|
23
0988162210 Thrust washer din0988-16x22x1(600/612/620/625/640/660 LC4) |
0988162210 |
US $1.21 |
||
|
30
|
30
58036050100 Decompression shaft(600/612/620/625/640/660 LC4) |
58036050100 |
US $35.85 |
||
|
31
|
31
54334015000 Washer 10x14x0,5 steel(600/612/620/625/640/660 LC4) |
54334015000 |
US $0.39 |
||
|
31
|
31
54334015100 Washer 10x14x0,3 steel(600/612/620/625/640/660 LC4) |
54334015100 |
US $1.05 |
||
|
31
|
31
54334015200 Washer 10x14x0,15 steel(600/612/620/625/640/660 LC4) |
54334015200 |
US $1.19 |
||
|
32
|
32
58036059200 Decomp.lever spring(600/612/620/625/640/660 LC4) |
58036059200 |
US $11 |
||
|
33
|
33
0770100221 O-ring 10,00x2,20 silicone(600/612/620/625/640/660 LC4) |
0770100221 |
US $1.04 |
||
|
34
|
34
58036048000 Cover disk(600/612/620/625/640/660 LC4) |
58036048000 |
US $2.94 |
||
|
35
|
35
58036049500 Decompression lever(600/612/620/625/640/660 LC4) |
58036049500 |
US $5.27 |
||
|
36
|
36
0021060003 Washer Din9021-A 6,4(600/612/620/625/640/660 LC4) |
0021060003 |
US $3.26 |
||
|
37
|
37
0912060103 Ah screw din0912-m 6x10(600/612/620/625/640/660 LC4) |
0912060103 |
US $1.12 |
||
