	Description	OEM Part #	Price
1	1 7603602004452 Cylinder Head Cpl TX30	7603602004452	US $642.23
2	2 76030036000 Cylinder Head Gasket TX30	76030036000	US $80.07
3	3 0474050100 Grooved pin din1474 5x10 TX30	0474050100	US $2.60
4	4 0835080256 Stud din0835-m 8x25 10.9 TX30	0835080256	US $2.72
5	5 60036026101 Valve giude exhaust TX30	60036026101	US $25.26
6	6 60036025101 Valve giude intake TX30	60036025101	US $9.69
7	7 60036078050 Shim 10,2x19x1,5mm 05 05	60036078050	US $3.89
8	8 75036079000 Cylinderhead screw m10x168ws14 05	75036079000	US $11.82
9	9 75035047000 Temperature sensor water 07 05	75035047000	US $42.11
10	10 0770100020 O-ring 10,00x2,00 silcone 05	0770100020	US $2.02
12	12 59030296000 Screw plug 05	59030296000	US $5.49
13	13 76036052051 Sealing Plug 05	76036052051	US $0.53
14	14 75036053000 Valve cover gasket 07 07	75036053000	US $25.18
15	15 75036052000 Valve cover 07 07	75036052000	US $54.72
16	16 75036052050 Breather cover 07 07	75036052050	US $8.26
18	18 0025050106 Collar screw m5x12 isa30 07	0025050106	US $0.82
19	19 0770150151 O-ring 15,00x1,50 viton 07	0770150151	US $2.60
20	20 75036055000 Valve cover screw 05 05	75036055000	US $3.50
21	21 75036052010 Decoupling element 07 07	75036052010	US $5.20
22	22 75036044000 Intake boot 07 07	75036044000	US $45.37
23	23 75036047000 Hose clamp gemi 70mm 07	75036047000	US $9.28
25	25 60036023100 Vacuum conection m6/0,5mm 07	60036023100	US $28.76
26	26 0025060256 Hh collar screw m6x25 tx30 TX30	0025060256	US $2.45
29	29 76030084000 Engine Breather Hose Cyl.head TX30	76030084000	US $12.43
30	30 00049200121 Clamp std dn20 TX30	00049200121	US $1.04
31	31 00049210121 Clamp 21x12 std-des TX30	00049210121	US $2.33

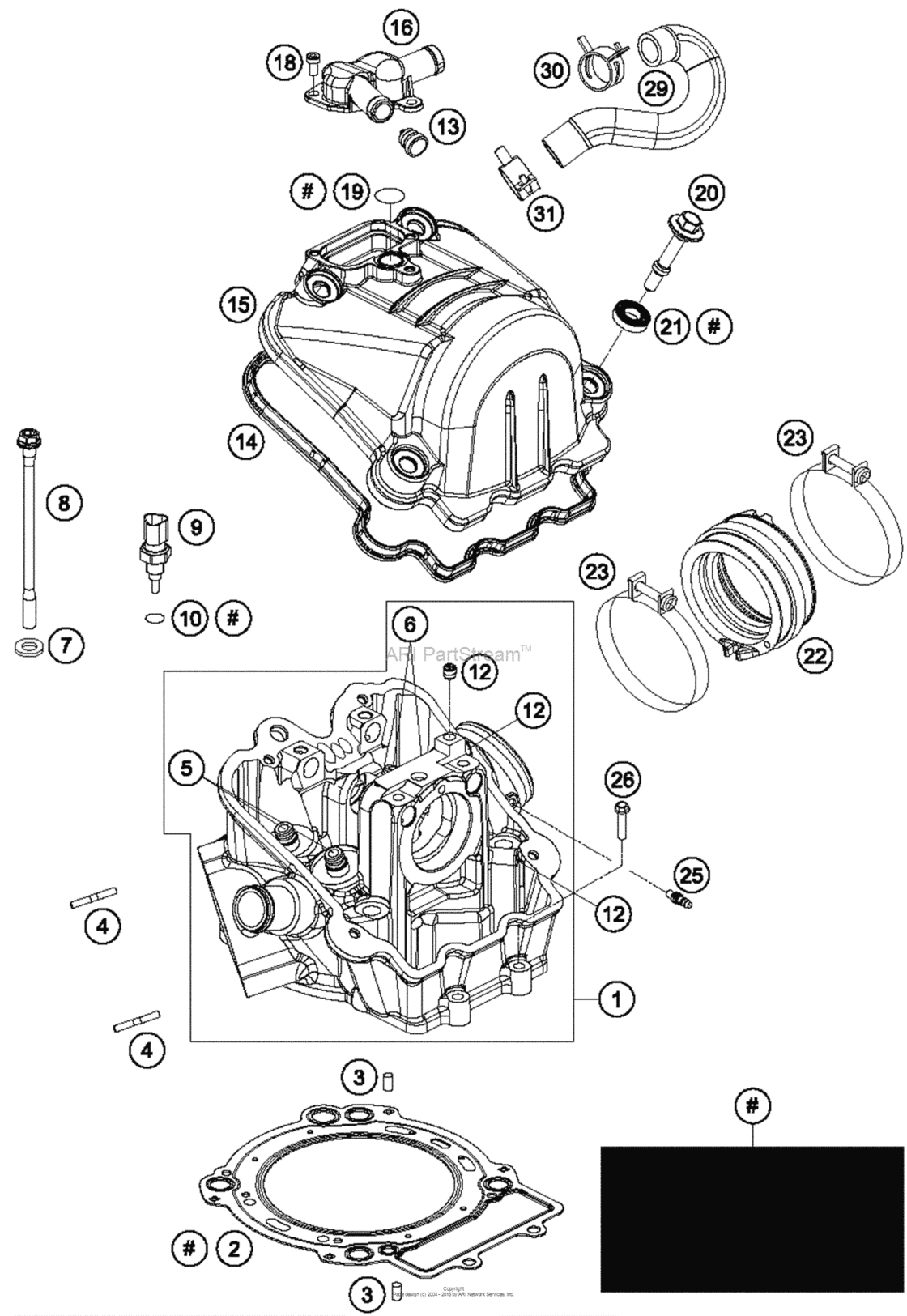

Cylinder Head Diagram KTM 690 690 Duke US/EU 18106906-940719

Cylinder Head Diagram KTM 690 690 Duke US/EU 18106906-940719
