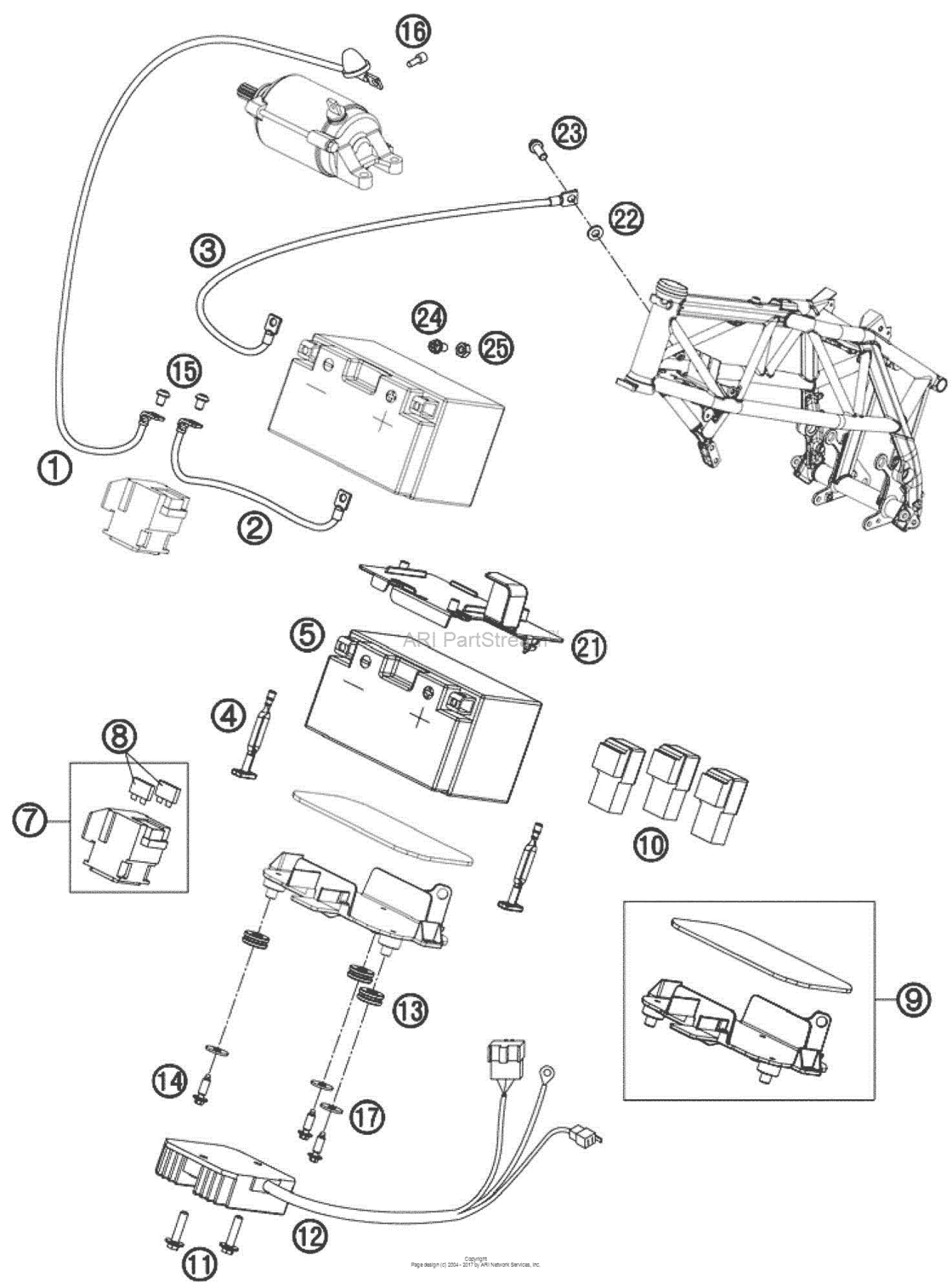

Battery Diagram KTM 690 690 Duke
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 690
- Model
- 690 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75011059000 Starter cable 0707 |
75011059000 |
US $15.54 |
||
|
2
|
2
75011059150 Battery-cable l=170mm07 |
75011059150 |
US $11.25 |
||
|
3
|
3
75011097000 Ground cable 0707 |
75011097000 |
US $11.66 |
||
|
4
|
4
75011054005 Bracket rubber for battery07 |
75011054005 |
US $6.55 |
||
|
5
|
5
58411053100 Battery 12v 8,6ah 0303 |
58411053100 |
US $324.07 |
||
|
7
|
7
60011058000 Starter relay 0303 |
60011058000 |
US $66.64 |
||
|
8
|
8
58011109130 Fuse 30 a03 |
58011109130 |
US $3.55 |
||
|
9
|
9
75011154033
Battery support cpl.
03 |
75011154033 |
— | ||
|
10
|
10
61111057000 Relay cm1a-r-12v-h80 0707 |
61111057000 |
US $21.27 |
||
|
11
|
11
0024060273 Collar screw m6x27 txTX |
0024060273 |
US $2.09 |
||
|
12
|
12
60011034100 Voltage regulatorTX |
60011034100 |
US $239.72 |
||
|
13
|
13
75011054010 Decoupling rubberTX |
75011054010 |
US $5.12 |
||
|
14
|
14
0017060203
Screw For Plastic K60X20 Sw6
WS=6 |
0017060203 |
— | ||
| replacement | |||||
|
14
|
14
0017060205 Screw For Plastic K60X20 Sw6WS=6 |
0017060205 |
US $2.24 |
||
|
15
|
15
0902060083 Ah oval screw iso 7380 m 6x8WS=6 |
0902060083 |
US $0.66 |
||
|
16
|
16
0912050083 Ah screw din 912 m 5x8WS=6 |
0912050083 |
US $0.58 |
||
|
17
|
17
0021060003 Washer Din9021-A 6,4WS=6 |
0021060003 |
US $3.26 |
||
|
21
|
21
75011054120
Battery support - top part
WS=6 |
75011054120 |
— | ||
|
22
|
22
58411098100 Contact washer m6 vsv-k6WS=6 |
58411098100 |
US $0.54 |
||
|
23
|
23
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
24
|
24
0025060106 Hh collar screw m6x10 tx30TX30 |
0025060106 |
US $1.58 |
||
|
25
|
25
0934060003 Hexagon Nut Din0934-M 6TX30 |
0934060003 |
US $0.43 |
||
