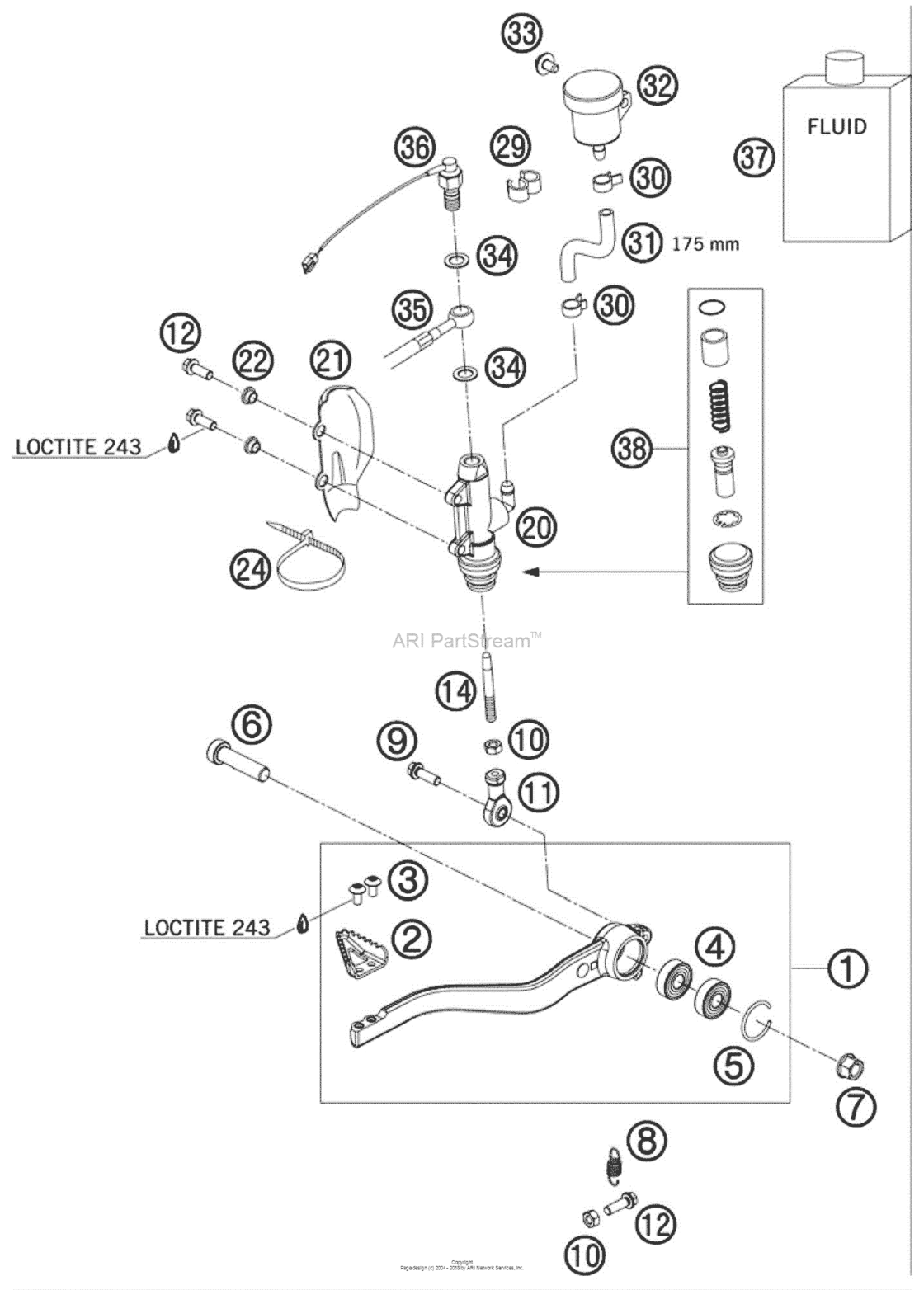

Rear Brake Control Diagram KTM 690 690 Duke
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 690
- Model
- 690 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7501305004401 Foot brake lever cpl. 0707 |
7501305004401 |
US $122.13 |
||
|
2
|
2
60013051000 Step plate foot brake lever 0303 |
60013051000 |
US $4.78 |
||
|
3
|
3
58605083010 Screw torx m5x10 0505 |
58605083010 |
US $1.70 |
||
|
4
|
4
0625060002 Ball bearing skf 6000-2rs105 |
0625060002 |
US $10.85 |
||
|
5
|
5
0993026500 Lock ring din7993-b2605 |
0993026500 |
US $2.57 |
||
|
6
|
6
0912100406
Ah screw din6912 m10x40 10.9
10.9 |
0912100406 |
— | ||
| replacement | |||||
|
6
|
6
0032100406S Ah-collar screw m10x40 isa4510.9 |
0032100406S |
US $3.04 |
||
|
7
|
7
54630044000 Collar nut m10 ws=13WS=13 |
54630044000 |
US $2.16 |
||
|
8
|
8
61013052000 Spring foot brake lever 0505 |
61013052000 |
US $2.70 |
||
|
9
|
9
0025060206S Hh collar screw m6x20 tx30TX30 |
0025060206S |
US $2.60 |
||
|
10
|
10
0934060003 Hexagon Nut Din0934-M 6TX30 |
0934060003 |
US $0.43 |
||
|
11
|
11
54603069000 Swivel head m6 foot brake lev.TX30 |
54603069000 |
US $37.83 |
||
|
12
|
12
59009062019 Special screw m6x19 ws=8 10.910.9 |
59009062019 |
US $1.22 |
||
|
14
|
14
54603068000 Pressure rod alu 250 '90'90 |
54603068000 |
US $5.22 |
||
|
20
|
20
54513101044 Main Brake Cylinder '89'89 |
54513101044 |
US $118.37 |
||
|
21
|
21
54513038000 Brake cyl. protector "brembo"'89 |
54513038000 |
US $6.09 |
||
|
22
|
22
50213161000 Collar bushing'89 |
50213161000 |
US $3.38 |
||
|
24
|
24
44011076200 Cable tie 200/3,6mm black'89 |
44011076200 |
US $0.39 |
||
|
29
|
29
55011022100 Clamp d=6/8mm, black'89 |
55011022100 |
US $1.07 |
||
|
30
|
30
58007017000 Ydnac clamp 10101 (9mm)'89 |
58007017000 |
US $1.84 |
||
|
31
|
31
58007016101 Hose For Reservoir 6X1,5(As Required) |
58007016101 |
US $17.49 |
||
|
32
|
32
54513030044 Brake Fluid Reservoir '89'89 |
54513030044 |
US $17.56 |
||
|
33
|
33
0024060106 Hh collar screw m6x10 tx30TX30 |
0024060106 |
US $4.35 |
||
|
34
|
34
0603100141 Copper Gasket Din7603-10X14X1TX30 |
0603100141 |
US $2.24 |
||
|
35
|
35
75013072000 Brake hose rear 20072007 |
75013072000 |
US $63.22 |
||
|
36
|
36
50311051100 Brake Light Switch Rear '98'98 |
50311051100 |
US $73.85 |
||
|
37
|
37
00062030000 Brake fluid dot5.1 0,25l'98 |
00062030000 |
US $14.35 |
||
|
38
|
38
54513150000 Repair kit piston 13mm'98 |
54513150000 |
US $40.17 |
||
