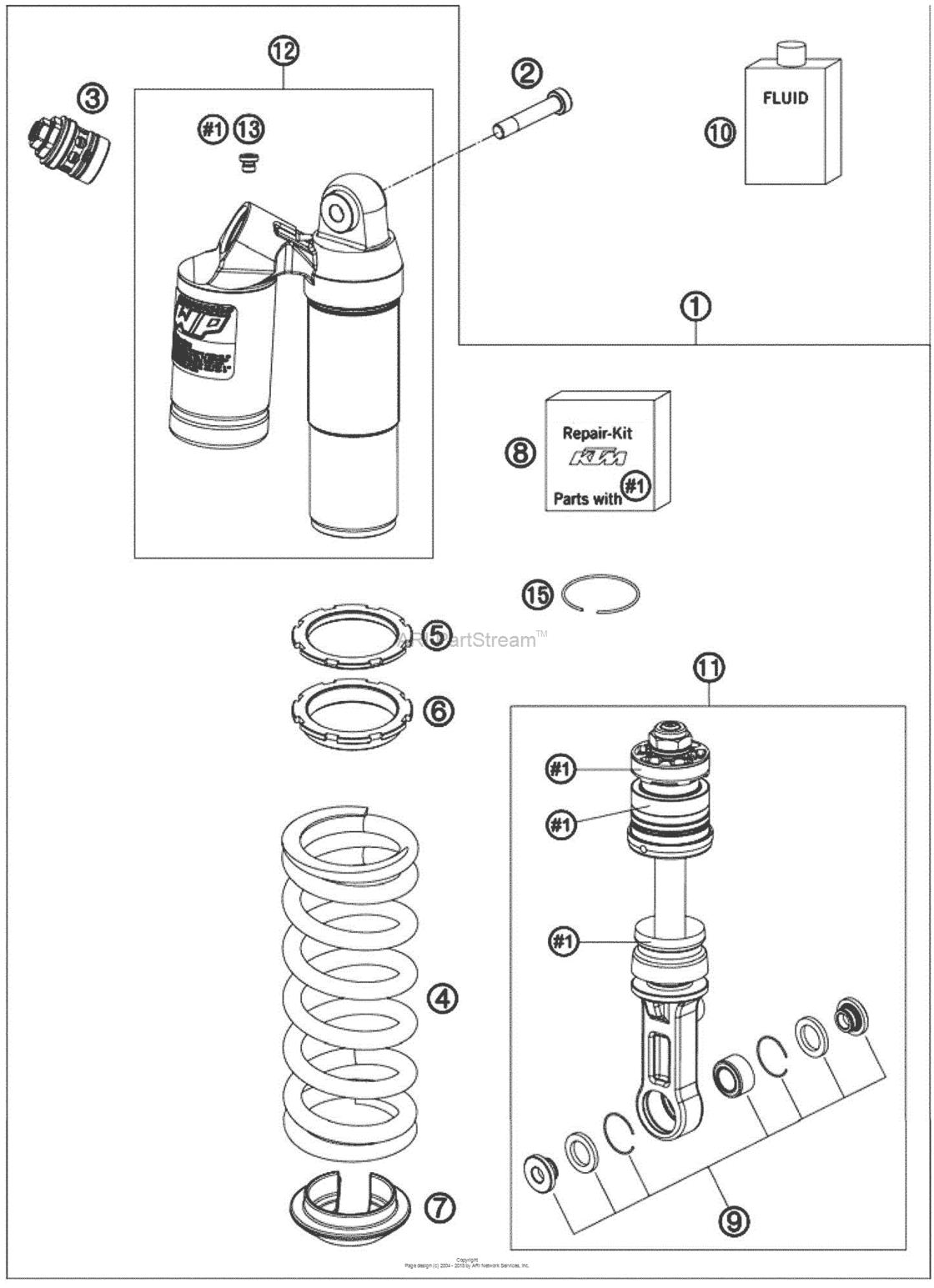

Shock Absorber Diagram KTM 690 690 Duke
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 690
- Model
- 690 Duke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15187E09
Monoshock 690 duke 09
09 |
15187E09 |
— | ||
|
2
|
2
75004016000 Screw m 10 l=53mm 0707 |
75004016000 |
US $3.08 |
||
|
3
|
3
50180213S9 Dcc-compr.damp.control cpl. 0505 |
50180213S9 |
US $263.65 |
||
|
4
|
4
91110012S Spring 185mm 70n/mm (61)(As Required) |
91110012S |
US $196.47 |
||
|
5
|
5
46180766 Counternut(As Required) |
46180766 |
US $44.35 |
||
|
6
|
6
46180855 Adjusting nut(As Required) |
46180855 |
US $50.71 |
||
|
7
|
7
46180396 Spring retainer h=15 d=28(As Required) |
46180396 |
US $48.60 |
||
|
8
|
8
R15004 Repair kit gasket 0505 |
R15004 |
US $164.49 |
||
|
9
|
9
R15006
Repair kit bearings 07
07 |
R15006 |
— | ||
|
10
|
10
50180342S1
Shock Absorber Fluid 5 Lt
'03 |
50180342S1 |
— | ||
| replacement | |||||
|
10
|
10
50180751S1
Shock Absorber Fluid 5 Lt
'03 |
50180751S1 |
— | ||
|
11
|
11
46180654S8 Shock abs. bottom cpl. duke'03 |
46180654S8 |
US $883.18 |
||
|
12
|
12
46180807S1 Monoshock top part cpl. duke'03 |
46180807S1 |
US $883.18 |
||
|
13
|
13
50180095 Bleed plug r 1/8'03 |
50180095 |
US $9.15 |
||
|
15
|
15
46810010 Circlip 49x1,5'03 |
46810010 |
US $1.96 |
||
