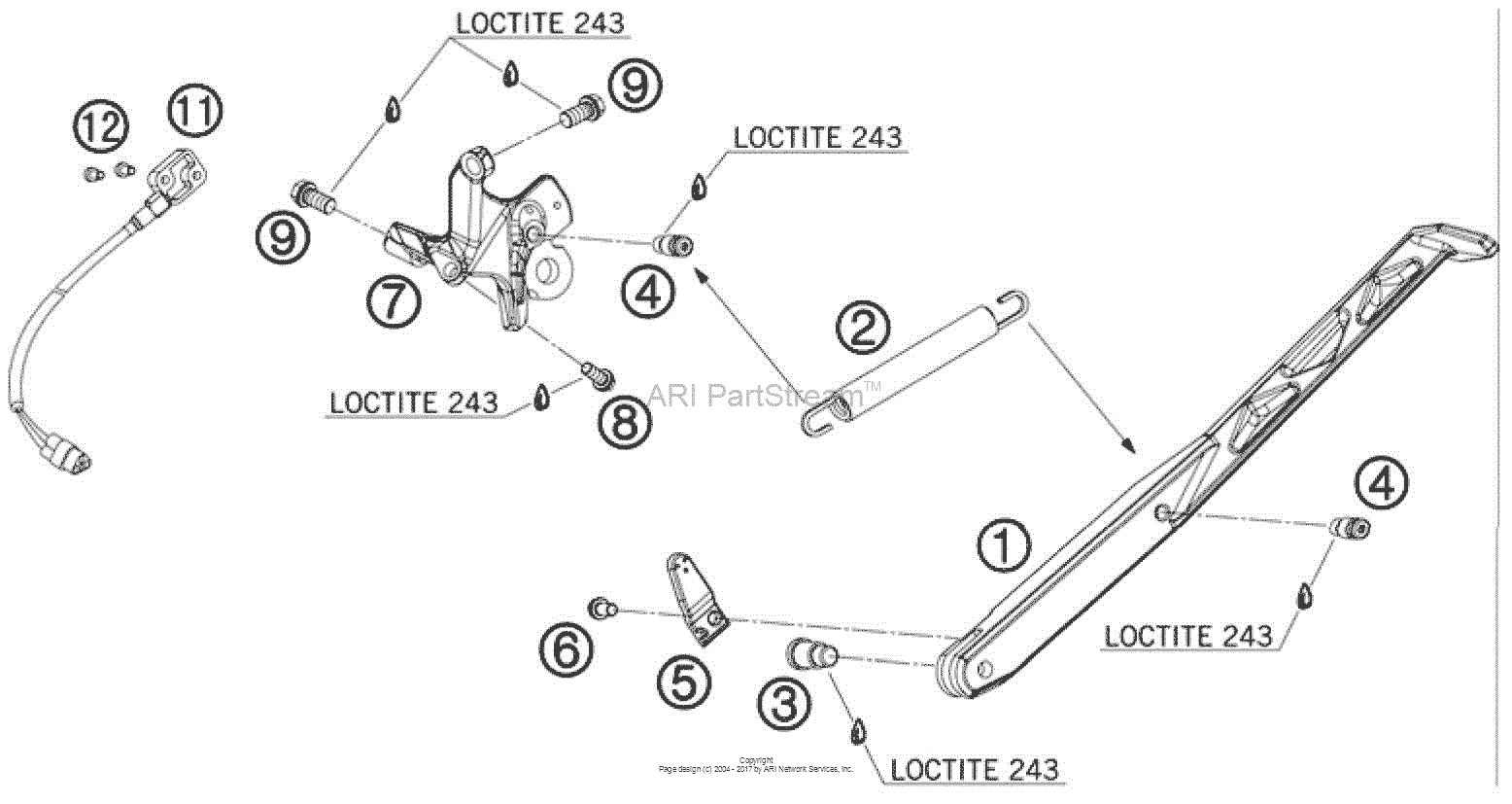

Side / Center Stand Diagram KTM 690 690 Duke
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 690
- Model
- 690 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7560302301001S Side stand 0808 |
7560302301001S |
US $89.81 |
||
|
2
|
2
61003024000 Spring l=116 mm 0505 |
61003024000 |
US $15.11 |
||
|
3
|
3
62503027100 Screw f. side stand m10x31,205 |
62503027100 |
US $8.50 |
||
| replacement | |||||
|
3
|
3
62503027200 Screw for side stand m10x31,205 |
62503027200 |
US $5.73 |
||
|
4
|
4
75603023011 Bolt f. side stand spring05 |
75603023011 |
US $11.63 |
||
| replacement | |||||
|
4
|
4
60303023111 Retaining Bolt05 |
60303023111 |
US $11.54 |
||
|
5
|
5
62503029050 Magnet holder 0505 |
62503029050 |
US $4.61 |
||
|
6
|
6
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
||
|
7
|
7
75603023053 Side stand support 0808 |
75603023053 |
US $86.33 |
||
|
8
|
8
59009062016 Special screw m6x16 ws=8 10.910.9 |
59009062016 |
US $1.09 |
||
|
9
|
9
0025080166 Hh collar screw m8x16 tx40TX40 |
0025080166 |
US $2.35 |
||
|
11
|
11
61011045000 Side stand sensor 0505 |
61011045000 |
US $52.22 |
||
|
12
|
12
0084040083 Cyl.head screw din0084-m 4x8 a05 |
0084040083 |
US $0.27 |
||
