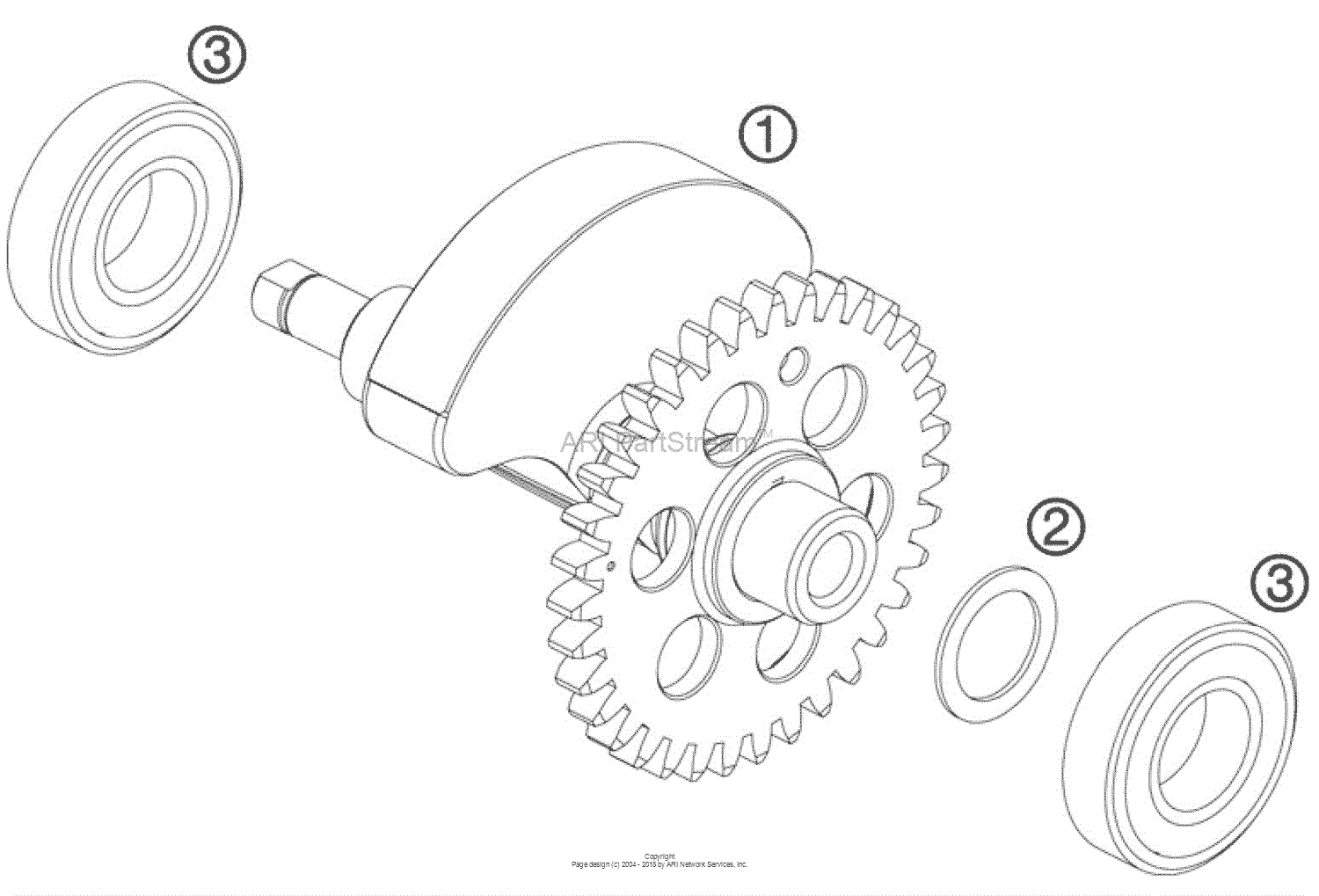

Balancer Shaft Diagram KTM 690 690 SMC
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 690
- Model
- 690 SMC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75030057144 Balancer shaft cpl03 |
75030057144 |
US $240.99 |
||
|
2
|
2
0988223201 Thrust washer din0988-22x32x,1(As required) |
0988223201 |
US $0.61 |
||
|
2
|
2
09882232015 Thrust washerdin0988-22x32x,15(As required) |
09882232015 |
US $1.31 |
||
|
2
|
2
0988223202 Thrust washer din0988-22x32x,2(As required) |
0988223202 |
US $1.31 |
||
|
2
|
2
0988223203 Thrust washer din0988-22x32x,3(As required) |
0988223203 |
US $1.31 |
||
|
3
|
3
0625062221
Ball bearing 62/22 c4
(As required) |
0625062221 |
— | ||
| replacement | |||||
|
3
|
3
0625062223 Ball bearing 62/22 c4(As required) |
0625062223 |
US $22.15 |
||
