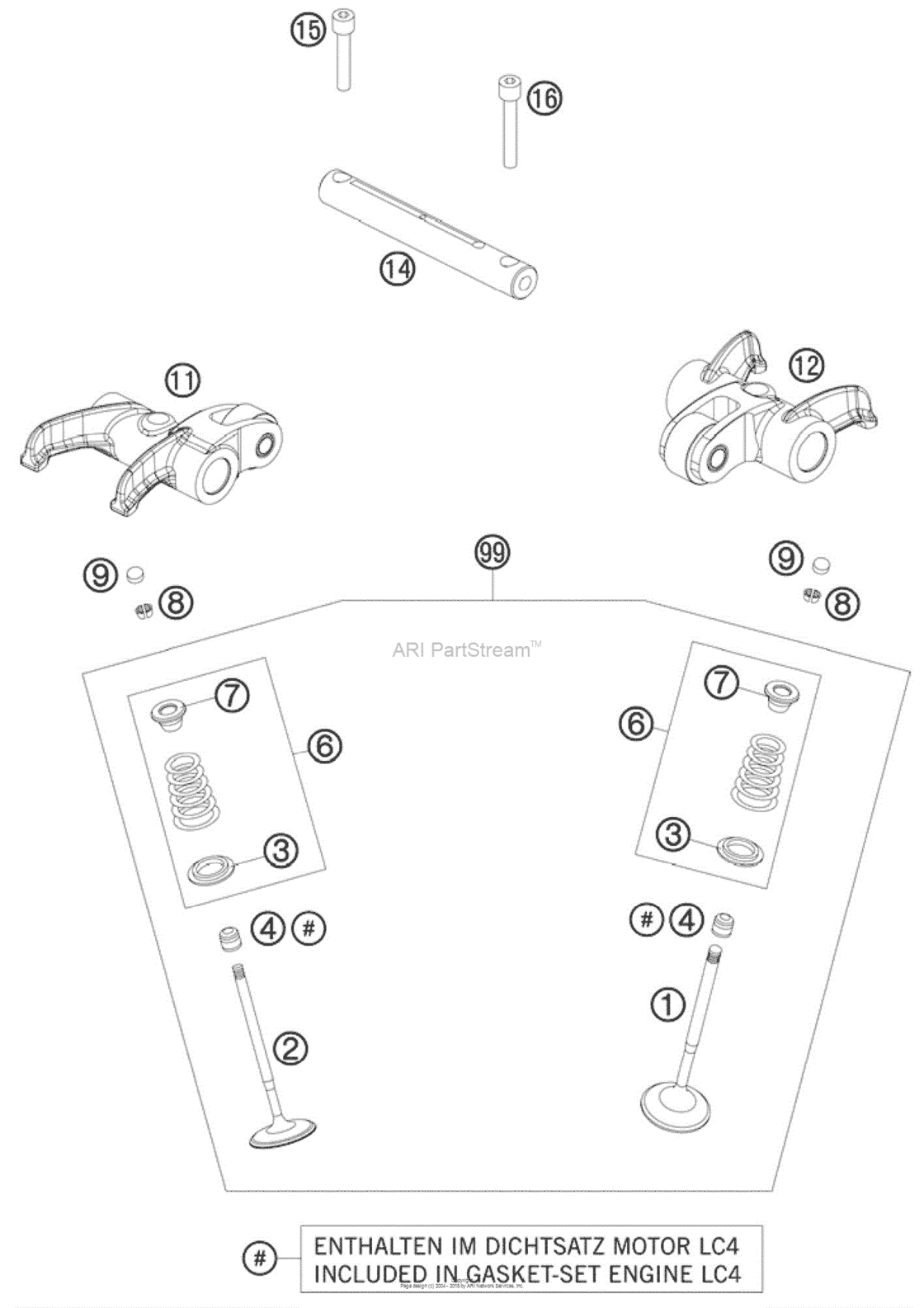

Valve Drive Diagram KTM 690 690 SMC
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 690
- Model
- 690 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75036030000 Intake valve 0707 |
75036030000 |
US $64.29 |
||
|
2
|
2
75036031000 Exhaust valve 0707 |
75036031000 |
US $78.63 |
||
|
3
|
3
75036036000 Valve spring holder 0707 |
75036036000 |
US $7.02 |
||
|
4
|
4
59036027000 Valve-stem sealing racing07 |
59036027000 |
US $7.70 |
||
|
6
|
6
75036028044 Valve spring kit 0707 |
75036028044 |
US $27.40 |
||
|
7
|
7
75036032000 Valve spring retainer 0707 |
75036032000 |
US $8.62 |
||
|
8
|
8
60036033000 Valve collet mk6 0303 |
60036033000 |
US $2.24 |
||
|
9
|
9
60036035185 Shim d=10/1,85 0303 (As required) |
60036035185 |
US $4.91 |
||
|
9
|
9
60036035190 Shim d=10/1,90 0303 (As required) |
60036035190 |
US $4.91 |
||
|
9
|
9
60036035195 Shim d=10/1,95 0303 (As required) |
60036035195 |
US $4.91 |
||
|
9
|
9
60036035200 Shim d=10/2,00 0303 (As required) |
60036035200 |
US $4.91 |
||
|
9
|
9
60036035205 Shim d=10/2,05 0303 (As required) |
60036035205 |
US $4.91 |
||
|
9
|
9
60036035210 Shim d=10/2,10 0303 (As required) |
60036035210 |
US $4.91 |
||
|
9
|
9
60036035215 Shim d=10/2,15 0303 (As required) |
60036035215 |
US $4.91 |
||
|
9
|
9
60036035220 Shim d=10/2,20 0303 (As required) |
60036035220 |
US $4.91 |
||
|
9
|
9
60036035225 Shim d=10/2,25 0303 (As required) |
60036035225 |
US $4.91 |
||
|
9
|
9
60036035230 Shim d=10/2,30 0303 (As required) |
60036035230 |
US $5.47 |
||
|
9
|
9
60036035235 Shim d=10/2,35 0303 (As required) |
60036035235 |
US $5.46 |
||
|
9
|
9
60036035240 Shim d=10/2,40 0303 (As required) |
60036035240 |
US $5.47 |
||
|
9
|
9
60036035245 Shim d=10/2,45 0303 (As required) |
60036035245 |
US $4.91 |
||
|
9
|
9
60036035250 Shim d=10/2,50 0303 (As required) |
60036035250 |
US $7.09 |
||
|
9
|
9
60036035255 Shim d=10/2,55 0303 (As required) |
60036035255 |
US $8.43 |
||
|
9
|
9
60036035260 Shim d=10/2,60 0303 (As required) |
60036035260 |
US $4.91 |
||
|
9
|
9
60036035265 Shim d=10/2,65 0303 (As required) |
60036035265 |
US $4.91 |
||
|
9
|
9
60036035270 Shim d=10/2,70 0303 (As required) |
60036035270 |
US $4.91 |
||
|
9
|
9
60036035275 Shim d=10/2,75 0303 (As required) |
60036035275 |
US $4.91 |
||
|
9
|
9
60036035280 Shim d=10/2,80 0303 (As required) |
60036035280 |
US $4.91 |
||
|
9
|
9
60036035285 Shim d=10/2,85 0303 (As required) |
60036035285 |
US $4.91 |
||
|
9
|
9
60036035290 Shim d=10/2,90 0303 (As required) |
60036035290 |
US $4.91 |
||
|
9
|
9
60036035295 Shim d=10/2,95 0303 (As required) |
60036035295 |
US $4.91 |
||
|
9
|
9
60036035300 Shim d=10/3,00 0303 (As required) |
60036035300 |
US $7.09 |
||
|
9
|
9
60036035305 Shim d=10/3,05 0303 (As required) |
60036035305 |
US $4.91 |
||
|
9
|
9
60036035310 Shim d=10/3,10 0303 (As required) |
60036035310 |
US $4.91 |
||
|
9
|
9
60036035315 Shim d=10/3,15 0303 (As required) |
60036035315 |
US $4.91 |
||
|
9
|
9
60036035320 Shim d=10/3,20 0303 (As required) |
60036035320 |
US $4.91 |
||
|
11
|
11
75036061044
Rocker arm exhaust cpl. 07
07 |
75036061044 |
— | ||
| replacement | |||||
|
11
|
11
75036061144 Rocker Arm Exhaust Cpl07 |
75036061144 |
US $194.99 |
||
|
12
|
12
75036060044
Rocker arm intake cpl. 07
07 |
75036060044 |
— | ||
| replacement | |||||
|
12
|
12
75036060144 Rocker Arm Inlet Compl07 |
75036060144 |
US $144.89 |
||
|
14
|
14
75036056000 Rocker arm shaft 0707 |
75036056000 |
US $34.27 |
||
|
15
|
15
0912060306 Ah screw din912 m6x3007 |
0912060306 |
US $0.53 |
||
|
16
|
16
0912060406 Ah screw din0912 m 6x4007 |
0912060406 |
US $0.65 |
||
|
99
|
99
75036030010 Valve kit(As required) |
75036030010 |
US $286.43 |
||
