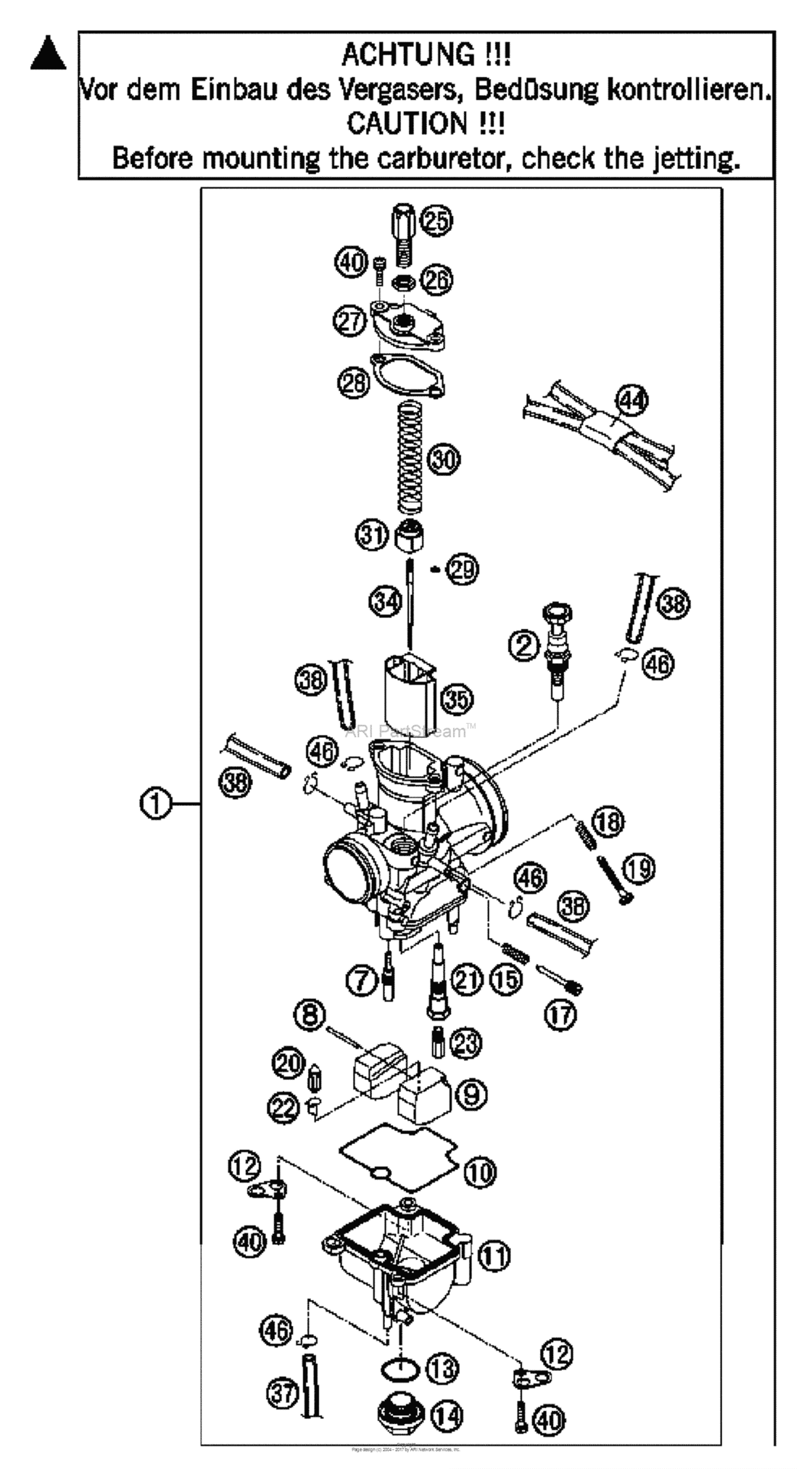

Carburetor Diagram KTM 85 85 SX 17/14
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX 17/14
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47031001000 Carburetor keihin pwk 28 2003TX30 |
47031001000 |
US $420.04 |
||
|
2
|
2
54631245000 Starter piston cpl.TX30 |
54631245000 |
US $91.65 |
||
|
7
|
7
54531607038 Idle jet 38 keihinTX30 |
54531607038 |
US $12.22 |
||
|
7
|
7
54531607040 Idle jet 40 keihinTX30 |
54531607040 |
US $11.83 |
||
|
7
|
7
54531607042 Idle jet 42 keihinTX30 |
54531607042 |
US $12.16 |
||
|
7
|
7
54531607045 Idle jet 45 keihinTX30 |
54531607045 |
US $11.95 |
||
|
7
|
7
54531607048 Idle jet 48 keihinTX30 |
54531607048 |
US $11.63 |
||
|
7
|
7
54531607050 Idle jet 50 keihinTX30 |
54531607050 |
US $11.48 |
||
|
8
|
8
57331008000 Arm pin floatTX30 |
57331008000 |
US $1.63 |
||
|
9
|
9
47031009000 Float cpl. pwk28 03TX30 |
47031009000 |
US $47.86 |
||
|
10
|
10
47031010000 Float chamber gasketTX30 |
47031010000 |
US $7.58 |
||
|
11
|
11
47031011000 Float chamber pwk28 03TX30 |
47031011000 |
US $74.89 |
||
|
12
|
12
54531612100 Retaining plate for bleederTX30 |
54531612100 |
US $2.09 |
||
|
13
|
13
0770180230 O-ring 18,00x2,30 nbr 70TX30 |
0770180230 |
US $2.02 |
||
|
14
|
14
54531699000 Plug m 18x1TX30 |
54531699000 |
US $20.21 |
||
|
15
|
15
54531615000 Spring for adjustment screwTX30 |
54531615000 |
US $2.75 |
||
|
17
|
17
54531617000 Adjustment screwTX30 |
54531617000 |
US $7.60 |
||
|
18
|
18
54631118000 SpringTX30 |
54631118000 |
US $9.66 |
||
|
19
|
19
54631219100 Adjustment screw m 5TX30 |
54631219100 |
US $15.33 |
||
|
20
|
20
47031020000 Float needle cpl.TX30 |
47031020000 |
US $26.40 |
||
|
21
|
21
47031021000 Needle jetTX30 |
47031021000 |
US $34.05 |
||
|
22
|
22
47031022000
Clip for float valve
TX30 |
47031022000 |
— | ||
| replacement | |||||
|
22
|
22
54531621000 ClampTX30 |
54531621000 |
US $3.18 |
||
|
23
|
23
54531623115 Main jet 115 keihinTX30 |
54531623115 |
US $12.24 |
||
|
23
|
23
54531623118 Main jet 118 keihinTX30 |
54531623118 |
US $12.02 |
||
|
23
|
23
54531623120 Main jet 120 keihinTX30 |
54531623120 |
US $13.67 |
||
|
23
|
23
54531623122 Main jet 122 keihinTX30 |
54531623122 |
US $13.50 |
||
|
23
|
23
54531623125 Main jet 125 keihinTX30 |
54531623125 |
US $12.92 |
||
|
25
|
25
54531625000 Adjustment screw m 6x0,75TX30 |
54531625000 |
US $7.23 |
||
|
26
|
26
52031126000 Hexagon nut m 6x0,75 din0439TX30 |
52031126000 |
US $8.35 |
||
|
27
|
27
47031027000 Carburetor cover pwk28 03TX30 |
47031027000 |
US $30.86 |
||
|
28
|
28
47031028000 Carburetor cover gasket pwk28TX30 |
47031028000 |
US $5.56 |
||
|
29
|
29
54531629000 Clip for jet needleTX30 |
54531629000 |
US $2.82 |
||
|
30
|
30
47031030000 Throttle valve springTX30 |
47031030000 |
US $10.12 |
||
|
31
|
31
47031031000 Spring capTX30 |
47031031000 |
US $6.38 |
||
|
34
|
34
47031034000 Jet needle n5hg keihinTX30 |
47031034000 |
US $13.75 |
||
|
34
|
34
47031034100 Jet needle n5hf keihinTX30 |
47031034100 |
US $14.25 |
||
|
34
|
34
47031034200 Jet needle n5hh keihinTX30 |
47031034200 |
US $14.26 |
||
|
35
|
35
47031035000 Throttle valve 3,5TX30 |
47031035000 |
US $200.46 |
||
|
37
|
37
52031137001 Pvc-hose 3x5mmTX30 |
52031137001 |
US $6 |
||
|
38
|
38
31007007101 Pvc-hose 4x6mmTX30 |
31007007101 |
US $2.38 |
||
|
40
|
40
0016040163 Hh collar screw m 4x16 ws=6TX30 |
0016040163 |
US $0.66 |
||
| replacement | |||||
|
40
|
40
0016040133 Hh collar screw m 4x13 ws=6TX30 |
0016040133 |
US $0.53 |
||
|
44
|
44
47031084000 Plastic-clipTX30 |
47031084000 |
US $13.86 |
||
|
46
|
46
54531696000 Clamp 6 mmTX30 |
54531696000 |
US $2.11 |
||
