	Description	OEM Part #	Price
7	7 47005007100 Exhaust pipe 85 sx 07 85 SX 07	47005007100	US $298.40
12	12 50305012000 Swingelement For Exhaust Pipe 85 SX 07	50305012000	US $25.65
16	16 50305016000 Ten.spring L=62Mm Ey.moveable L=62MM	50305016000	—
	replacement
16	16 A46005016000 TEN.SPRING L=62MM EY.MOVEABLE L=62MM	A46005016000	US $5.88
17	17 0770380030 O-ring 38,00x3,00 viton L=62MM	0770380030	US $3.52
20	20 54603048100 Range Change Metal Nut M6 L=62MM	54603048100	US $5.27
22	22 0137060003 Spring Washer Din0137-B 6 L=62MM	0137060003	US $0.43
28	28 0024060106 Hh collar screw m6x10 tx30 TX30	0024060106	US $4.35
30	30 0025060166 Hh collar screw m6x16 tx30 TX30	0025060166	US $2.23
31	31 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
32	32 0025060306 Hh collar screw m6x30 tx30 TX30	0025060306	US $3.96
57	57 54605057000 Rubber sleeve d=21mm/23mm '93 D=21MM/23MM '93	54605057000	US $23.49
68	68 54605068000 Exhaust bracket rubber black D=21MM/23MM '93	54605068000	—
	replacement
68	68 77205068000 Damp. Compon. Black D=21MM/23MM '93	77205068000	US $8.43
69	69 54605069000 Bushing 7,5x12x28x7,8 '96 '96	54605069000	—
	replacement
69	69 77205169000 Bushing 7.5X12X28X8.3 11 '96	77205169000	US $7.82
79	79 47005079100 Silencer 85 sx 06 85 SX 06	47005079100	US $342.64
80	80 50305079169 Silencer endcap sx rear 85 SX 06	50305079169	US $38.20
81	81 50305079160 Stuffing yarn 160 gram 85 SX 06	50305079160	US $70.19
82	82 0770055020 0-ring 55,00x2,00 nbr70 85 SX 06	0770055020	US $1.45
84	84 50233041000 Pair of washers m 6 nordlock 85 SX 06	50233041000	US $3.25

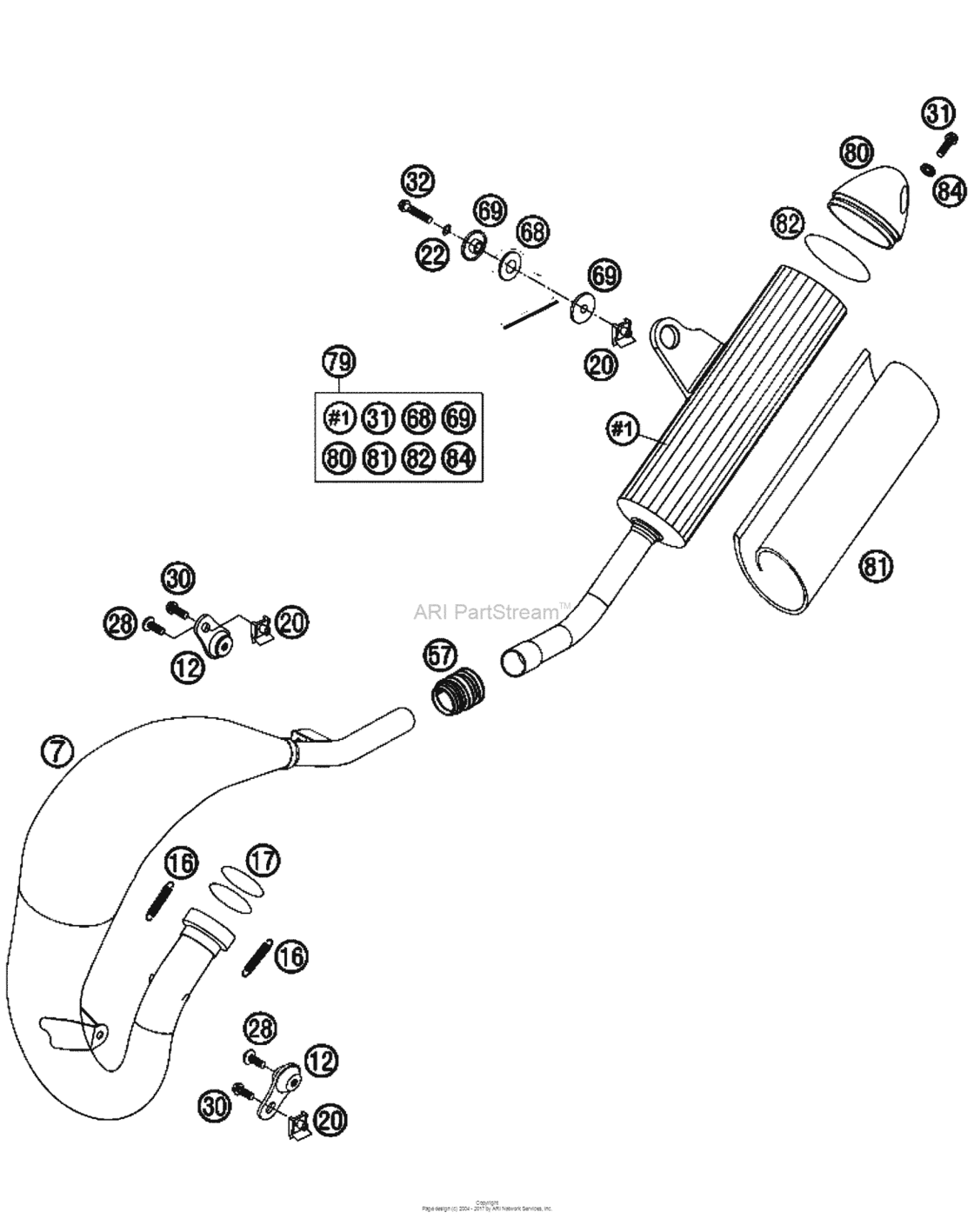

Exhaust System Diagram KTM 85 85 SX 19/16 US/EU 18107977-940767

Exhaust System Diagram KTM 85 85 SX 19/16 US/EU 18107977-940767
