	Description	OEM Part #	Price
1	1 46180348 Shock absorber top h40 135deg. TX30	46180348	US $259.17
2	2 50180213S10 Dcc-compr.damp.control cpl. 07 07	50180213S10	US $225.96
3	3 46180007 Adaptor bush kgw 12x24 07	46180007	US $17.41
4	4 46180003 Oil seal kgw d=25 07	46180003	US $5.02
5	5 50180168 Washer kgw d=25 07	50180168	US $1.87
6	6 50180005 Bushing kgw 1525 hd 07	50180005	US $82.86
8	8 50180095 Bleed plug r 1/8 07	50180095	US $9.15
12	12 52000014 Sticker wp 35x55 07	52000014	US $4.59
	replacement
12	12 52000086 Sticker wp caution 27x55 07	52000086	US $4.05
13	13 50180522 Res. screw l=100 d=52 black 07	50180522	US $145.42
14	14 46180014 O-ring viton 41x5 07	46180014	US $8.94
15	15 46180002 Separation piston d=52, h=32 07	46180002	US $70.99
16	16 46180015 Piston ring 3,9x1,5x156 07	46180015	US $12.04
19	19 46810893 O-ring nbr 5,28x1,78 07	46810893	US $1.12
20	20 36120151 Screw plug m5x6 07	36120151	US $7.31
21	21 46811208 Rubber cap "do not open" 07	46811208	US $5.68
25	25 46810016 O-ring nbr 48x2 07	46810016	US $4.66
27	27 46180340 Sleeve d=48 07	46180340	US $102.49
29	29 46180352 Lock washer m52x1,5 07	46180352	US $51.07
30	30 46180345 Tube m52x1,5 07	46180345	US $155.89
35	35 46180353 Spring retainer m52x1,5 07	46180353	US $158.37
36	36 0912050253 Ah screw din0912-m 5x25 07	0912050253	US $0.61
40	40 91010201 Spring (59) 215 45 n/mm d=10 (As required)	91010201	US $223.31
40	40 91010272 Spring 215 30 n/mm d=9,00 oran (As required)	91010272	US $184.35
40	40 91010273 Spring 215 35 n/mm d=9,25 oran (As required)	91010273	US $223.31
40	40 91010274S Spring 215 40 n/mm d=9,50 org (As required)	91010274S	US $223.31
43	43 46180349 Spring washer h=15 d=28 (As required)	46180349	US $55.44
45	45 46180356 Piston rod nut m10x1 (As required)	46180356	US $13.62
46	46 46810035 O-ring viton 37,82x1,78 (As required)	46810035	US $4.83
47	47 46811206 Piston ring 8x46 (As required)	46811206	US $36.35
49	49 14460016 Piston + piston spring (As required)	14460016	US $173.08
51	51 46180339 Separation bush 17x12x18 (As required)	46180339	US $34.41
57	57 46180179 Rebound disc h=0 (As required)	46180179	US $83.13
57	57 46180337 Rebound disc h=4 (As required)	46180337	US $30.65
58	58 46180441 Piston 5x4,5x/6x6 (As required)	46180441	US $119.46
60	60 46180343 Tap piston rod d=13,5 (As required)	46180343	US $61.25
61	61 46180342S Spindel d=18 lc=159 cpl. (As required)	46180342S	US $177.16
62	62 50180397 O-ring viton 5x1,5 (As required)	50180397	US $4.28
64	64 46180346 Needle rebound l=169 (As required)	46180346	US $14.37
65	65 46180018 O-ring nbr 7,5x2 (As required)	46180018	US $1.31
66	66 46180350 Needle guide (As required)	46180350	US $10.30
72	72 46180669S Adaptor cpl. d=46 h=28 07 07	46180669S	US $128.59
76	76 46180355 Reservoir cap m16x1 07	46180355	US $37.30
	replacement
76	76 46180005 Reservoir cap m16x1 07	46180005	US $33.98
77	77 46180013 O-ring nbr 12x1 07	46180013	US $2.35
78	78 50180222 O-ring nbr 4x1,5 07	50180222	US $1.02
79	79 48600028 Spring d=2,9 l=7,9 07	48600028	US $3.03
80	80 40540603 Steel ball d=3mm 07	40540603	US $1.22
81	81 46180006 Adjusting screw l=15,5 07	46180006	US $65.20
82	82 46180016 Adjusting adaptor rebound 07	46180016	US $44.97
83	83 50180410 Interm.ring d=58 07	50180410	US $5
85	85 46810010 Circlip 49x1,5 07	46810010	US $1.96
86	86 46180338 Cap d=46 h=9,5 07	46180338	US $64.21
87	87 50180276 Bump rubber wp60 d=18-26 07	50180276	US $10.64
88	88 50180283 Contra nut m18x1 h=5 07	50180283	US $28.88
90	90 46180347 Shock absorber bot. kgw l=54,5 07	46180347	US $108.73
98	98 50180342S1 Shock Absorber Fluid 5 Lt '03	50180342S1	—
	replacement
98	98 50180751S1 Shock Absorber Fluid 5 Lt '03	50180751S1	—

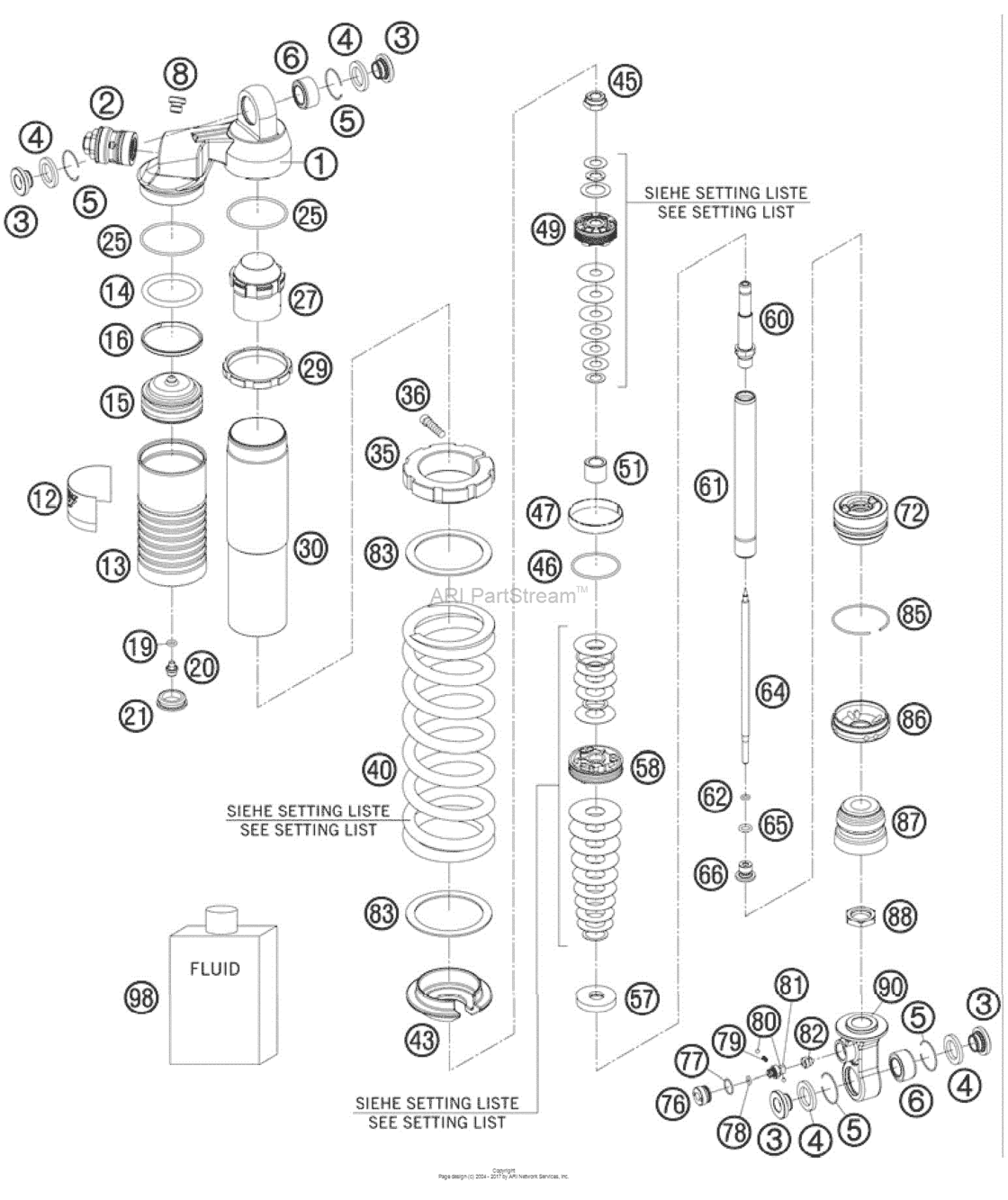

Monoshock Disassembled Diagram KTM 85 85 SX US/EU 18108117-940773

Monoshock Disassembled Diagram KTM 85 85 SX US/EU 18108117-940773
