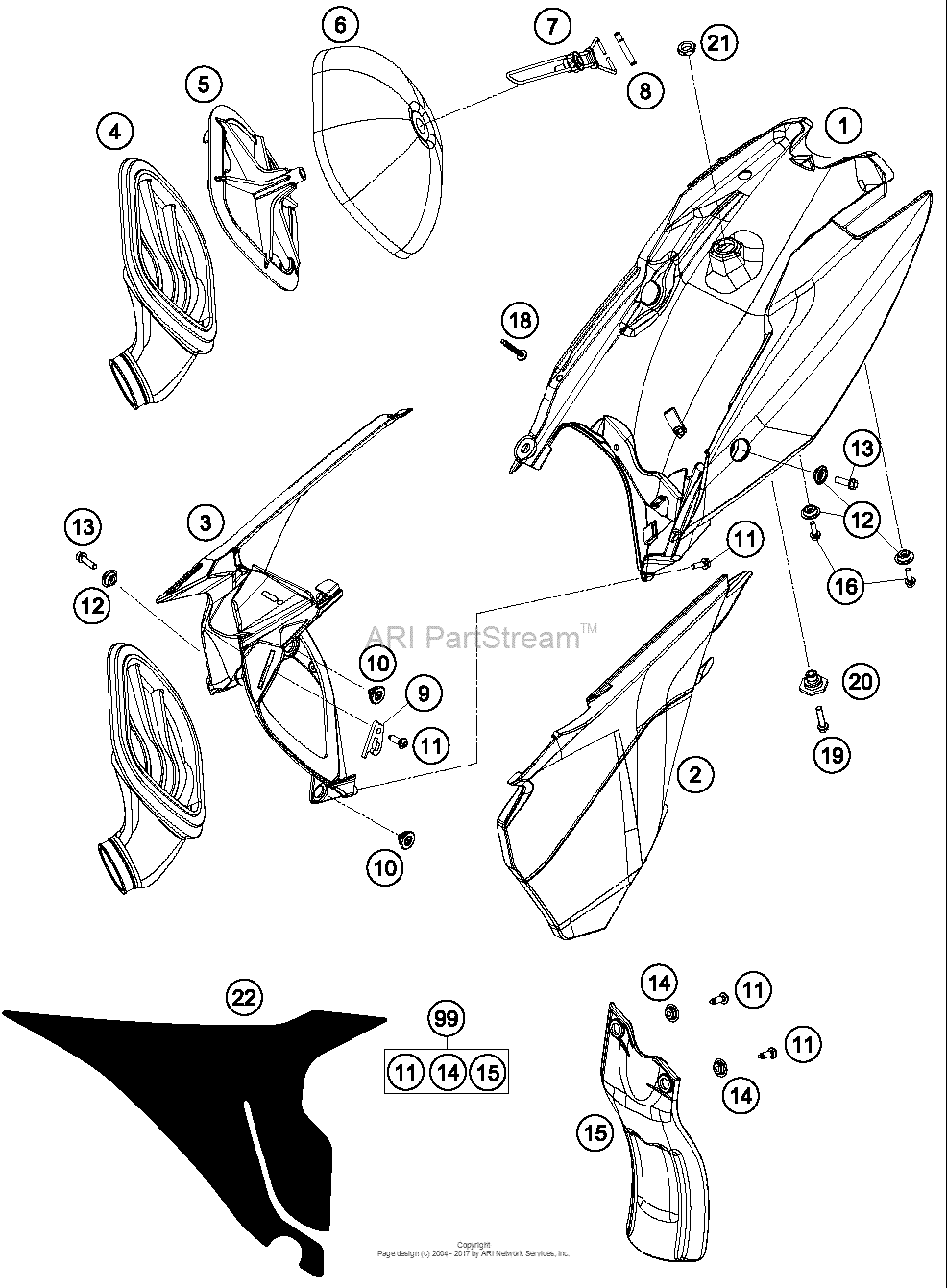

Air Filter Diagram KTM 85 85 SX
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4710600105228 Filter Box Part Rear White2003 |
4710600105228 |
US $29.67 |
||
|
2
|
2
4710600300004B Filter Cover Orange 20142014 |
4710600300004B |
US $42.48 |
||
|
3
|
3
4710600101004 Air Box Part Orange 20132013 |
4710600101004 |
US $33.95 |
||
|
4
|
4
47106026000 Carburetor Connecting2013 |
47106026000 |
US $57.90 |
||
|
5
|
5
54806516000 Filter Carrier2013 |
54806516000 |
US $8.23 |
||
|
6
|
6
77206015000 Air Filter2013 |
77206015000 |
US $38.10 |
||
|
7
|
7
47106017000 Air Filter Support Bracket Cpl2013 |
47106017000 |
US $24.24 |
||
|
8
|
8
77306018000 Filter support bush 0707 |
77306018000 |
US $3.16 |
||
|
9
|
9
47106019000 Fasten. Device Filter Support07 |
47106019000 |
US $7.41 |
||
|
10
|
10
47106003160 Quick Connector Clutch07 |
47106003160 |
US $1.67 |
||
|
11
|
11
0017060205 Screw For Plastic K60X20 Sw607 |
0017060205 |
US $2.24 |
||
|
12
|
12
77308013010 Collar bush. f.rear fender 0707 |
77308013010 |
US $4.35 |
||
|
13
|
13
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
14
|
14
46104066050 Bush for chainslider guard 0202 |
46104066050 |
US $9.01 |
||
|
15
|
15
47106010000 Splash Protection02 |
47106010000 |
US $10.39 |
||
|
16
|
16
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
18
|
18
0017060405 Special Screw T60 6X40 Ws=6TX30 |
0017060405 |
US $2.41 |
||
|
19
|
19
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
20
|
20
54807048000 Bushing for seat fastening 0303 |
54807048000 |
US $11.66 |
||
|
21
|
21
50314057050 Collar nut m12x1/ws17 h=5mm03 |
50314057050 |
US $7.26 |
||
|
22
|
22
47108096100 Sticker Airbox 20142014 |
47108096100 |
US $17.88 |
||
|
99
|
99
47106010010 Splash Protector Kit 85 SxAs Required |
47106010010 |
US $25.21 |
