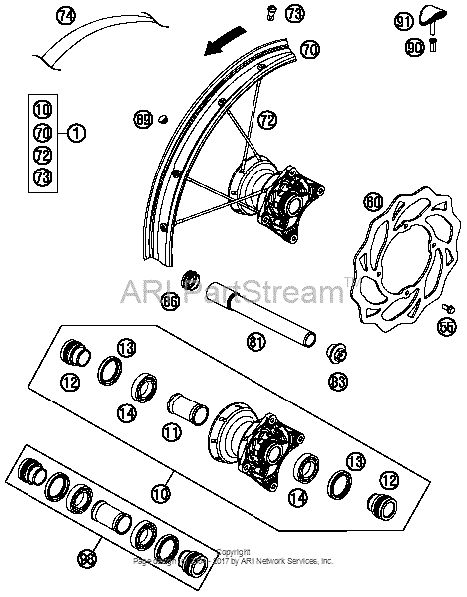

Front Wheel Diagram KTM 85 85 SX
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47109001044 Front Wheel Cpl. 17 20132013 |
47109001044 |
US $659.63 |
||
|
10
|
10
70009010044 Front Wheel Hub Cpl. 1212 |
70009010044 |
US $307.36 |
||
|
11
|
11
70009011000 Bear.spacer Tube Front D22Mm12 |
70009011000 |
US $16.49 |
||
|
12
|
12
70009012000 Spacer Bushing D=22Mm12 |
70009012000 |
US $34.19 |
||
|
13
|
13
0760324271 Shaft seal ring 32x42x7 bsl12 |
0760324271 |
US $21.64 |
||
|
14
|
14
0625069050 Ball bearing 6905 j1lluc312 |
0625069050 |
US $47.06 |
||
|
55
|
55
59009062013 Special Screw M6X13 Ws=8 10.912 |
59009062013 |
US $2.24 |
||
|
60
|
60
47009060300 Brake disc front d=219mm 0909 |
47009060300 |
US $121.65 |
||
|
70
|
70
47109070000 Rim Front Al4 17X1,40-3209 |
47109070000 |
US $223.13 |
||
|
72
|
72
4710907118330 Spoke M4,5X183-17 Black09 |
4710907118330 |
US $3.86 |
||
|
73
|
73
77109072000 Spoke Nipple M4,5 Al 1111 |
77109072000 |
US $2.23 |
||
|
74
|
74
47009073000 Rim band 85 sx 17" 20032003 |
47009073000 |
US $6.31 |
||
|
81
|
81
70009081000 Axle Front D=22 '1212 |
70009081000 |
US $66.73 |
||
|
83
|
83
70009082000 Axlescrew M20X1.512 |
70009082000 |
US $10.85 |
||
|
86
|
86
70009081050 Plug Bushing Sw17 '1212 |
70009081050 |
US $8.43 |
||
|
89
|
89
55003135000 Plug For RimAs Required |
55003135000 |
US $1.02 |
||
|
90
|
90
77110090050 Nut For Wheel HolderAs Required |
77110090050 |
US $3.60 |
||
|
91
|
91
45110090000 Rim lock cpl. 20042004, As Required |
45110090000 |
US $31.43 |
||
|
98
|
98
70009015000 Front Wheel Rep. KitAs Required |
70009015000 |
US $174.13 |
