Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
5	5 50180105 Threaded Bush M12 Pds As Required	50180105	US $15.90
15	15 77204087000 Hex Nut M14X1.5 Sw17 As Required	77204087000	US $1.92
16	16 54403135000 Plastic cap sfl10 As Required	54403135000	US $1.31
30	30 47004030144 Swingarm 85sx cpl. 2004 2004	47004030144	US $713.97
31	31 59004031000 Needle bush hk2012v 2004	59004031000	US $9.88
32	32 50203081700 Bushing sleeve 15x20x38,75 2004	50203081700	US $17.27
33	33 59033080000 Shim 20X32X1 2004	59033080000	US $1.73
34	34 0760253270 Shaft seal ring 25x32x7 2004	0760253270	US $6.51
35	35 54603090000 Bucket f.shaftsealring 15x25x9 2004	54603090000	US $11.63
37	37 47104037000 Swing Arm Bolt 85 Sx 2004	47104037000	US $74.07
41	41 58404041000 Closing cover swingarm sm 03 03	58404041000	US $6.85
42	42 58404041100 Closing cover round 03 03	58404041100	US $0.80
59	59 0019080206 Counter-sunk screw isa45 m8x20 03	0019080206	US $1.82
60	60 47030060051 Threaded bush for chain guard 03	47030060051	US $2.31
61	61 47007061000 Chain guard 85 sx 2003 2003	47007061000	US $11.97
62	62 58314060050 Collar Bushing 6,3X8X13X9,5 2003	58314060050	—
	replacement
62	62 45239060050 Collar bushing 6,3x8x13x9,5 2003	45239060050	US $5.12
65	65 72210079000 Bucket 2003	72210079000	US $2.72
66	66 58404066000 Chain sliding guard sm 03 03	58404066000	US $11.93
68	68 54607069000 Chain guide rear cpl. As Required	54607069000	US $74.36
69	69 54607066100 Chain Guide Rear '94 94	54607066100	US $41.46
70	70 54607070144 Retaining plate cpl. 94	54607070144	US $30.38
71	71 0025060166 Hh collar screw m6x16 tx30 TX30	0025060166	US $2.23
72	72 0025060306 Hh collar screw m6x30 tx30 TX30	0025060306	US $3.96
73	73 0025060506 Hh collar screw m6x50 tx30 TX30	0025060506	US $3.30
76	76 54611076100 Retain.clamp For Brake Hose'96 96	54611076100	US $1.09
77	77 0009050106 Ejot Spiral Screw Sf M5X10-K 96	0009050106	US $2.60
97	97 47007061010 Sprocket Cover Kit As Required	47007061010	US $22.59
98	98 58404066010 Chain Guard Kit 105/85 Sx As Required	58404066010	US $13.53
99	99 47004230010 Swingarm Rep. Kit 105/85 Sx As Required	47004230010	US $174.79

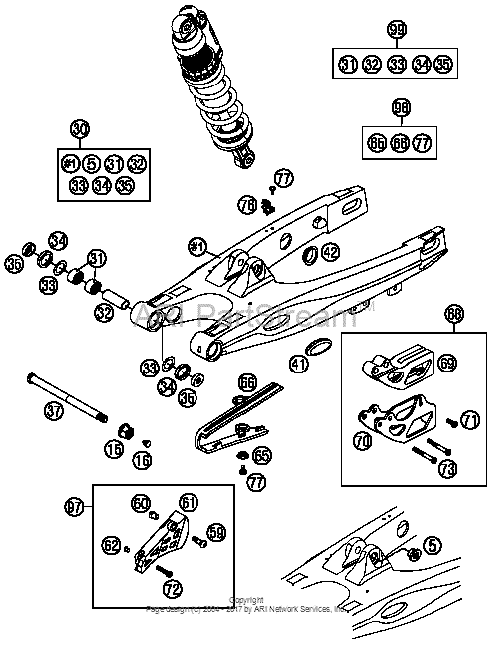

Swing Arm Diagram KTM 85 85 SX US/EU 18108156-940775

Swing Arm Diagram KTM 85 85 SX US/EU 18108156-940775
