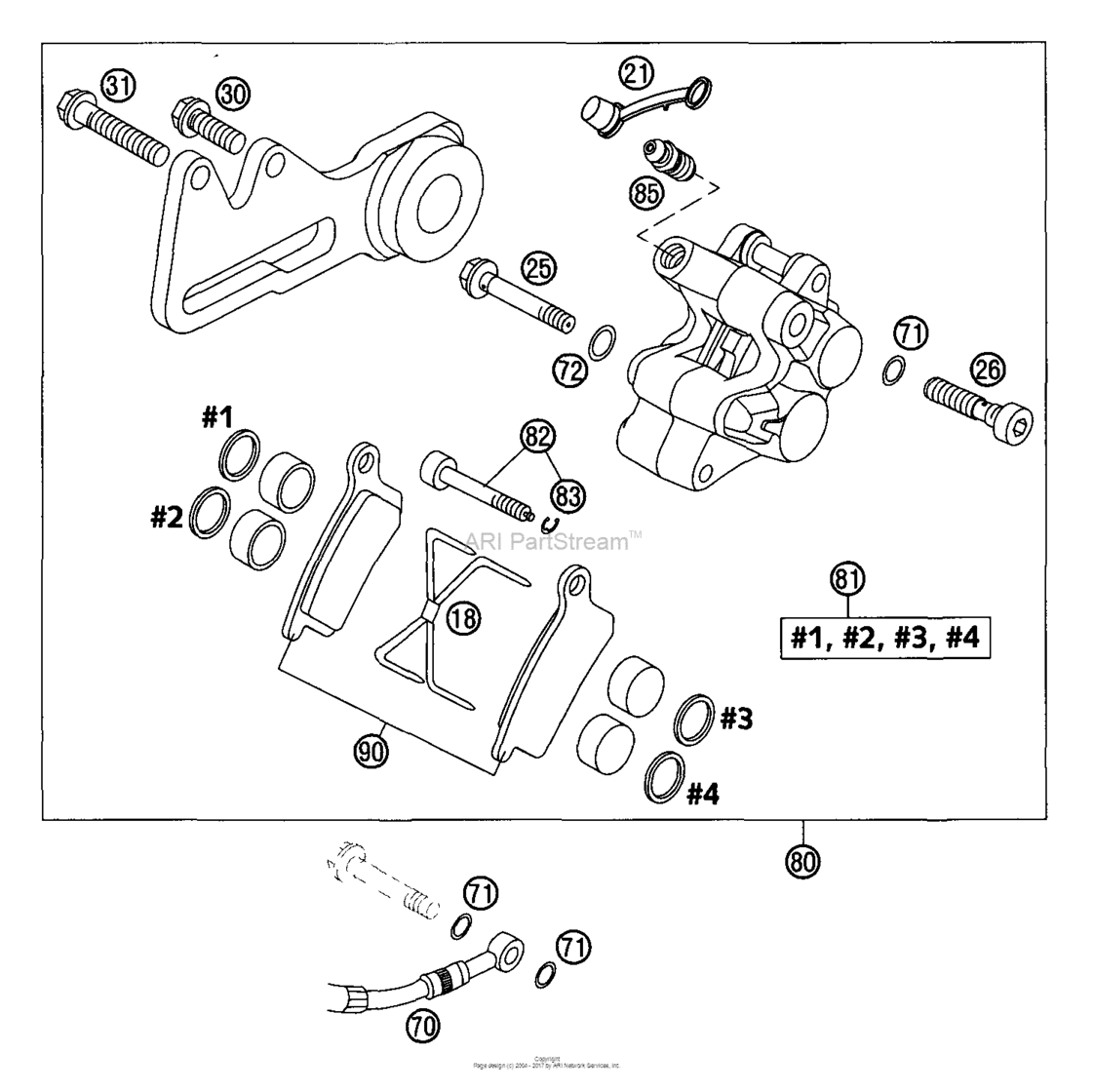

Brake Caliper Rear Formula Diagram KTM 85 85 SX
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
18
|
18
47013118000
Superseded By 46113018000
As Required |
47013118000 |
— | ||
|
21
|
21
47013021000 Cap for bleeder screwAs Required |
47013021000 |
US $5.95 |
||
|
25
|
25
47013225000 Hollow screw rear 85 sx 2003As Required |
47013225000 |
US $15.11 |
||
|
26
|
26
47013325000 Hollow screw rear 85 sx 2003As Required |
47013325000 |
US $15.11 |
||
|
30
|
30
0015080203 Hh collar screw m 8x20 ws=10As Required |
0015080203 |
US $1.68 |
||
|
31
|
31
0015080403
Hh Collar Screw M8X40 Tx40
As Required |
0015080403 |
— | ||
| replacement | |||||
|
31
|
31
0025080406 Hh collar screw m8x40 tx40As Required |
0025080406 |
US $2.62 |
||
|
70
|
70
47013070000 Brake hose rear 85 sx 03As Required |
47013070000 |
US $94.06 |
||
|
71
|
71
0770080019 O-ring 8,00x1,00 formulaAs Required |
0770080019 |
US $2.64 |
||
|
72
|
72
0770100019 O-ring 10x1 epdmAs Required |
0770100019 |
US $5.51 |
||
|
80
|
80
47013080000
Brake Caliper Re. Cpl. 85Sx 08
As Required |
47013080000 |
— | ||
| replacement | |||||
|
80
|
80
47013080200 Brake caliper re. cpl. 85sx 08As Required |
47013080200 |
US $370.46 |
||
|
81
|
81
47013081000 Repair kit seal ring rear 03As Required |
47013081000 |
US $16.64 |
||
|
82
|
82
46113125000 Ah screw + circlip 2002As Required |
46113125000 |
US $14.01 |
||
|
83
|
83
0799040009 Tab washer din6799-ra 4,0As Required |
0799040009 |
US $0.87 |
||
|
85
|
85
47013085000 Bleeder screw m8x1As Required |
47013085000 |
US $9.37 |
||
|
90
|
90
47013090000 Brake Pads Rear Sinter 85Sx 08As Required |
47013090000 |
US $55.35 |
||
| replacement | |||||
|
90
|
90
47013090200 Brake pads rear sinter 85sx 08As Required |
47013090200 |
US $39.22 |
||
