Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 1518Y706 Monoshock 4618 pds 85 sx 04 As Required	1518Y706	—
3	3 0015120556 Hh Collar M12X55 Ws=13 06 As Required	0015120556	—
	replacement
3	3 0015120556S Hh Collar M12X55 Ws=13 06 As Required	0015120556S	US $4.17
5	5 50180105 Threaded Bush M12 Pds As Required	50180105	US $15.90
15	15 54603015000 Self locking nut m14x1,5 ws=19 As Required	54603015000	US $4.85
16	16 54403135000 Plastic cap sfl10 As Required	54403135000	US $1.31
24	24 46012024000 Hook wrench for shock absorber As Required	46012024000	US $20.64
30	30 47004030144 Swingarm 85sx cpl. 2004 As Required	47004030144	US $713.97
31	31 59004031000 Needle bush hk2012v As Required	59004031000	US $9.88
32	32 50203081700 Bushing sleeve 15x20x38,75 As Required	50203081700	US $17.27
33	33 59033080000 Shim 20X32X1 As Required	59033080000	US $1.73
34	34 0760253270 Shaft seal ring 25x32x7 As Required	0760253270	US $6.51
35	35 54603090000 Bucket f.shaftsealring 15x25x9 As Required	54603090000	US $11.63
37	37 47004037000 Swingarm bolt 85 sx 2003 As Required	47004037000	US $57.05
41	41 58404041000 Closing cover swingarm sm 03 As Required	58404041000	US $6.85
42	42 58404041100 Closing cover round 03 As Required	58404041100	US $0.80
59	59 54510052100 Counter-Sunk Screw Isa45 M8X26 As Required	54510052100	—
	replacement
59	59 0019080266S Counter-sunk screw isa45 m8x26 As Required	0019080266S	US $2.23
60	60 47030060051 Threaded bush for chain guard As Required	47030060051	US $2.31
61	61 47007061000 Chain guard 85 sx 2003 As Required	47007061000	US $11.97
62	62 58314060050 Collar Bushing 6,3X8X13X9,5 As Required	58314060050	—
	replacement
62	62 45239060050 Collar bushing 6,3x8x13x9,5 As Required	45239060050	US $5.12
65	65 72210079000 Bucket As Required	72210079000	US $2.72
66	66 58404066000 Chain sliding guard sm 03 As Required	58404066000	US $11.93
69	69 54607066100 Chain Guide Rear '94 As Required	54607066100	US $41.46
70	70 54607070144 Retaining plate cpl. As Required	54607070144	US $30.38
71	71 0015060163 Hh Collar Screw M 6X16 Ws=8 As Required	0015060163	US $2.23
72	72 0015060303 Hh Collar Screw M6X30 Tx30 As Required	0015060303	—
	replacement
72	72 0025060306 Hh collar screw m6x30 tx30 As Required	0025060306	US $3.96
73	73 0015060503 Hh collar screw m 6x50 ws=8 As Required	0015060503	—
	replacement
73	73 0025060506 Hh collar screw m6x50 tx30 As Required	0025060506	US $3.30
76	76 54611076100 Retain.clamp For Brake Hose'96 As Required	54611076100	US $1.09
77	77 0009050103 Special screw m 5,0x10 As Required	0009050103	—
	replacement
77	77 0009050106 Ejot Spiral Screw Sf M5X10-K As Required	0009050106	US $2.60

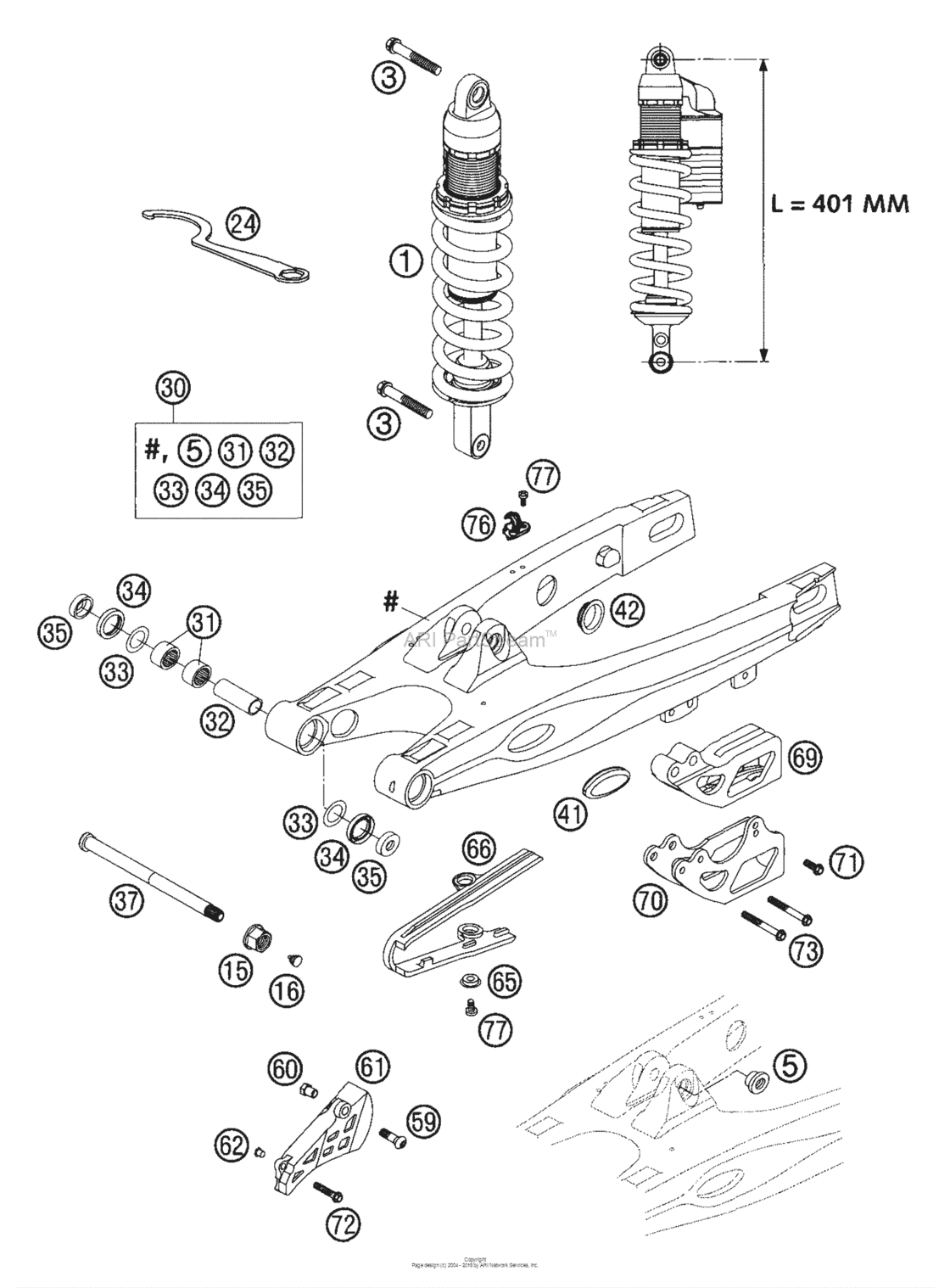

Swingarm, Shock Absorber Diagram KTM 85 85 SX US/EU 18108082-940771

Swingarm, Shock Absorber Diagram KTM 85 85 SX US/EU 18108082-940771
