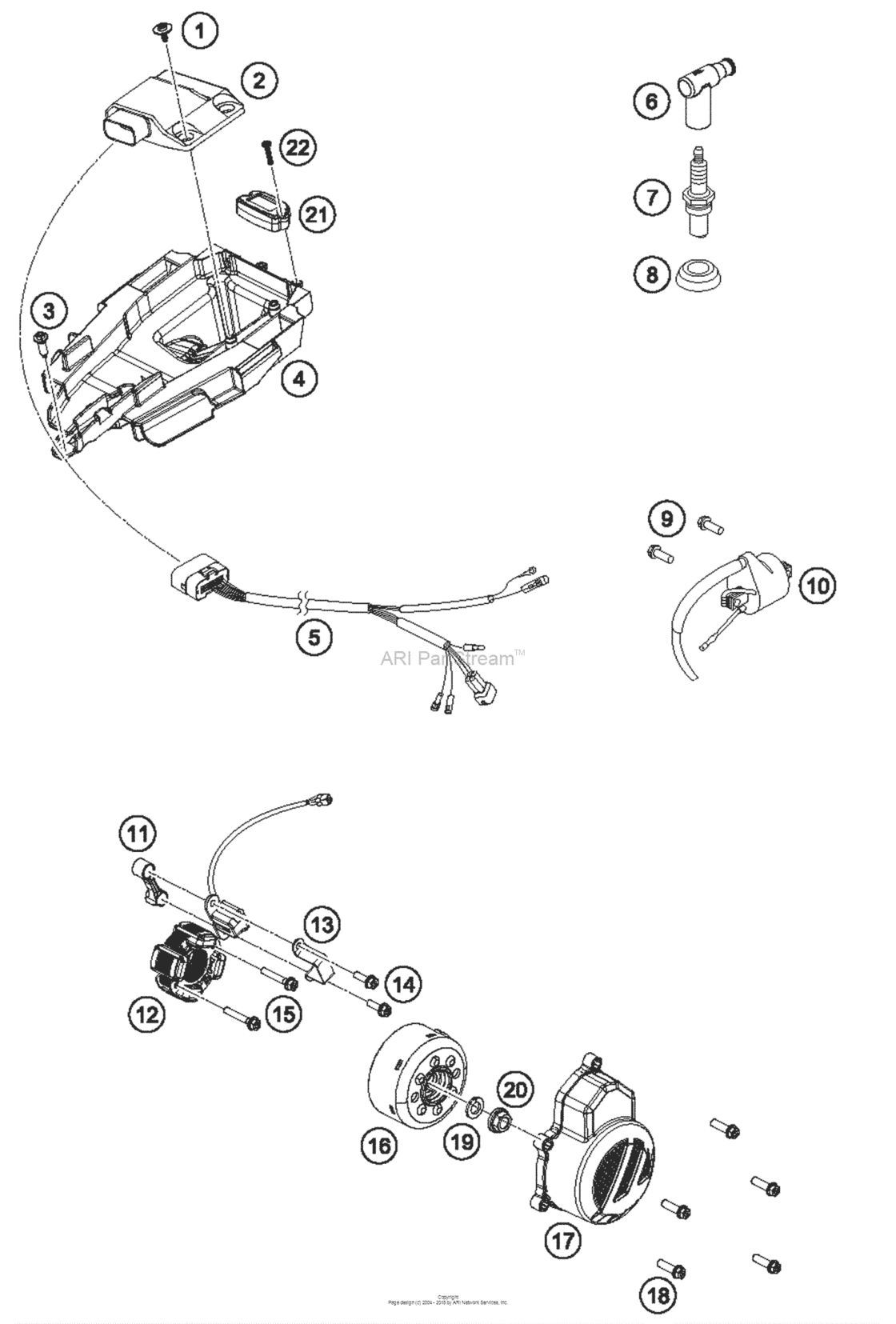

Ignition System Diagram KTM 85 85 SX
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0081645121 Ejot Delta Pt Screw 45X12-Z98 |
0081645121 |
US $1.17 |
||
|
2
|
2
47239031000
Dash Board Box 85 Sx
98 |
47239031000 |
— | ||
|
3
|
3
0017060205 Screw For Plastic K60X20 Sw698 |
0017060205 |
US $2.24 |
||
|
4
|
4
47211094000
Electric Compartment
98 |
47211094000 |
— | ||
|
5
|
5
54839032200 Wiring harness for cdi 2-st.0798 |
54839032200 |
US $68.10 |
||
|
6
|
6
47039090000 Spark plug cap ngk reinforc.0498 |
47039090000 |
US $24.26 |
||
|
7
|
7
51539093000 Spark plug br9ecmvx98 |
51539093000 |
US $20.81 |
||
|
8
|
8
50439091000 Sealing Sleeve98 |
50439091000 |
US $18.24 |
||
|
9
|
9
0026060186 Collar Screw M6X18 Isa3098 |
0026060186 |
US $0.58 |
||
|
10
|
10
59039006000 Ignitioncoil "ig5128"98 |
59039006000 |
US $132.38 |
||
|
11
|
11
50439013000 Distance Unit98 |
50439013000 |
US $5.08 |
||
|
12
|
12
50439004000 Stator98 |
50439004000 |
US $198.87 |
||
|
13
|
13
50439004010 Pickup Bracket98 |
50439004010 |
US $3.79 |
||
|
14
|
14
0014050163 Hh collar screw m 5x16 ws=698 |
0014050163 |
US $1.36 |
||
|
15
|
15
0912050253 Ah screw din0912-m 5x2598 |
0912050253 |
US $0.61 |
||
|
16
|
16
50439005000 Rotor98 |
50439005000 |
US $180.66 |
||
|
17
|
17
47230002000
Ignitioncover
98 |
47230002000 |
— | ||
|
18
|
18
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
19
|
19
50230029012 Locking ring vsk 12TX30 |
50230029012 |
US $2.19 |
||
|
20
|
20
49030021000 Collar nut m12x1 r/sTX30 |
49030021000 |
US $10.57 |
||
|
21
|
21
78112020050 Hour MeterTX30 |
78112020050 |
US $90.25 |
||
|
22
|
22
0081035183
Ejot Delta Pt Screw 35X18
TX30 |
0081035183 |
— |
