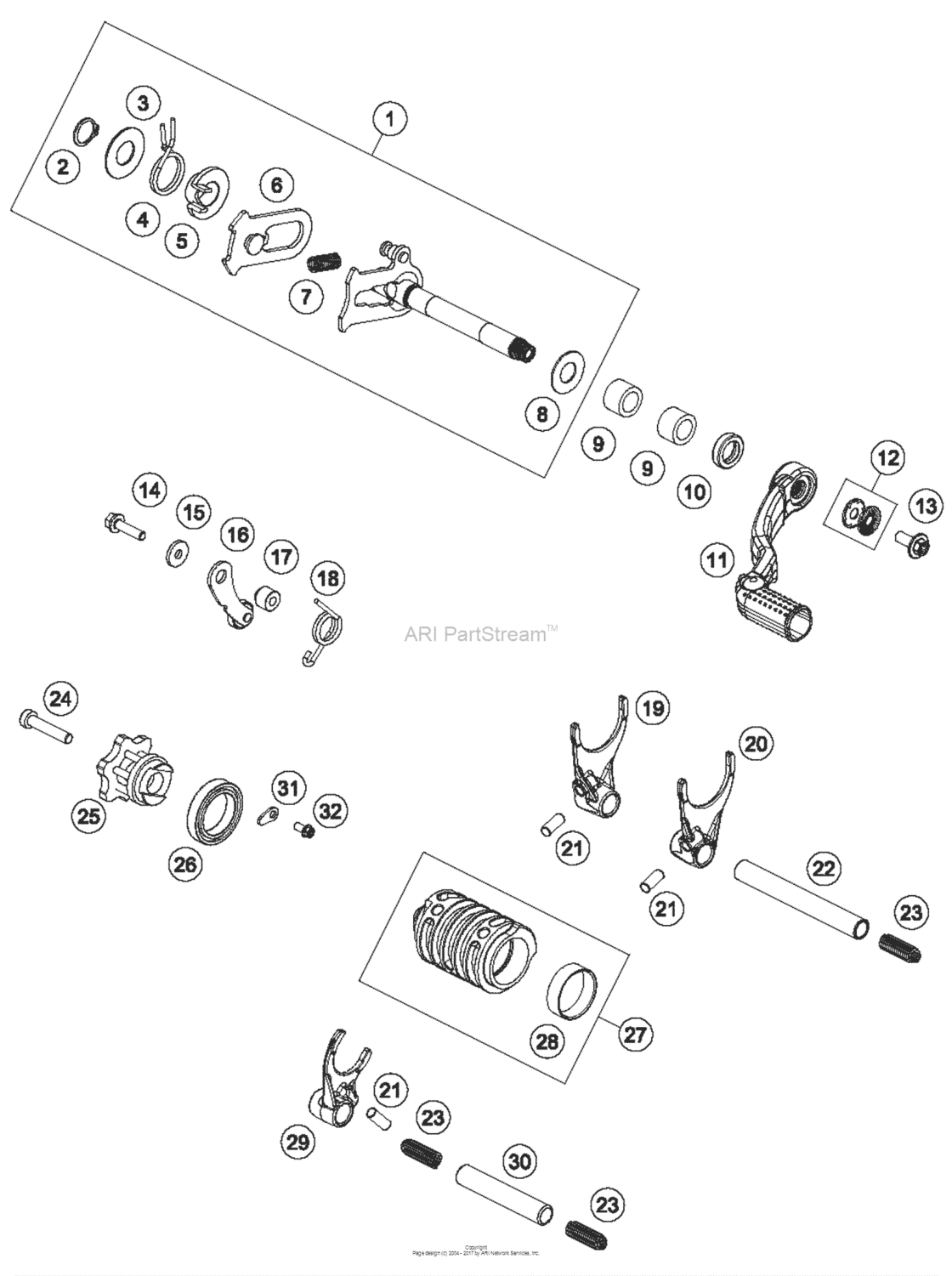

Shifting Mechanism Diagram KTM 85 85 SX
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47234005044
Shift Shaft Cpl
TX30 |
47234005044 |
— | ||
|
2
|
2
0471140100 Lock washer din0471-14x1TX30 |
0471140100 |
US $0.73 |
||
|
3
|
3
54634050000 Stop disk 14x30x1TX30 |
54634050000 |
US $0.71 |
||
|
4
|
4
54834014000 Return spring 03TX30 |
54834014000 |
US $3.06 |
||
|
5
|
5
54634020000 Spring guideTX30 |
54634020000 |
US $5.66 |
||
|
6
|
6
79234008144 Sliding Plate CplTX30 |
79234008144 |
US $37.03 |
||
|
7
|
7
56534013100 Tensioning Spring 0,8MmTX30 |
56534013100 |
US $2.94 |
||
|
8
|
8
49033013000 Stop disk 12,1x25x1TX30 |
49033013000 |
US $3.33 |
||
|
9
|
9
46034027000 Needle bearing 12x18x12 20022002 |
46034027000 |
US $6.73 |
||
|
10
|
10
0760122050 Shaft seal ring 12x20x5 b2002 |
0760122050 |
US $7.16 |
||
|
11
|
11
50434031000 Shift Lever Cpl2002 |
50434031000 |
US $95.97 |
||
|
12
|
12
50233041500 Pair Nordlock Washer M62002 |
50233041500 |
US $5.20 |
||
|
13
|
13
0024060156S Hh Collar Screw M6X15 Torx30TX30 |
0024060156S |
US $0.58 |
||
|
14
|
14
0025050206 Hh collar screw m5x20 tx30TX30 |
0025050206 |
US $1.33 |
||
|
15
|
15
0349000050 Washer din7349-5x15x2TX30 |
0349000050 |
US $0.65 |
||
|
16
|
16
55434024000 Locking Lever CplTX30 |
55434024000 |
US $42.67 |
||
|
17
|
17
54634052300 Sleeve for locking leverTX30 |
54634052300 |
US $2.67 |
||
|
18
|
18
50334023000 Locating lever spring 2,5mm'9898 |
50334023000 |
US $2.77 |
||
|
19
|
19
47234002000
Shift Fork 1.-4. Gear
98 |
47234002000 |
— | ||
|
20
|
20
47234003000
Shift Fork 2.-3. Gear
98 |
47234003000 |
— | ||
|
21
|
21
0402061480 Needle roller din5402 6x14,898 |
0402061480 |
US $4.71 |
||
|
22
|
22
47234019000
Shift Rail 11.8X80X8Mm
98 |
47234019000 |
— | ||
|
23
|
23
58038023200 Pressure spring 0,9mm98 |
58038023200 |
US $2.84 |
||
|
24
|
24
0984060302 Ah screw din6912 m 6x3098 |
0984060302 |
US $0.80 |
||
|
25
|
25
79234015000 Shift Drum Locating Cpl98 |
79234015000 |
US $38.98 |
||
|
26
|
26
0625618050 Ball bearing 61805 c398 |
0625618050 |
US $39.98 |
||
|
27
|
27
47234012044
Shift Drum Cpl
98 |
47234012044 |
— | ||
|
28
|
28
47234012010
Gleitlager
98 |
47234012010 |
— | ||
|
29
|
29
47234001000
Shift Fork 5.-6. Gear
98 |
47234001000 |
— | ||
|
30
|
30
46234020000 Shifting rail main shaft98 |
46234020000 |
US $14.43 |
||
|
31
|
31
54634049000 Retaining plate98 |
54634049000 |
US $3.67 |
||
|
32
|
32
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
