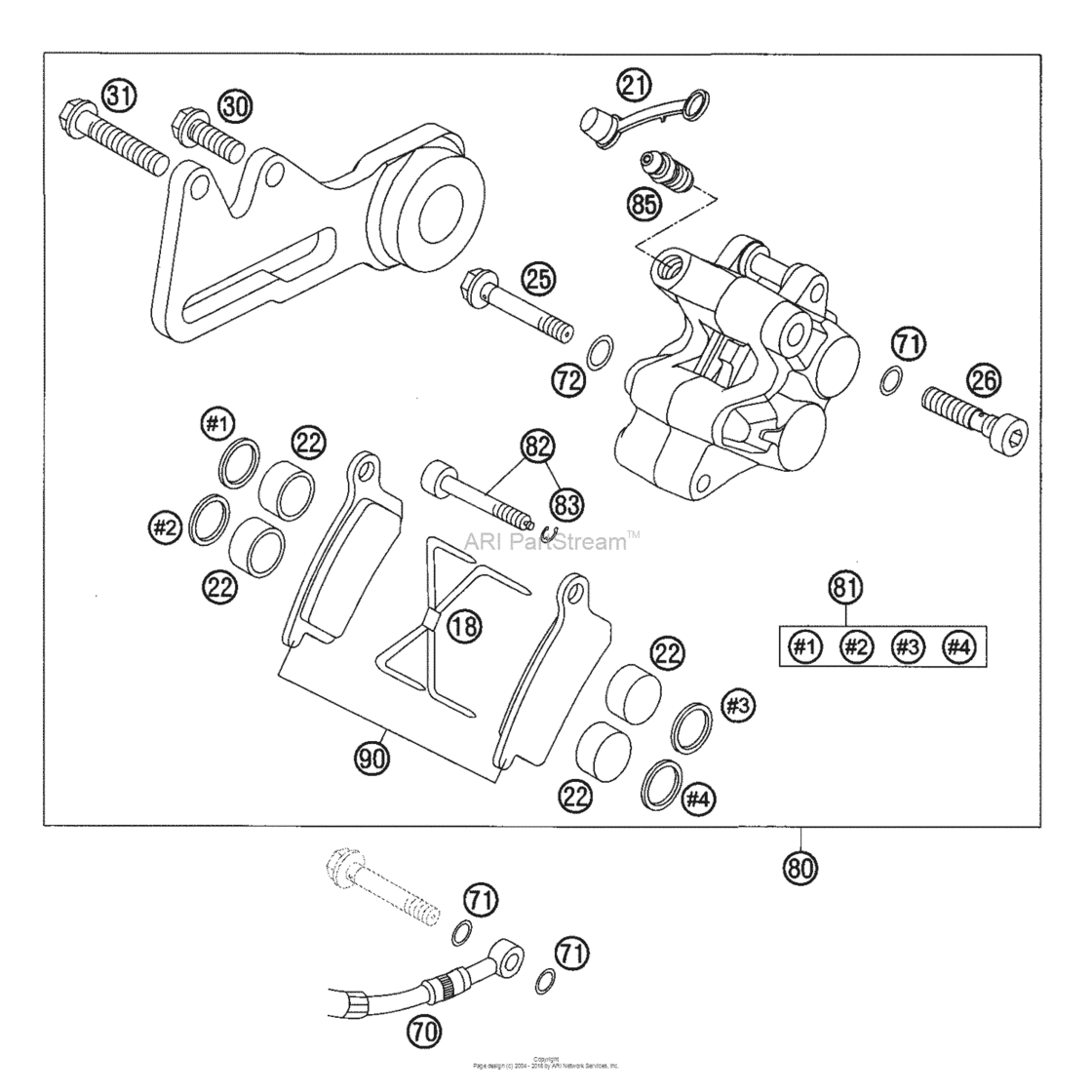

Brake Caliper Rear Diagram KTM 85 85 SX
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
18
|
18
46113018000 Retaining spring 65 sxTX30 |
46113018000 |
US $14.54 |
||
| replacement | |||||
|
18
|
18
46213018000 Retaining Spring 65 SxTX30 |
46213018000 |
US $7.38 |
||
|
21
|
21
47013021000 Cap for bleeder screwTX30 |
47013021000 |
US $5.95 |
||
|
22
|
22
47013083000
Repair Kit Brakepiston
TX30 |
47013083000 |
— | ||
| replacement | |||||
|
22
|
22
47013083100 Repair kit brakepistonTX30 |
47013083100 |
US $27.40 |
||
|
25
|
25
47013225000 Hollow screw rear 85 sx 2003TX30 |
47013225000 |
US $15.11 |
||
|
26
|
26
47013325000 Hollow screw rear 85 sx 2003TX30 |
47013325000 |
US $15.11 |
||
|
30
|
30
0015080203 Hh collar screw m 8x20 ws=10TX30 |
0015080203 |
US $1.68 |
||
|
31
|
31
0015080403
Hh Collar Screw M8X40 Tx40
TX30 |
0015080403 |
— | ||
| replacement | |||||
|
31
|
31
0025080406 Hh collar screw m8x40 tx40TX30 |
0025080406 |
US $2.62 |
||
|
70
|
70
47013070000 Brake hose rear 85 sx 03TX30 |
47013070000 |
US $94.06 |
||
|
71
|
71
0770080019 O-ring 8,00x1,00 formulaTX30 |
0770080019 |
US $2.64 |
||
|
72
|
72
0770100019 O-ring 10x1 epdmTX30 |
0770100019 |
US $5.51 |
||
|
80
|
80
47013080000
Brake Caliper Re. Cpl. 85Sx 08
TX30 |
47013080000 |
— | ||
| replacement | |||||
|
80
|
80
47013080200 Brake caliper re. cpl. 85sx 08TX30 |
47013080200 |
US $370.46 |
||
|
81
|
81
47013081000 Repair kit seal ring rear 03TX30 |
47013081000 |
US $16.64 |
||
|
82
|
82
47013425000 Ah screw + circlip 85/105TX30 |
47013425000 |
US $15.64 |
||
|
83
|
83
0799040009 Tab washer din6799-ra 4,0TX30 |
0799040009 |
US $0.87 |
||
|
85
|
85
47013085000 Bleeder screw m8x1TX30 |
47013085000 |
US $9.37 |
||
|
90
|
90
47013090100 Brake pad set rear 2004TX30 |
47013090100 |
US $48.09 |
||
| replacement | |||||
|
90
|
90
47013090200 Brake pads rear sinter 85sx 08TX30 |
47013090200 |
US $39.22 |
||
