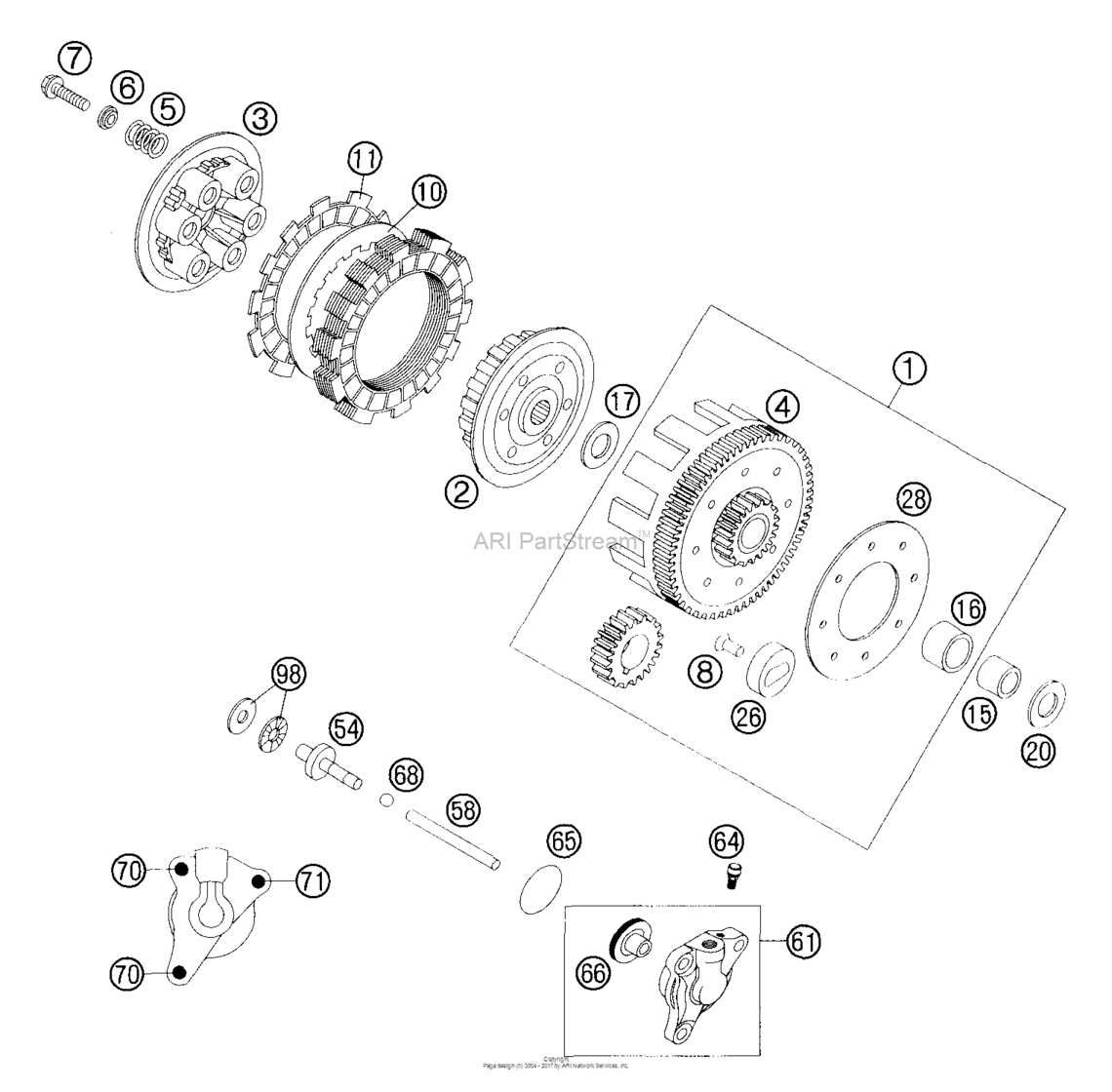

Clutch Diagram KTM 85 85 SX
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47032001044 Superseded By 47032001144TX30 |
47032001044 |
US $290.33 |
||
| replacement | |||||
|
1
|
1
0405252910 Needle bear k 25x29x10TX30 |
0405252910 |
US $9.16 |
||
|
2
|
2
47032002000 Inner clutch hub 85 sx 2003TX30 |
47032002000 |
US $149.57 |
||
|
3
|
3
47032003000 Pressure cap 85 sx 2003TX30 |
47032003000 |
US $75.04 |
||
|
4
|
4
47032001000
Out. Clutch Hub Loose 85 Sx 07
TX30 |
47032001000 |
— | ||
| replacement | |||||
|
4
|
4
47032001100 Out. clutch hub loose 85 sx 07TX30 |
47032001100 |
US $74.60 |
||
|
5
|
5
47032005000 Clutch spring 85 sx 2003TX30 |
47032005000 |
US $1.77 |
||
|
6
|
6
47032006000 Spring retain. 5,1x10,2x15x2,5TX30 |
47032006000 |
US $10.95 |
||
|
7
|
7
0015050203
Hh Collar Screw M5X20 Tx30
TX30 |
0015050203 |
— | ||
| replacement | |||||
|
7
|
7
0025050206 Hh collar screw m5x20 tx30TX30 |
0025050206 |
US $1.33 |
||
|
8
|
8
47032008000 Rivet din0661 5x14TX30 |
47032008000 |
US $2.24 |
||
|
10
|
10
47032010000 Steel disc 85 sx 03TX30 |
47032010000 |
US $7.29 |
||
|
11
|
11
47032011000 Lining disc 85 sx 2003TX30 |
47032011000 |
US $24.62 |
||
|
15
|
15
47032015000 Bushing 20x25x20,5TX30 |
47032015000 |
US $22.15 |
||
|
16
|
16
47032016000 Inner ring 25x28x20TX30 |
47032016000 |
US $12.92 |
||
|
17
|
17
47032017000 Support washer 18,5x35x1,5 03TX30 |
47032017000 |
US $3.11 |
||
|
20
|
20
47032020000 Stop disc 20x32x2TX30 |
47032020000 |
US $5.20 |
||
|
26
|
26
47032026000 Damping element 85 sx 2003TX30 |
47032026000 |
US $1.92 |
||
|
28
|
28
47032028000 Retaining plate 85 sx 2003TX30 |
47032028000 |
US $9.55 |
||
|
54
|
54
47032054000 Pressure plate 85 sx 2003TX30 |
47032054000 |
US $34.05 |
||
|
58
|
58
47032058000 Push rod 85 sx 2003TX30 |
47032058000 |
US $12.95 |
||
|
61
|
61
59032061044
Output Cyl. With Bleeder Screw
TX30 |
59032061044 |
— | ||
| replacement | |||||
|
61
|
61
75032061044 Output Cyl. With Bleeder ScrewTX30 |
75032061044 |
US $230.98 |
||
|
64
|
64
54732064000 Bleeder Screw With CapTX30 |
54732064000 |
US $22.05 |
||
|
65
|
65
0770300015 O-ring 30,00x1,50 nbr 70TX30 |
0770300015 |
US $3.26 |
||
|
66
|
66
59032066000
Output Cyl. With Bleeder Screw
TX30 |
59032066000 |
— | ||
| replacement | |||||
|
66
|
66
75032061044 Output Cyl. With Bleeder ScrewTX30 |
75032061044 |
US $230.98 |
||
|
68
|
68
47032068000 Ball d=6mm 85 sx 2003TX30 |
47032068000 |
US $0.27 |
||
|
70
|
70
0015060163 Hh Collar Screw M 6X16 Ws=8TX30 |
0015060163 |
US $2.23 |
||
|
71
|
71
0015060203
Hh Collar Screw M 6X20 Ws=8
TX30 |
0015060203 |
— | ||
| replacement | |||||
|
71
|
71
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
98
|
98
47032098000 Axial needle bearing 85 sx 03TX30 |
47032098000 |
US $11.05 |
||
