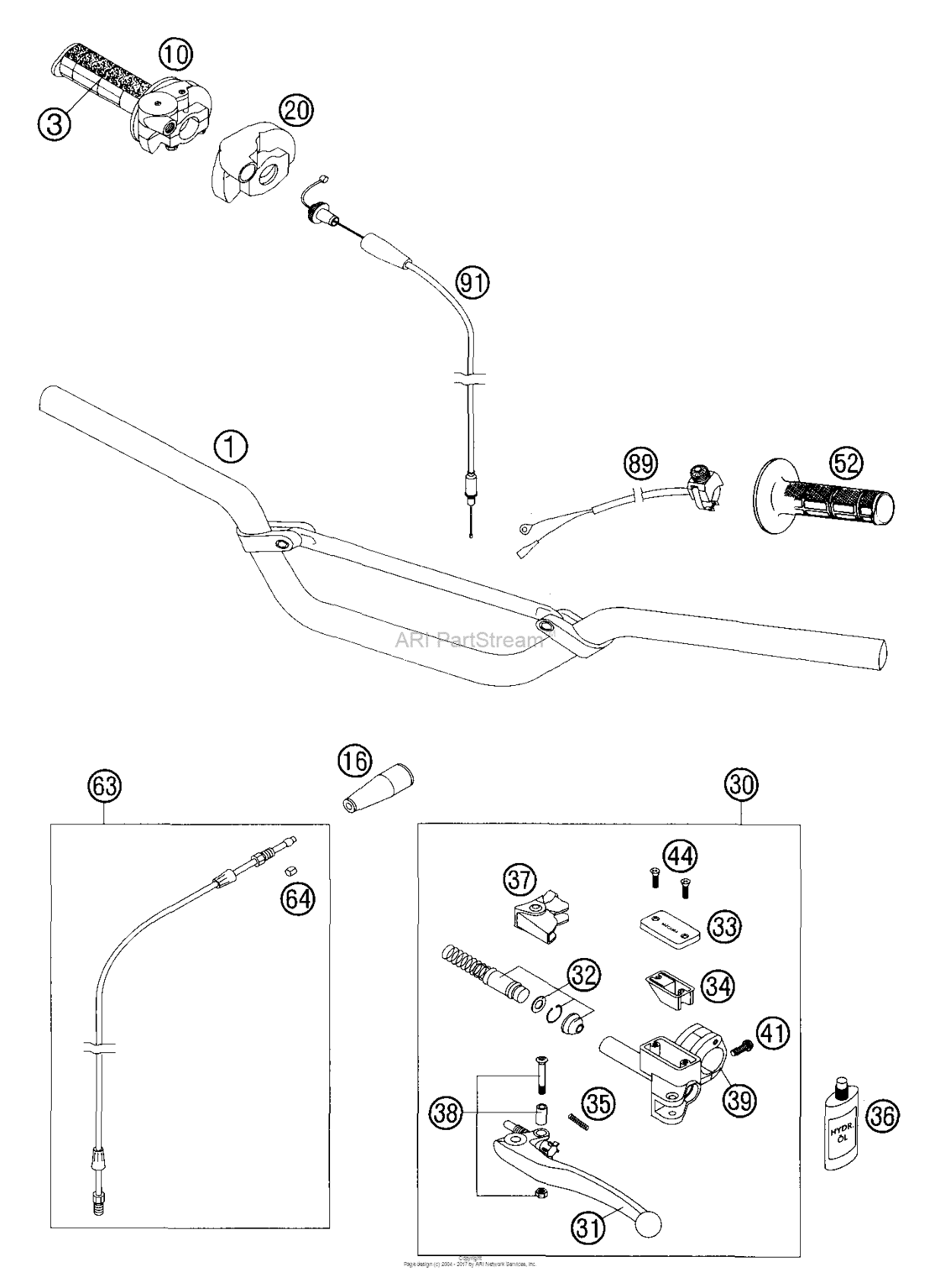

Handlebar - Controls Diagram KTM 85 85 SX
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47002001100
Handlebar d=22mm 85 sx 2005
TX30 |
47002001100 |
— | ||
| replacement | |||||
|
1
|
1
47002001300 HandlebarTX30 |
47002001300 |
US $110.33 |
||
|
3
|
3
50202003000
Gripp Set Half Waffle
TX30 |
50202003000 |
— | ||
| replacement | |||||
|
3
|
3
50202021000 Gripp Set Half WaffleTX30 |
50202021000 |
US $23.31 |
||
|
10
|
10
50302010000 Throttle Grip Cpl. 2St. 13TX30 |
50302010000 |
US $96.36 |
||
| replacement | |||||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 13TX30 |
51502010200 |
US $67.97 |
||
|
16
|
16
54002016000 Protection capTX30 |
54002016000 |
US $10.71 |
||
|
20
|
20
50302020000 Protection Cover '97TX30 |
50302020000 |
US $16.75 |
||
|
30
|
30
46102030100 Master cylinder cpl. d=9mm 05TX30 |
46102030100 |
US $291.43 |
||
|
31
|
31
54602031000 Clutch Lever Short Cpl. 2003TX30 |
54602031000 |
US $42.99 |
||
|
31
|
31
59002031000 Clutch Lever Long Cpl. 2003TX30 |
59002031000 |
US $42.99 |
||
|
32
|
32
59002032100 Rep.kit piston 9,0mm rac. 2004TX30 |
59002032100 |
US $65.01 |
||
|
33
|
33
50302033100 Cover hyd.clutch 2t 2000TX30 |
50302033100 |
US $24.04 |
||
|
34
|
34
50302034000 Rubber for reservoir '98TX30 |
50302034000 |
US $16.18 |
||
|
35
|
35
59002035000 Spring for clutch lever 03TX30 |
59002035000 |
US $5.46 |
||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 MlTX30 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'98TX30 |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '98TX30 |
50302038000 |
US $20.35 |
||
|
39
|
39
50302030150 Clamp With Pin 2000TX30 |
50302030150 |
US $34.46 |
||
|
41
|
41
0015060203
Hh Collar Screw M 6X20 Ws=8
TX30 |
0015060203 |
— | ||
| replacement | |||||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12TX30 |
0965040123 |
US $0.56 |
||
|
52
|
52
50202052000
Gripp Set Half Waffle
TX30 |
50202052000 |
— | ||
| replacement | |||||
|
52
|
52
50202021000 Gripp Set Half WaffleTX30 |
50202021000 |
US $23.31 |
||
|
63
|
63
46132063000 Pipe kit for hydr.clutch 65 sxTX30 |
46132063000 |
US $52.97 |
||
|
64
|
64
50332063050 Self Cutting Ring Hydr.pipeTX30 |
50332063050 |
US $2.23 |
||
|
89
|
89
50311089200 Short Circuit Button 02TX30 |
50311089200 |
US $50.97 |
||
|
91
|
91
50302091000
Throttle c. 125-380 dom./keih.
TX30 |
50302091000 |
— | ||
| replacement | |||||
|
91
|
91
51502091200 Throttle Cable 2-St. 2014TX30 |
51502091200 |
US $39.20 |
||
