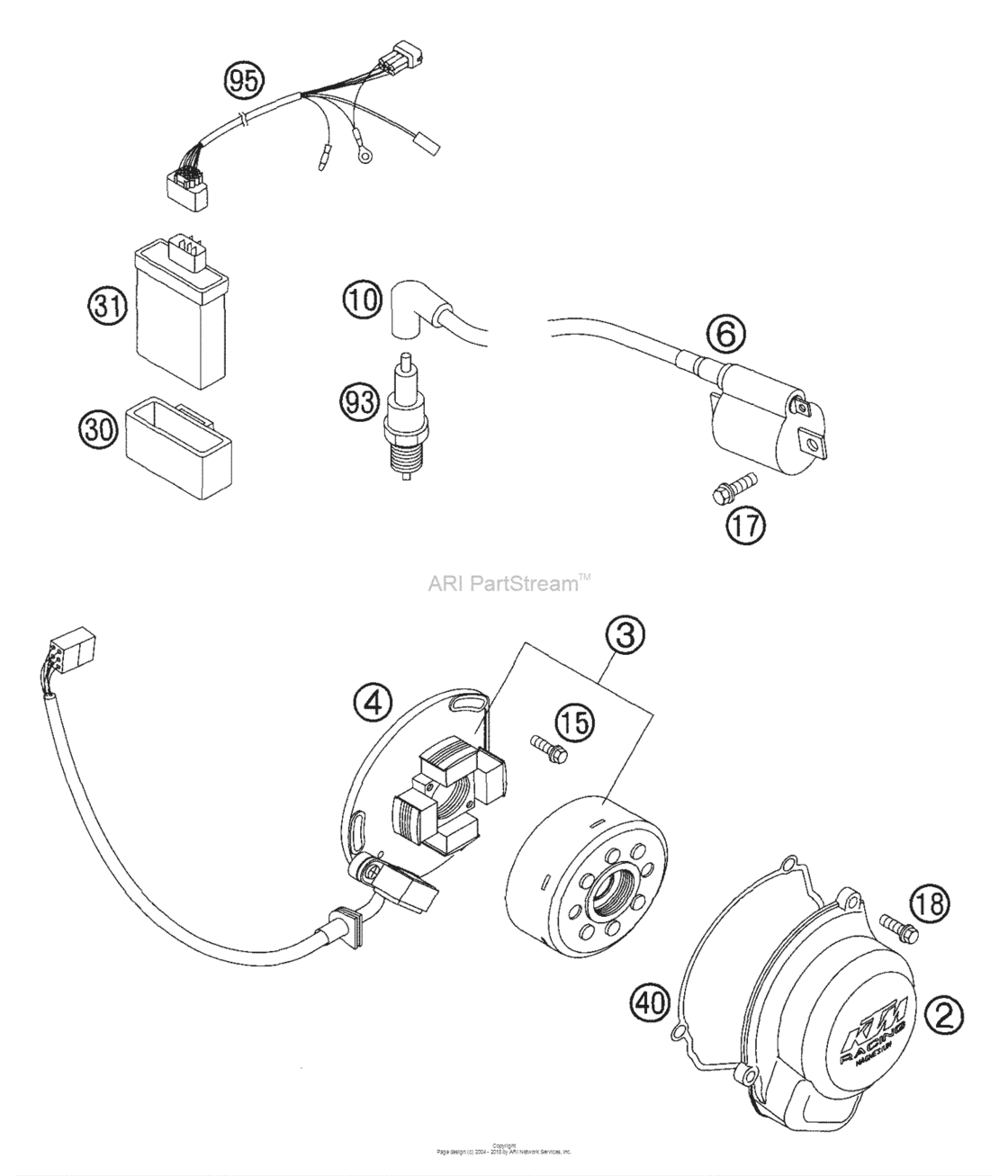

Ignition System Diagram KTM 85 85 SX
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
47030002000 Ignition cover 85 sx 2003TX30 |
47030002000 |
US $87.21 |
||
|
3
|
3
46139002100 Ignition cpl. 65 sx 2003TX30 |
46139002100 |
US $385.68 |
||
| replacement | |||||
|
3
|
3
46139005000 Rotor 65 sx 2003TX30 |
46139005000 |
US $83.05 |
||
|
4
|
4
46139004000 Stator 65/85 sx 2003TX30 |
46139004000 |
US $219.01 |
||
|
6
|
6
46139006100 Ignition coil cpl. 65 sx 2003TX30 |
46139006100 |
US $37.18 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.04TX30 |
47039090000 |
US $24.26 |
||
|
15
|
15
0015050163 Hh Collar Screw M 5X16 Ws=8TX30 |
0015050163 |
US $1.31 |
||
|
17
|
17
0015060163 Hh Collar Screw M 6X16 Ws=8TX30 |
0015060163 |
US $2.23 |
||
|
18
|
18
0015060203
Hh Collar Screw M 6X20 Ws=8
TX30 |
0015060203 |
— | ||
| replacement | |||||
|
18
|
18
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
30
|
30
46139030000 Rubber br. digi.box 65sx 2003TX30 |
46139030000 |
US $5.61 |
||
|
31
|
31
47039031000 Cdi unit 85 sx 2003TX30 |
47039031000 |
US $184.43 |
||
|
40
|
40
47030040000 Ignition cover gasket 85 sx 03TX30 |
47030040000 |
US $6.14 |
||
|
93
|
93
47039093000 Spark plug ngk br10 ecmvxTX30 |
47039093000 |
US $20.81 |
||
|
95
|
95
46139095000 Wiring harness 65 sx 2003TX30 |
46139095000 |
US $69.26 |
||
