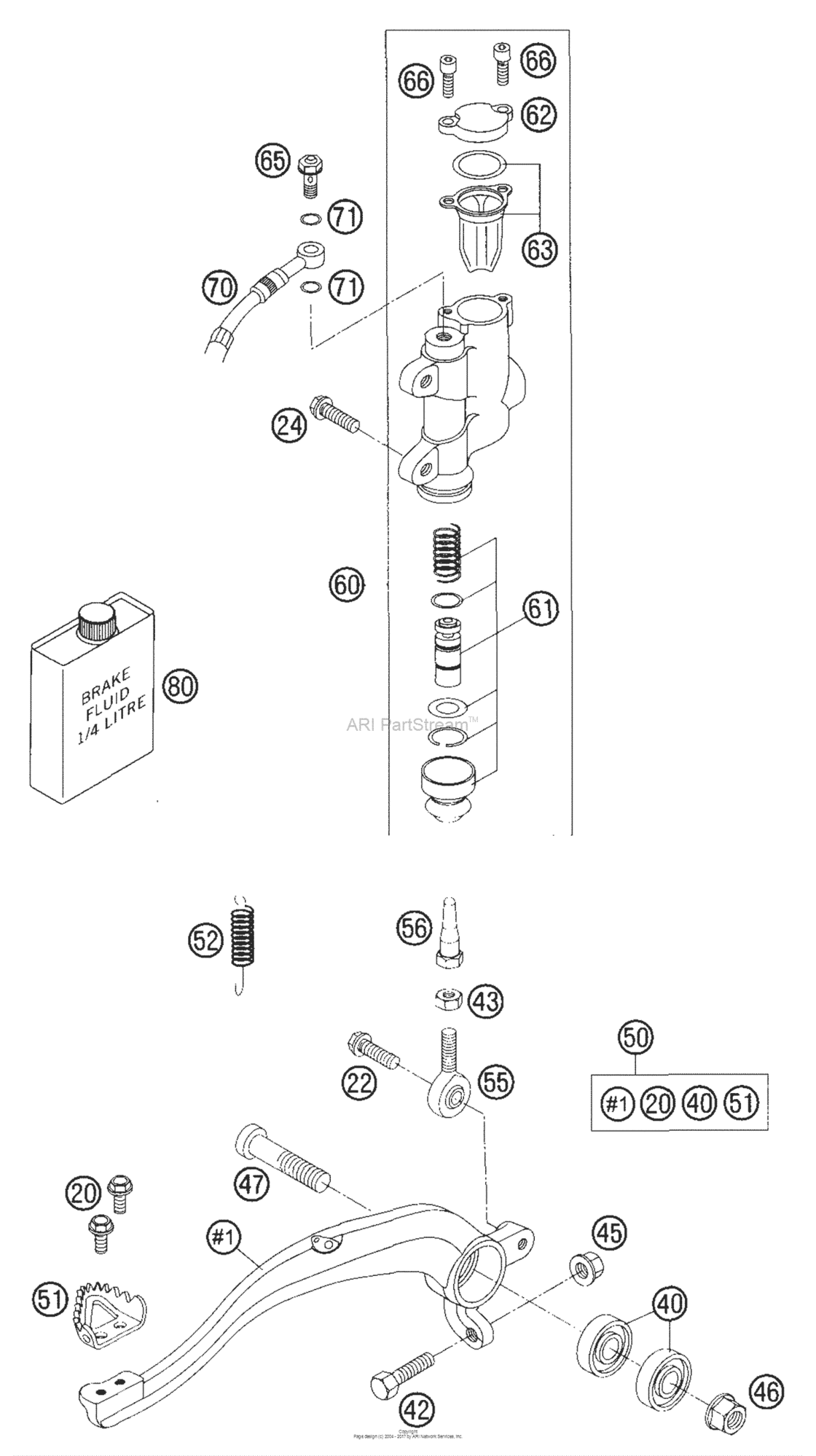

Rear Brake Control Diagram KTM 85 85 SX
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20
|
20
0015050123
Hh collar screw m 5x12 ws=8
TX30 |
0015050123 |
— | ||
| replacement | |||||
|
20
|
20
0025050126 Hh collar screw m5x12 tx30TX30 |
0025050126 |
US $3.38 |
||
|
22
|
22
0015060203
Hh Collar Screw M 6X20 Ws=8
TX30 |
0015060203 |
— | ||
| replacement | |||||
|
22
|
22
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
24
|
24
0015060123
Hh Collar Screw M 6X12 Ws=8
TX30 |
0015060123 |
— | ||
| replacement | |||||
|
24
|
24
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
||
|
40
|
40
0625060002 Ball bearing skf 6000-2rs1TX30 |
0625060002 |
US $10.85 |
||
|
42
|
42
59001037000 Special screw m8x26 ws=10TX30 |
59001037000 |
US $2.09 |
||
|
43
|
43
0934060003 Hexagon Nut Din0934-M 6TX30 |
0934060003 |
US $0.43 |
||
|
45
|
45
46030045000 Collar nut m8 ws=10TX30 |
46030045000 |
US $6.94 |
||
|
46
|
46
54630044000 Collar nut m10 ws=13TX30 |
54630044000 |
US $2.16 |
||
|
47
|
47
0912100406
Ah screw din6912 m10x40 10.9
TX30 |
0912100406 |
— | ||
| replacement | |||||
|
47
|
47
0032100406S Ah-collar screw m10x40 isa45TX30 |
0032100406S |
US $3.04 |
||
|
50
|
50
47013050044 Foot brake lever cpl. 85 sx 03TX30 |
47013050044 |
US $123.27 |
||
|
51
|
51
54813051000 Step plate for brake leverTX30 |
54813051000 |
US $8.36 |
||
|
52
|
52
54603062000
Return spring for brake lever
TX30 |
54603062000 |
— | ||
| replacement | |||||
|
52
|
52
54603062100 Return Spring For Brake LeverTX30 |
54603062100 |
US $7.14 |
||
|
55
|
55
54813055000
Swivel head ka6 03
TX30 |
54813055000 |
— | ||
| replacement | |||||
|
55
|
55
54813055100 Swivel Head Cmp6TX30 |
54813055100 |
US $25.18 |
||
|
56
|
56
47013056000 Pressure rod 85 sx 2003TX30 |
47013056000 |
US $12.60 |
||
|
60
|
60
47013060200 Foot brake cyl.r. cpl. d=11 05TX30 |
47013060200 |
US $114.38 |
||
|
60
|
60
47013060300 Foot brake cyl.r. cpl. d=12 05TX30 |
47013060300 |
US $204.71 |
||
| replacement | |||||
|
60
|
60
4701306030001S Foot Brake Cyl. Rear Cpl. D=12TX30 |
4701306030001S |
US $193.68 |
||
|
61
|
61
47013061000 Rep. set piston rear d=11 2003TX30 |
47013061000 |
US $46.16 |
||
|
61
|
61
47013061100 Rep. set piston rear d=12 2004TX30 |
47013061100 |
US $68.73 |
||
|
62
|
62
47013062000 Cylinder cover rear 85 sx 03TX30 |
47013062000 |
US $8.60 |
||
|
63
|
63
47013063000 Gasket cylinder cover rear 03TX30 |
47013063000 |
US $11.07 |
||
|
65
|
65
47013025000 Hollow screw brake cylinder 03TX30 |
47013025000 |
US $12.46 |
||
|
66
|
66
0912040103 Ah.screw din0912-m 4x10TX30 |
0912040103 |
US $1.22 |
||
|
70
|
70
47013070000 Brake hose rear 85 sx 03TX30 |
47013070000 |
US $94.06 |
||
|
71
|
71
0770080019 O-ring 8,00x1,00 formulaTX30 |
0770080019 |
US $2.64 |
||
|
80
|
80
306054
Brake fluid dot 4.0
TX30 |
306054 |
— | ||
