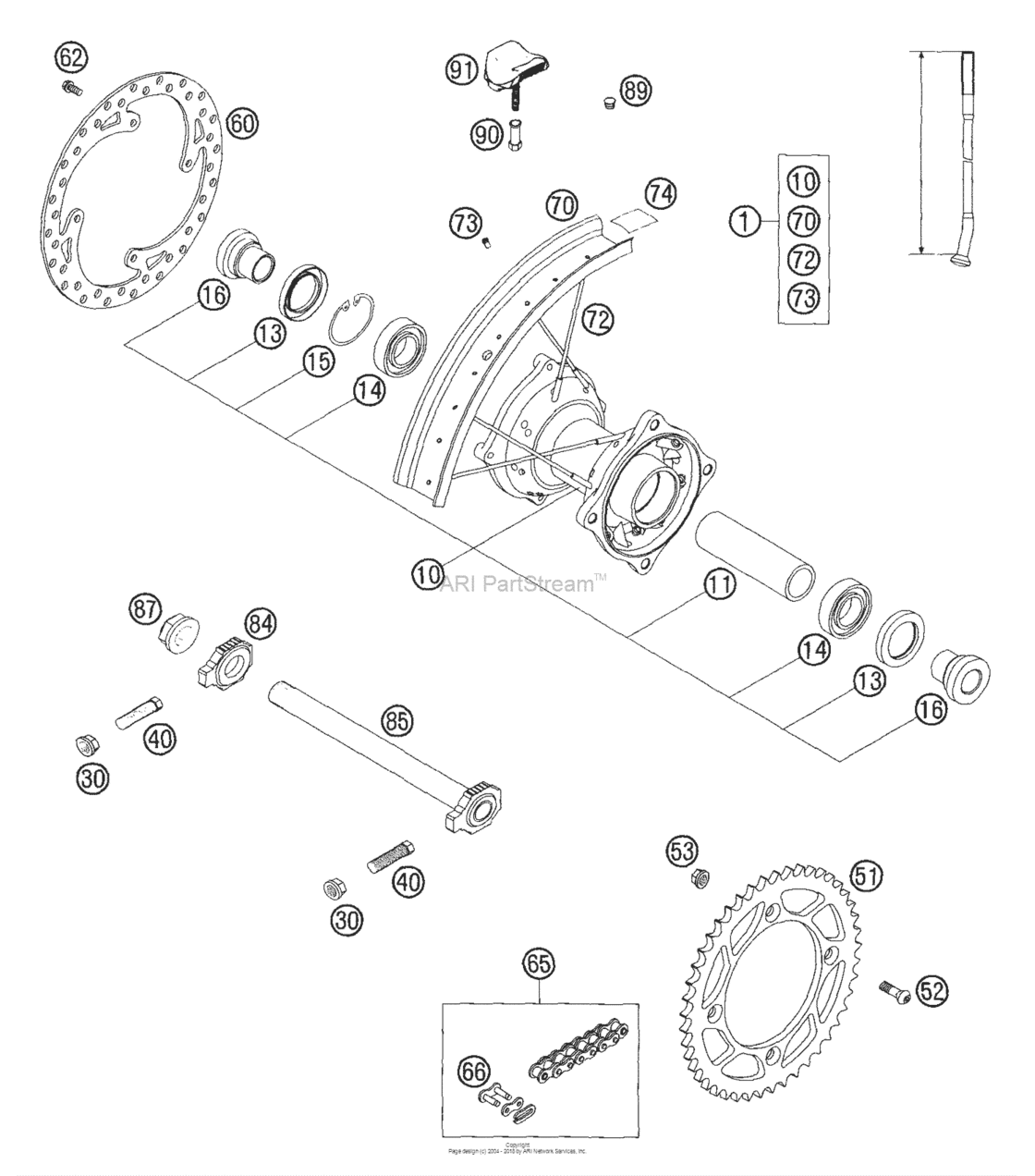

Rear Wheel Diagram KTM 85 85 SX
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47010001044 Rear wheel sp 85 sx 14" 03TX30 |
47010001044 |
US $633.37 |
||
|
1
|
1
47010001144 Rear wheel sp 85 sx 15" 03TX30 |
47010001144 |
US $702.78 |
||
|
1
|
1
47010001244
Rear wheel sp 85 sx 16" 03
TX30 |
47010001244 |
— | ||
|
10
|
10
4701001004496
Rear wheel hub cpl. 85 sx 03
TX30 |
4701001004496 |
— | ||
|
11
|
11
47010011000 Bearing spacer tube 85 sx 03TX30 |
47010011000 |
US $18.36 |
||
|
13
|
13
0760324771 Shaft Seal Ring 32X47X7 BslTX30 |
0760324771 |
US $17.20 |
||
|
14
|
14
0625060058 Gr.ball bear.6005 ddu2cg23s6nmTX30 |
0625060058 |
US $23.17 |
||
|
15
|
15
0472047175 Circlip Din0472-47X1,75TX30 |
0472047175 |
US $3.89 |
||
|
16
|
16
54610016000
Bushing For Hub 08
TX30 |
54610016000 |
— | ||
| replacement | |||||
|
16
|
16
78010016000 Bushing for hub 08TX30 |
78010016000 |
US $29.68 |
||
|
30
|
30
58414030000 Hh collar nut m10x1,25 ws=13TX30 |
58414030000 |
US $2.60 |
||
|
40
|
40
50304040000
Screw M10X1,25X50 Ws=10
TX30 |
50304040000 |
— | ||
| replacement | |||||
|
40
|
40
50304040100 Screw M10X1,25X50 Ws=10TX30 |
50304040100 |
US $6.61 |
||
|
51
|
51
47010051044 Rear sprocket 44-t 85 sx 03TX30 |
47010051044 |
US $71.28 |
||
|
51
|
51
47010051045 Rear sprocket 45-t 85 sx 03TX30 |
47010051045 |
US $71.28 |
||
|
51
|
51
47010051046 Rear sprocket 46-t 85 sx 03TX30 |
47010051046 |
US $71.28 |
||
|
51
|
51
47010051047 Rear sprocket 47-t 85 sx 03TX30 |
47010051047 |
US $71.28 |
||
|
51
|
51
47010051048 Rear sprocket 48-t 85 sx 03TX30 |
47010051048 |
US $71.28 |
||
|
51
|
51
47010051049 Rear sprocket 49-t 85 sx 03TX30 |
47010051049 |
US $71.28 |
||
|
51
|
51
47010051050 Rear sprocket 50-t 85 sx 03TX30 |
47010051050 |
US $71.28 |
||
|
52
|
52
54510052100
Counter-Sunk Screw Isa45 M8X26
TX30 |
54510052100 |
— | ||
| replacement | |||||
|
52
|
52
0019080266S Counter-sunk screw isa45 m8x26TX30 |
0019080266S |
US $2.23 |
||
|
53
|
53
54310086200 Self Locking Nut M8 10.9TX30 |
54310086200 |
US $1.56 |
||
|
60
|
60
47010060000
Brake disc rear d=200mm 03
TX30 |
47010060000 |
— | ||
| replacement | |||||
|
60
|
60
47010060400 Brake disc rear d=201,5mm 09TX30 |
47010060400 |
US $107.36 |
||
|
62
|
62
59009062016 Special screw m6x16 ws=8 10.9TX30 |
59009062016 |
US $1.09 |
||
|
65
|
65
47010165124 Chain 124 rolls 85 sxTX30 |
47010165124 |
US $101 |
||
|
66
|
66
47010166000 Connecting link 85 sxTX30 |
47010166000 |
US $7.62 |
||
|
70
|
70
47010070000 Rim rear al4 14x1,60-32 03TX30 |
47010070000 |
US $267.31 |
||
|
70
|
70
47010070100
Rim rear al4 15x1,60-32 03
TX30 |
47010070100 |
— | ||
|
70
|
70
47010070200 Rim rear al4 16x1,85-32 03TX30 |
47010070200 |
US $318.14 |
||
|
72
|
72
47010072148
Spoke Rear 14 4/3,5/4-148 07
TX30 |
47010072148 |
— | ||
| replacement | |||||
|
72
|
72
47010074148 Spoke rear 14" 4/3,5/4-148 07TX30 |
47010074148 |
US $3.35 |
||
|
72
|
72
47010072162 Spoke rear 15" 4/3,5/4-162 03TX30 |
47010072162 |
US $2.96 |
||
|
72
|
72
47010072171
Spoke rear 16" 4/3,5/4-171 03
TX30 |
47010072171 |
— | ||
| replacement | |||||
|
72
|
72
47010074171 Spoke rear 16"4/3,5/4-171 07TX30 |
47010074171 |
US $3.83 |
||
|
73
|
73
50309072000
Spoke Nipple Quadrax M4,5
TX30 |
50309072000 |
— | ||
| replacement | |||||
|
73
|
73
81210072000 Spoke nipple quadrax m4,5TX30 |
81210072000 |
US $2.79 |
||
|
74
|
74
47010073000 Rim band 85 sx 14" 2003TX30 |
47010073000 |
US $6.49 |
||
|
74
|
74
47010073100 Rim band 85 sx 15" 2003TX30 |
47010073100 |
US $6.21 |
||
|
74
|
74
47010073200 Rim band 85 sx 16" 2003TX30 |
47010073200 |
US $6.31 |
||
|
84
|
84
50310084000 Chain tensioner r/s 2000TX30 |
50310084000 |
US $18.45 |
||
|
85
|
85
47010085044 Axle rear cpl. 85 sx 2003TX30 |
47010085044 |
US $64.94 |
||
|
87
|
87
50310099000 Hexagon Nut M20X1,5 '98TX30 |
50310099000 |
US $19.04 |
||
|
89
|
89
55003135000 Plug For RimTX30 |
55003135000 |
US $1.02 |
||
|
90
|
90
50310090050 Nut for wheel holder '96TX30 |
50310090050 |
US $4.01 |
||
| replacement | |||||
|
90
|
90
77110090050 Nut For Wheel HolderTX30 |
77110090050 |
US $3.60 |
||
|
91
|
91
51009100100 Rim Lock 1,60TX30 |
51009100100 |
US $20.55 |
||
| replacement | |||||
|
91
|
91
78109090000 Rim Lock 1,60TX30 |
78109090000 |
US $20.43 |
||
|
91
|
91
51010100100 Rim lock vm2 (1,85") mxTX30 |
51010100100 |
US $24.46 |
||
| replacement | |||||
|
91
|
91
70010090000 RIM LOCK 1,85"TX30 |
70010090000 |
US $19.96 |
||
