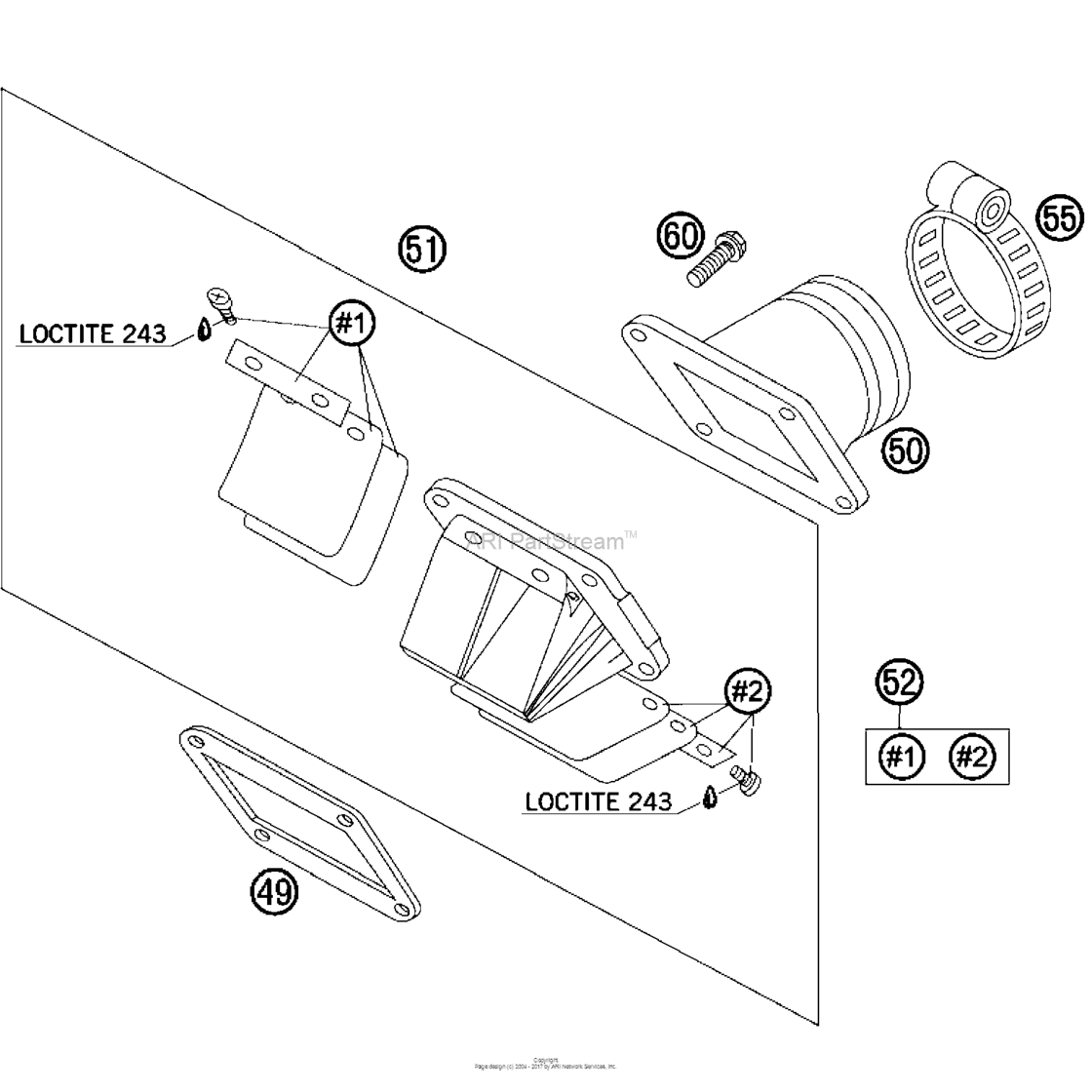

Reed Valve Case Diagram KTM 85 85 SX
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
49
|
49
47030049000 Gasket for intake flange 85 sxWS=8 |
47030049000 |
US $2.89 |
||
|
50
|
50
47030050000
Intake Flange 85 Sx 2009
85 SX 2003 |
47030050000 |
— | ||
| replacement | |||||
|
50
|
50
47030050100 Intake flange 85 sx 200985 SX 2003 |
47030050100 |
US $85.44 |
||
|
51
|
51
47030051044
Reed valve assy cpl.85 sx 2003
85 SX 2003 |
47030051044 |
— | ||
| replacement | |||||
|
51
|
51
47030051144 Reed valve assy cpl.85 sx 200985 SX 2003 |
47030051144 |
US $213.50 |
||
|
52
|
52
47030052004 Reed valve cpl. 85 sx 200385 SX 2003 |
47030052004 |
US $123.62 |
||
|
55
|
55
51230061000 Clamp 40/12 gemi85 SX 2003 |
51230061000 |
US $6.04 |
||
|
60
|
60
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
60
|
60
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
