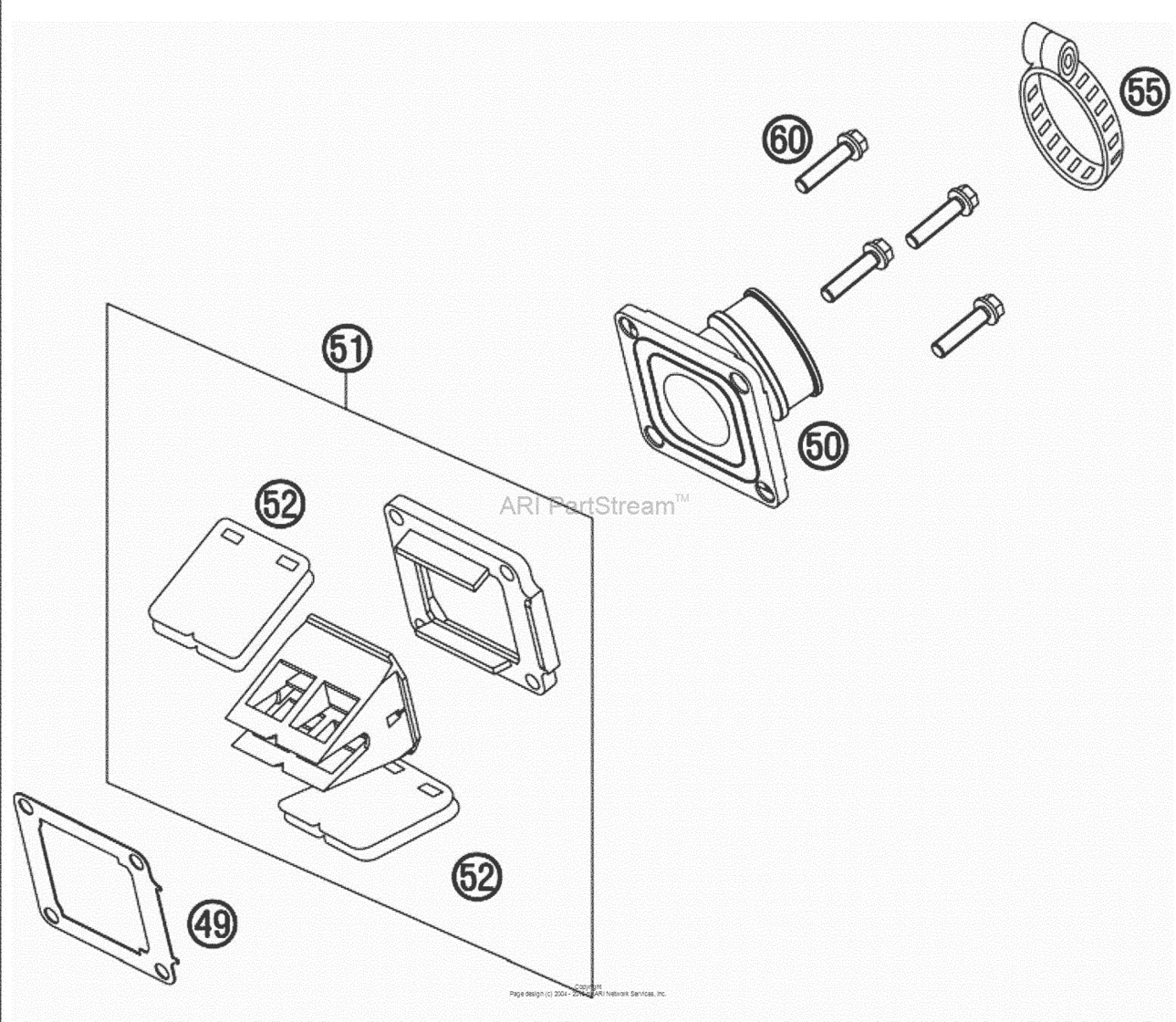

Reed Valve Case Diagram KTM 85 85 SX
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
49
|
49
47030049000 Gasket for intake flange 85 sxWS=8 |
47030049000 |
US $2.89 |
||
|
50
|
50
47030050100 Intake flange 85 sx 20092009 |
47030050100 |
US $85.44 |
||
|
51
|
51
47030051144 Reed valve assy cpl.85 sx 20092009 |
47030051144 |
US $213.50 |
||
|
52
|
52
47030052144 Reed valve cpl. 85 sx 20092009 |
47030052144 |
US $113.39 |
||
|
55
|
55
51230061000 Clamp 40/12 gemi2009 |
51230061000 |
US $6.04 |
||
|
60
|
60
0025060253
Hh Collar Screw W M6X 25
TX30 |
0025060253 |
— |
