Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 47034001000 Shift fork 5th/6th gear 2003 2003	47034001000	US $66.11
2	2 47034002000 Shift fork 2nd/3rd gear 2003 2003	47034002000	US $72.11
3	3 47034003000 Shift fork 1st/4th gear 2003 2003	47034003000	US $72.11
5	5 47034005044 Shifting shaft cpl. 85 sx 2003 2003	47034005044	US $119.73
9	9 46034009000 Pressure spring slider plate 2003	46034009000	US $2.35
10	10 47034091000 Washer 15x20x0,5 2003	47034091000	US $4.45
11	11 0625069020 Ball bearing 6902 15x28x7 2003	0625069020	US $22.76
12	12 47034012000 Shift roller 85 sx 2003 2003	47034012000	US $82.93
13	13 47034092000 Washer 25x32x0,5 2003	47034092000	US $4.45
14	14 46034014000 Return spring 2003	46034014000	US $4.08
15	15 47034015000 Shift location drum 85 sx 2003 2003	47034015000	US $79.85
16	16 0025060256 Hh collar screw m6x25 tx30 TX30	0025060256	US $2.45
17	17 0402061200 Needle roller din5402 nrb 6x12 TX30	0402061200	US $2.75
18	18 46034019052 Spring shift rail 2001 2001	46034019052	US $0.71
19	19 47034019000 Shifting rail 85 sx 2003 2003	47034019000	US $8.48
20	20 46034020100 Shift rail 2001 2001	46034020100	US $8.72
21	21 0625618050 Ball bearing 61805 c3 2001	0625618050	US $39.98
23	23 46034023100 Locking lever spring 2001 2001	46034023100	US $1.63
24	24 46034024100 Locking lever cpl. 65 sx 2002 2002	46034024100	US $22.66
25	25 0025080206 Hh collar screw m8x20 tx40 TX40	0025080206	US $2.09
26	26 47034052000 Sleeve Locking Lever As Required	47034052000	US $4.90
29	29 47034029000 Arrester for spring 2003 2003	47034029000	US $2.13
30	30 0933060205 Hh screw din933 m6x20 10.9 2003	0933060205	US $0.66
31	31 47034031000 Shift lever 85 sx 2003 2003	47034031000	US $73.61
32	32 0760142460 Shaft seal ring 14x24x6 b 2003	0760142460	US $11.70
33	33 54632095000 Needle bear.hk 1412 14x20x12 2003	54632095000	US $7.60
34	34 47033043000 Stop disc 15x25x0,5 2003	47033043000	US $0.39
41	41 50233041000 Pair of washers m 6 nordlock 2003	50233041000	US $3.25
50	50 50232050001 Steel washer 6,4x17x3 2003	50232050001	US $4.86

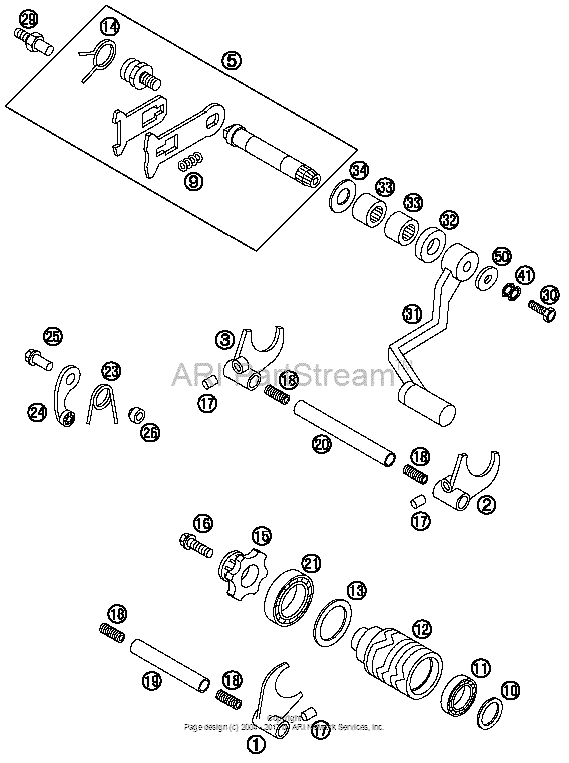

Shift Mechanism Diagram KTM 85 85 SX US/EU 18108335-940786

Shift Mechanism Diagram KTM 85 85 SX US/EU 18108335-940786
