Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 47032001244 Outer Clutch Hub Cpl. 85 Sx 13 As Required	47032001244	US $318.50
2	2 47032002000 Inner clutch hub 85 sx 2003 2003	47032002000	US $149.57
3	3 47032003000 Pressure cap 85 sx 2003 2003	47032003000	US $75.04
4	4 47032001100 Out. clutch hub loose 85 sx 07 2003	47032001100	US $74.60
5	5 47032005000 Clutch spring 85 sx 2003 2003	47032005000	US $1.77
6	6 47032006000 Spring retain. 5,1x10,2x15x2,5 2003	47032006000	US $10.95
7	7 0015050203 Hh Collar Screw M5X20 Tx30 2003	0015050203	—
	replacement
7	7 0025050206 Hh collar screw m5x20 tx30 2003	0025050206	US $1.33
8	8 47032008000 Rivet din0661 5x14 2003	47032008000	US $2.24
10	10 47032010000 Steel disc 85 sx 03 2003	47032010000	US $7.29
11	11 47032011000 Lining disc 85 sx 2003 2003	47032011000	US $24.62
15	15 47032015000 Bushing 20x25x20,5 2003	47032015000	US $22.15
16	16 0405252910 Needle bear k 25x29x10 2003	0405252910	US $9.16
17	17 47032017000 Support washer 18,5x35x1,5 03 2003	47032017000	US $3.11
20	20 47032020000 Stop disc 20x32x2 2003	47032020000	US $5.20
26	26 47032026000 Damping element 85 sx 2003 2003	47032026000	US $1.92
28	28 47032028000 Retaining plate 85 sx 2003 2003	47032028000	US $9.55
54	54 47032054000 Pressure plate 85 sx 2003 2003	47032054000	US $34.05
58	58 47032058000 Push rod 85 sx 2003 2003	47032058000	US $12.95
61	61 47132061044 Output Cylinder Cpl 2003	47132061044	US $226.29
62	62 47132066000 Piston Cpl 2003	47132066000	US $56.25
64	64 47132064000 Bleeder Screw M8X1 2003	47132064000	US $13.87
	replacement
64	64 47013085000 Bleeder screw m8x1 2003	47013085000	US $9.37
65	65 0770031018 O-Ring 31,47X1,78 2003	0770031018	US $1.28
68	68 47032068000 Ball d=6mm 85 sx 2003 2003	47032068000	US $0.27
70	70 0015060163 Hh Collar Screw M 6X16 Ws=8 2003	0015060163	US $2.23
71	71 0015060303 Hh Collar Screw M6X30 Tx30 2003	0015060303	—
	replacement
71	71 0025060306 Hh collar screw m6x30 tx30 2003	0025060306	US $3.96
98	98 47032098000 Axial needle bearing 85 sx 03 2003	47032098000	US $11.05
99	99 47032010010 Clutch Kit 105/85 Sx 03-14 03-14	47032010010	US $199.43

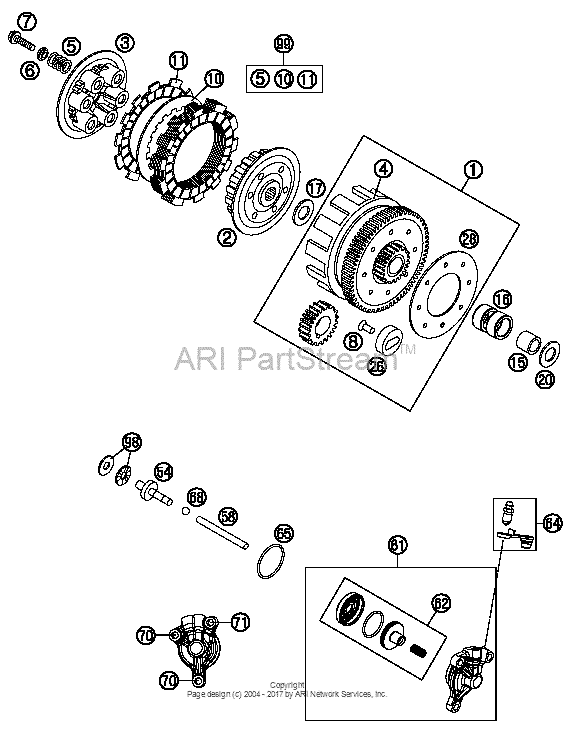

Clutch Diagram KTM 85 85 SX US/EU 18108352-940788

Clutch Diagram KTM 85 85 SX US/EU 18108352-940788
