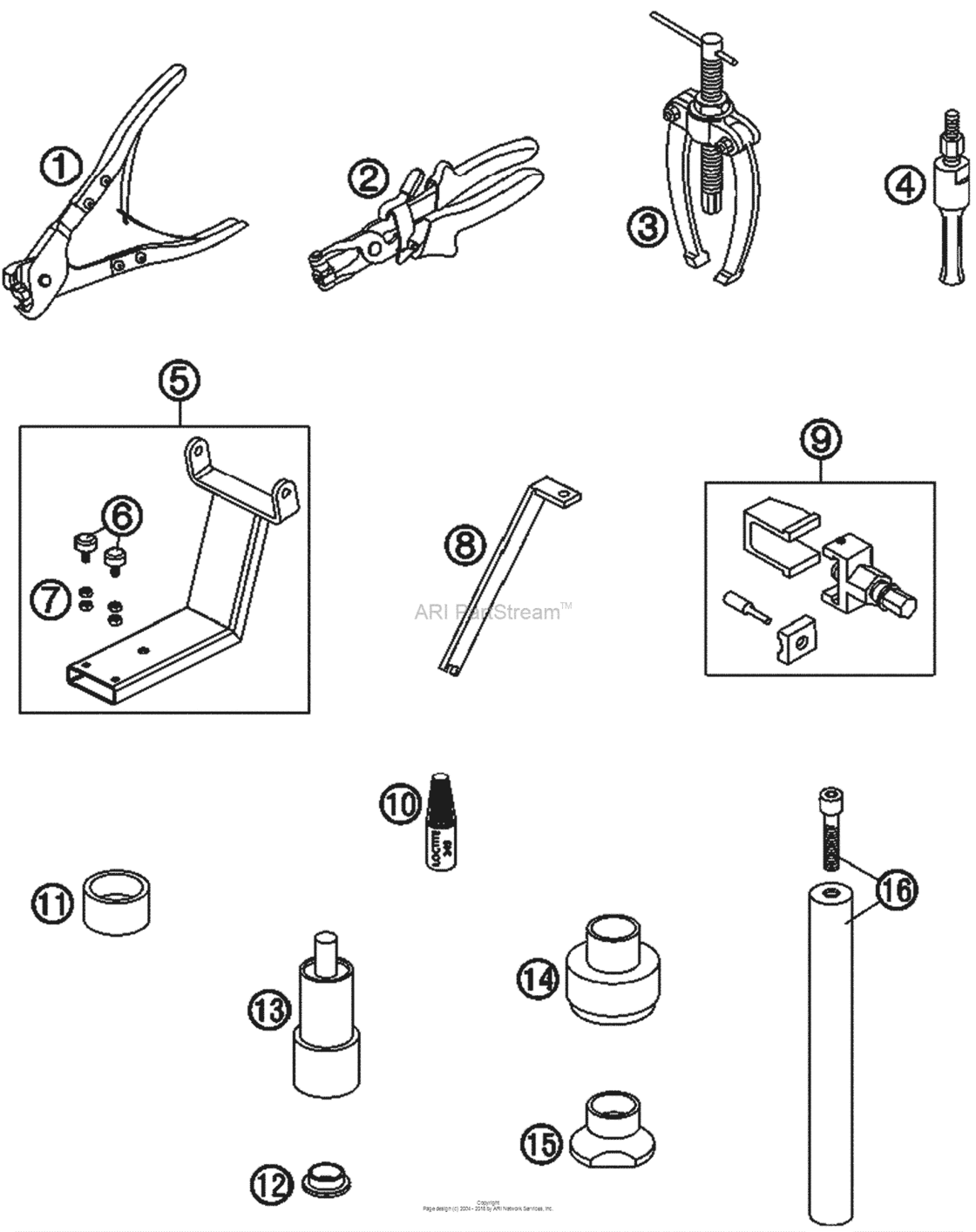

Special Tools Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60029057000 Pliers f. var.one-ear clamp 032005 |
60029057000 |
US $172.13 |
||
|
2
|
2
60029057100 Pliers f. clamp 032005 |
60029057100 |
US $246.28 |
||
|
3
|
3
15112017000 Bushing extractor2005 |
15112017000 |
US $144.77 |
||
|
4
|
4
60029018000 Intern.bear.puller 28 mm2005 |
60029018000 |
US $153.17 |
||
|
5
|
5
60029055100 Attachment wheeled jack 032005 |
60029055100 |
US $94.59 |
||
|
6
|
6
58303070000 Stop rubber m82005 |
58303070000 |
US $7.23 |
||
|
7
|
7
0934080003 Hexagon Nut Din0934-M 82005 |
0934080003 |
US $3.26 |
||
|
8
|
8
60029055000 Holder center stand 032005 |
60029055000 |
US $34.27 |
||
|
9
|
9
60029020000 Rivet tool 032005 |
60029020000 |
US $179.30 |
||
|
10
|
10
6899785 Loctite 243 Blue 6Ccm2005 |
6899785 |
US $40.61 |
||
|
11
|
11
60029056000 Anvil dolly 032005 |
60029056000 |
US $39.53 |
||
|
12
|
12
60010013000 Spacer bush. rear wheel r/s 032005 |
60010013000 |
US $11.25 |
||
|
13
|
13
58429086000 Press. tool f. link bear. lc42005 |
58429086000 |
US $38.06 |
||
|
14
|
14
58429091000 Mount.tool steer.head bear.lc42005 |
58429091000 |
US $26.45 |
||
|
15
|
15
58429092000 Dismount. tool f. bearings lc42005 |
58429092000 |
US $27.59 |
||
|
16
|
16
58429089000 Holding tool chassis lc42005 |
58429089000 |
US $28.34 |
