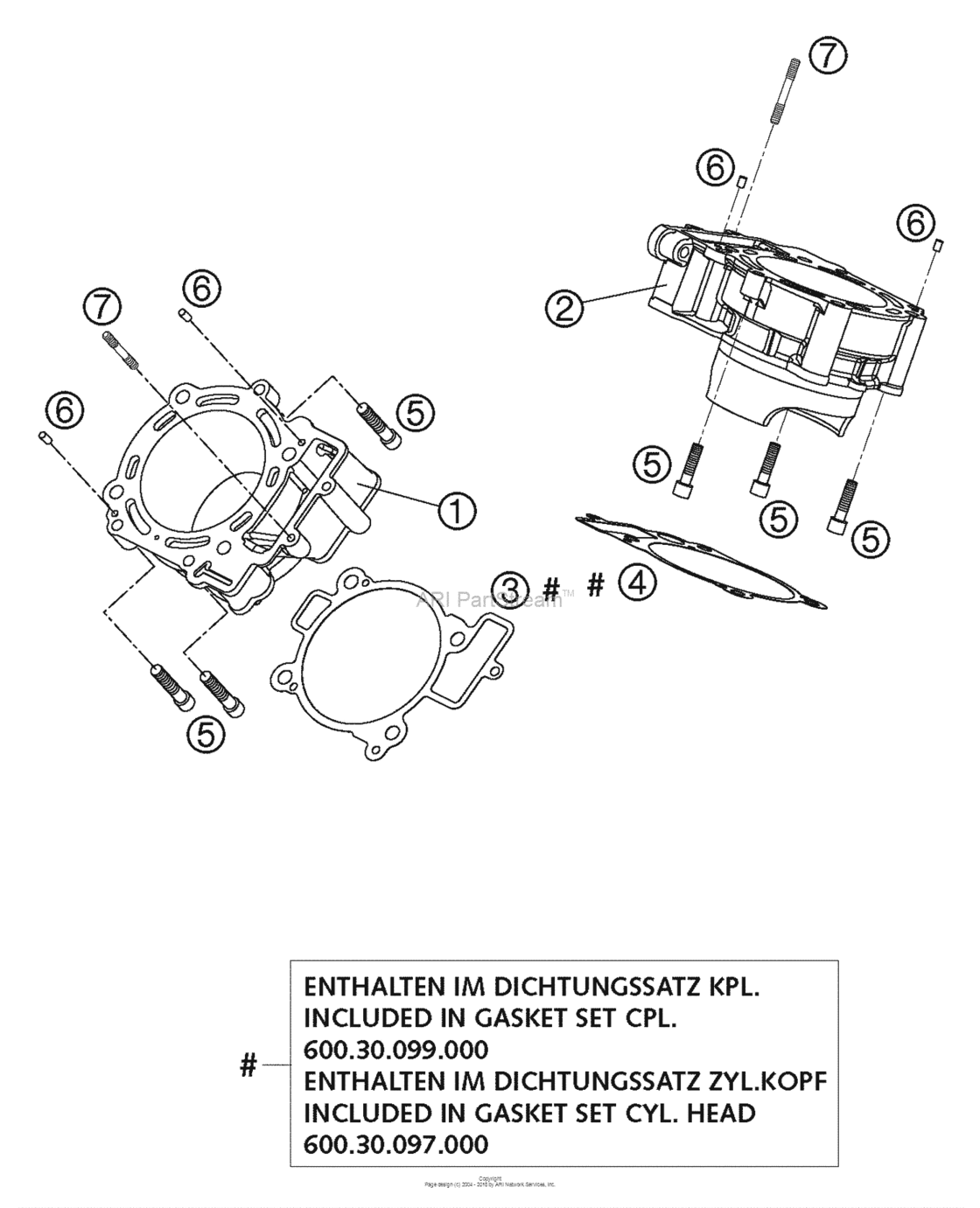

Cylinder Diagram KTM 950 950 Adventure
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60030005000
Cylinder And Piston Front 03
FOR BRAKE HOSE |
60030005000 |
— | ||
| replacement | |||||
|
1
|
1
60030038000 Cylinder and piston front 03FOR BRAKE HOSE |
60030038000 |
US $1,017.09 |
||
|
2
|
2
60030105000 Cylinder rear d=100 03FOR BRAKE HOSE |
60030105000 |
US $492.08 |
||
|
3
|
3
60030035000 Cylinder-base gasket fr 0,35mmFOR BRAKE HOSE |
60030035000 |
US $25.91 |
||
|
4
|
4
60030135000 Cylinder-base gasket rr 0,35mmFOR BRAKE HOSE |
60030135000 |
US $25.14 |
||
|
5
|
5
0912080353 Ah screw din0912-m 8x35FOR BRAKE HOSE |
0912080353 |
US $1.65 |
||
|
6
|
6
0474050100 Grooved pin din1474 5x10FOR BRAKE HOSE |
0474050100 |
US $2.60 |
||
|
7
|
7
60030043020 Stud m6x47 03FOR BRAKE HOSE |
60030043020 |
US $3.33 |
||
