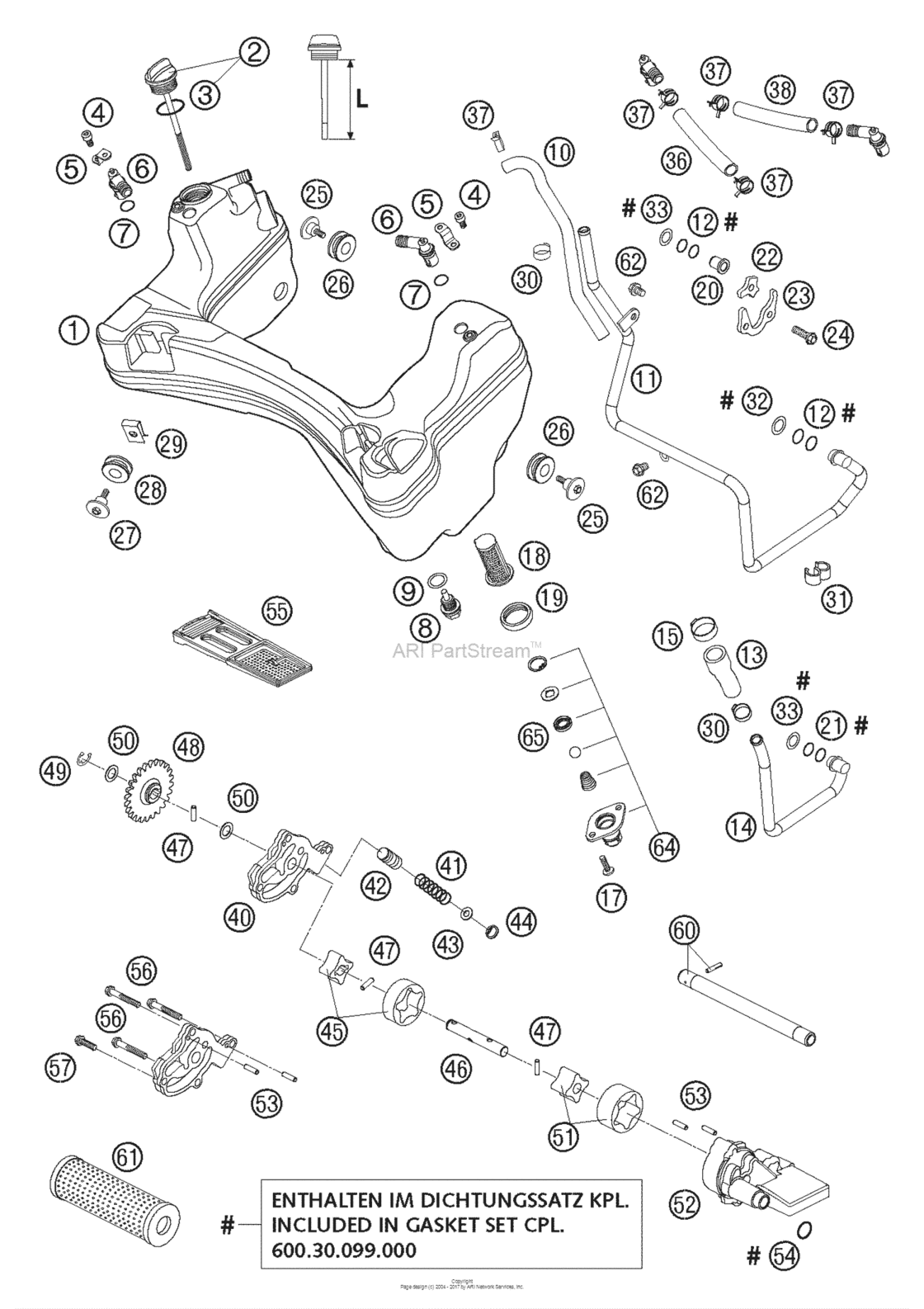

Lubricating System Diagram KTM 950 950 Adventure
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60038081000
Oil Tank Cpl
FOR PLASTIC D=5X18 |
60038081000 |
— | ||
| replacement | |||||
|
1
|
1
60038081133 Oil tank cpl.FOR PLASTIC D=5X18 |
60038081133 |
US $674.56 |
||
|
2
|
2
60030020000
Oil dipstick cpl. l=100mm 03
FOR PLASTIC D=5X18 |
60030020000 |
— | ||
| replacement | |||||
|
2
|
2
60030020100 Oil dipstick cpl. w. o-ring 05FOR PLASTIC D=5X18 |
60030020100 |
US $9.84 |
||
|
3
|
3
0770191015 O-ring 19,00x3,00 nbrFOR PLASTIC D=5X18 |
0770191015 |
US $1.16 |
||
|
4
|
4
0912050103 Ah Screw Din0912-M 5X10FOR PLASTIC D=5X18 |
0912050103 |
US $0.54 |
||
|
5
|
5
60038082050
Bracket F. Efi-Plug
FOR PLASTIC D=5X18 |
60038082050 |
— | ||
| replacement | |||||
|
5
|
5
69006015050 Bracket f. efi-plugFOR PLASTIC D=5X18 |
69006015050 |
US $6.04 |
||
|
6
|
6
60038082000 Angle connector lc8 03FOR PLASTIC D=5X18 |
60038082000 |
US $16.81 |
||
|
7
|
7
0770080020 O-ring 8x2 siliconeFOR PLASTIC D=5X18 |
0770080020 |
US $0.66 |
||
|
8
|
8
58030021000
Oildrain Plug With Magnet
FOR PLASTIC D=5X18 |
58030021000 |
— | ||
| replacement | |||||
|
8
|
8
58030021100 Oildrain Plug With MagnetFOR PLASTIC D=5X18 |
58030021100 |
US $12.02 |
||
|
9
|
9
58038022000 Cu-Seal Ring Din7603-12X18X1,5FOR PLASTIC D=5X18 |
58038022000 |
US $1.97 |
||
|
10
|
10
60038061003
T-Connector W. Reduction Ring
FOR PLASTIC D=5X18 |
60038061003 |
— | ||
| replacement | |||||
|
10
|
10
60038064000 T-connector w. reduction ringFOR PLASTIC D=5X18 |
60038064000 |
US $93.01 |
||
|
11
|
11
60038061044 Oil pipe "b"FOR PLASTIC D=5X18 |
60038061044 |
US $57.44 |
||
|
12
|
12
0770090021 O-ring 9x2 vitonFOR PLASTIC D=5X18 |
0770090021 |
US $1.29 |
||
|
13
|
13
60038034000
Pre-Formed Hose 10X3,5
FOR PLASTIC D=5X18 |
60038034000 |
— | ||
| replacement | |||||
|
13
|
13
60038034100 Pre-formed hose 10x3,5FOR PLASTIC D=5X18 |
60038034100 |
US $15.90 |
||
|
14
|
14
60038060044 Oil pipe "a"FOR PLASTIC D=5X18 |
60038060044 |
US $66.23 |
||
|
15
|
15
00050270154 Variable One-Ear Clamp 25,6MmFOR PLASTIC D=5X18 |
00050270154 |
US $6.63 |
||
| replacement | |||||
|
15
|
15
00050256706 Variable one-ear clamp 25,6mmFOR PLASTIC D=5X18 |
00050256706 |
US $2.92 |
||
|
17
|
17
0015060163 Hh Collar Screw M 6X16 Ws=8FOR PLASTIC D=5X18 |
0015060163 |
US $2.23 |
||
|
18
|
18
60038017000 Oil screen finished 03FOR PLASTIC D=5X18 |
60038017000 |
US $11.08 |
||
|
19
|
19
60038018000 Gasket for oil filter hnbr 03FOR PLASTIC D=5X18 |
60038018000 |
US $7.55 |
||
|
20
|
20
60038024000 Plug 10mm lc8 03FOR PLASTIC D=5X18 |
60038024000 |
US $6.68 |
||
|
21
|
21
0770110021 O-ring 11x2 vitonFOR PLASTIC D=5X18 |
0770110021 |
US $2.60 |
||
|
22
|
22
60038037000 Retaining plate 2 lc8 03FOR PLASTIC D=5X18 |
60038037000 |
US $6.04 |
||
|
23
|
23
60038036000 Retaining plate 1 lc8 03FOR PLASTIC D=5X18 |
60038036000 |
US $7.40 |
||
|
24
|
24
0015060203
Hh Collar Screw M 6X20 Ws=8
FOR PLASTIC D=5X18 |
0015060203 |
— | ||
| replacement | |||||
|
24
|
24
0025060206 Hh collar screw m6x20 tx30FOR PLASTIC D=5X18 |
0025060206 |
US $1.97 |
||
|
25
|
25
60038083000 Screw oil tank fixing 03FOR PLASTIC D=5X18 |
60038083000 |
US $2.53 |
||
|
26
|
26
54605068000
Exhaust bracket rubber black
FOR PLASTIC D=5X18 |
54605068000 |
— | ||
| replacement | |||||
|
26
|
26
77205068000 Damp. Compon. BlackFOR PLASTIC D=5X18 |
77205068000 |
US $8.43 |
||
|
27
|
27
60035001000 Special screw m6x21 ws=8FOR PLASTIC D=5X18 |
60035001000 |
US $6.15 |
||
|
28
|
28
41001052000 Rubber Sleeve D=12MmFOR PLASTIC D=5X18 |
41001052000 |
US $5.46 |
||
|
29
|
29
54603048100 Range Change Metal Nut M6FOR PLASTIC D=5X18 |
54603048100 |
US $5.27 |
||
|
30
|
30
00050185154 Variable one-ear clamp 18,5mmFOR PLASTIC D=5X18 |
00050185154 |
US $2.86 |
||
|
31
|
31
60038039000 Distance holder 10/10 blackFOR PLASTIC D=5X18 |
60038039000 |
US $1.04 |
||
|
32
|
32
60038061050 Shim 10,5x13,8x0,6FOR PLASTIC D=5X18 |
60038061050 |
US $3.37 |
||
|
33
|
33
60038060150 Shim 12,5x15,8x0,6FOR PLASTIC D=5X18 |
60038060150 |
US $4.96 |
||
|
36
|
36
60038059130 Oil tank breathing hose r/sFOR PLASTIC D=5X18 |
60038059130 |
US $15.56 |
||
|
37
|
37
00049160121 Clamp std dn16FOR PLASTIC D=5X18 |
00049160121 |
US $1.05 |
||
|
38
|
38
60038059083 Oil tank breathing hose l/sFOR PLASTIC D=5X18 |
60038059083 |
US $11.87 |
||
|
40
|
40
60038010000
Pressure Pump Housing Cpl. 10
FOR PLASTIC D=5X18 |
60038010000 |
— | ||
| replacement | |||||
|
40
|
40
60038010133
Pressure pump housing cpl. 10
FOR PLASTIC D=5X18 |
60038010133 |
— | ||
|
41
|
41
60038026000
Control spring lc8 3,5 bar
FOR PLASTIC D=5X18 |
60038026000 |
— | ||
|
42
|
42
60038028000 Control piston lc8 03FOR PLASTIC D=5X18 |
60038028000 |
US $12.72 |
||
|
43
|
43
0988060121 Washer 6x12x1 hrc 40-45FOR PLASTIC D=5X18 |
0988060121 |
US $0.66 |
||
|
44
|
44
0472012010 Circlip din0472 j12FOR PLASTIC D=5X18 |
0472012010 |
US $0.20 |
||
|
45
|
45
60038011000 Rotor-set pressure pump 03FOR PLASTIC D=5X18 |
60038011000 |
US $56.97 |
||
|
46
|
46
60038002000 Oil pump shaft 03FOR PLASTIC D=5X18 |
60038002000 |
US $31.86 |
||
| replacement | |||||
|
46
|
46
60038002100 Oil Pump ShaftFOR PLASTIC D=5X18 |
60038002100 |
US $34.03 |
||
|
47
|
47
0402041580 Needle roller nrb 4x15,8 g2FOR PLASTIC D=5X18 |
0402041580 |
US $0.85 |
||
|
48
|
48
60038001024 Oil pump gear 24-t 03FOR PLASTIC D=5X18 |
60038001024 |
US $73.42 |
||
|
49
|
49
0799080000 Tab washer din6799 rs8FOR PLASTIC D=5X18 |
0799080000 |
US $0.63 |
||
|
50
|
50
60038007010 Washer 10x16x0,5 03FOR PLASTIC D=5X18 |
60038007010 |
US $0.39 |
||
|
51
|
51
60038009000 Rotor-set 19mm 03FOR PLASTIC D=5X18 |
60038009000 |
US $66.88 |
||
|
52
|
52
60038008000 Suction pump case 03FOR PLASTIC D=5X18 |
60038008000 |
US $99.86 |
||
|
53
|
53
0402040980 Needle Rol.din5402 Nrb 4X9,8FOR PLASTIC D=5X18 |
0402040980 |
US $1.77 |
||
|
54
|
54
0770133024 O-ring 13,3x2,4 vitonFOR PLASTIC D=5X18 |
0770133024 |
US $0.95 |
||
|
55
|
55
60038016000 Oil screen 03FOR PLASTIC D=5X18 |
60038016000 |
US $12.95 |
||
|
56
|
56
0015060403
Hh Collar Screw M6X40 Tx30
FOR PLASTIC D=5X18 |
0015060403 |
— | ||
| replacement | |||||
|
56
|
56
0025060406 Hh collar screw m6x40 tx30FOR PLASTIC D=5X18 |
0025060406 |
US $2.23 |
||
|
57
|
57
0015060253
Hh Collar Screw M6X25 Tx30
FOR PLASTIC D=5X18 |
0015060253 |
— | ||
| replacement | |||||
|
57
|
57
0025060256 Hh collar screw m6x25 tx30FOR PLASTIC D=5X18 |
0025060256 |
US $2.45 |
||
|
60
|
60
60030065000 Oil Injection Tube Gear 05FOR PLASTIC D=5X18 |
60030065000 |
US $34.68 |
||
| replacement | |||||
|
60
|
60
60030065100 Oil injection tube gear 05FOR PLASTIC D=5X18 |
60030065100 |
US $14.74 |
||
|
61
|
61
60038015000
Oil filter 03
FOR PLASTIC D=5X18 |
60038015000 |
— | ||
| replacement | |||||
|
61
|
61
61338015200 Oil FilterFOR PLASTIC D=5X18 |
61338015200 |
US $41.31 |
||
|
62
|
62
0015060103
Hh collar screw m 6x10 ws=8
FOR PLASTIC D=5X18 |
0015060103 |
— | ||
| replacement | |||||
|
62
|
62
0025060106 Hh collar screw m6x10 tx30FOR PLASTIC D=5X18 |
0025060106 |
US $1.58 |
||
|
64
|
64
60038060002 Oil Tank Valve CplFOR PLASTIC D=5X18 |
60038060002 |
US $92.85 |
||
| replacement | |||||
|
64
|
64
60038060102 Oil tank valve cpl.FOR PLASTIC D=5X18 |
60038060102 |
US $81.46 |
||
|
65
|
65
0760101842
Shaft Seal Ring 10X18X4 Bsl V
FOR PLASTIC D=5X18 |
0760101842 |
— | ||
| replacement | |||||
|
65
|
65
0760101844 Shaft Seal Ring 10X18X4 Bsl VFOR PLASTIC D=5X18 |
0760101844 |
US $9.96 |
||
